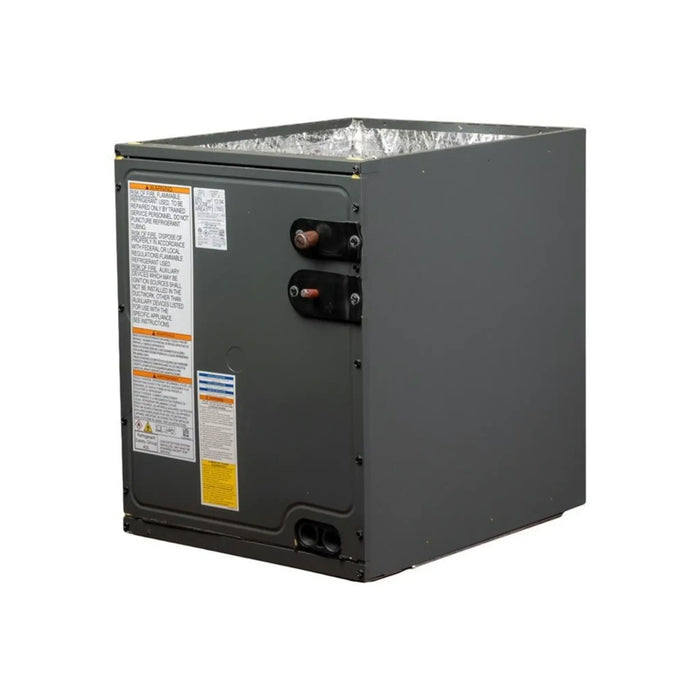

Goodman CAPTA2422A3

Goodman 2 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV

By Goodman | Model: CAPTA2422A3 | ID: 100068
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$704.00 + SHIPPING
Product Details

Goodman 2 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA2422A3

A central HVAC system is only as efficient as its evaporator coil — and the Goodman CAPTA Series delivers the performance, durability, and energy savings needed for modern comfort standards. Engineered with an all-aluminum coil, a factory-installed TXV, and a durable steel cabinet, this coil supports both air conditioning and heat pump systems. Designed for upflow or downflow installations, it offers outstanding flexibility for residential and light commercial applications.

Key Features

  • All-Aluminum Coil Design – Uses sine fins and grooved tubing to maximize surface area for improved heat transfer and corrosion resistance
  • Factory-Installed Internal TXV – Ensures precise refrigerant flow for consistent operation across varying load conditions
  • Versatile Upflow/Downflow Configuration – Compatible with both upflow and downflow setups, ideal for flexible installation requirements
  • Durable Galvanized and Embossed Cabinet – Provides protective housing with insulation to reduce air leakage and enhance efficiency
  • Advanced Condensate Management – Includes UV- and rust-resistant thermoplastic drain pan and foil-faced insulation to control moisture
  • Double Pressure Tested at the Factory – Each unit undergoes dual testing to ensure system integrity and reduce leak risk
  • R-32 Refrigerant Compatible – Fully compliant with Clean Air Act refrigerant updates, supporting greener HVAC systems
  • 10-Year Limited Parts Warranty – Covered under Goodman’s warranty program when properly installed and registered

Why Choose Goodman?

Goodman is a leading name in HVAC, trusted across North America for high-quality, competitively priced heating and cooling systems. Known for their low failure rates and strong warranties, Goodman coils are built to perform reliably for years. With the CAPTA Series, you’re choosing proven performance, installation flexibility, and long-term comfort assurance.

View More Coils

Specifications

Goodman 2 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA2422A3

Brand Goodman SKU CAPTA2422A3
Tonnage 2 Tons Weight 37 lbs
Manufacturer Goodman Replaces CAPTA2422A4
Product Features New Refrigerant Compliant Configuration Upflow / Downflow
Refrigerant R32 Liquid Line 3/8"
Suction Line 3/4" Style A-Coil
Certification ETL Listed, AHRI Certified Height 22"
Width 14" Depth 21"
Warranty 10 Years Parts with Online Registration
Warranty

Goodman 2 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA2422A3

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years
Documents

Goodman 2 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA2422A3

Installation Manual

Specification Sheets

Service Manual

Warranty Information
