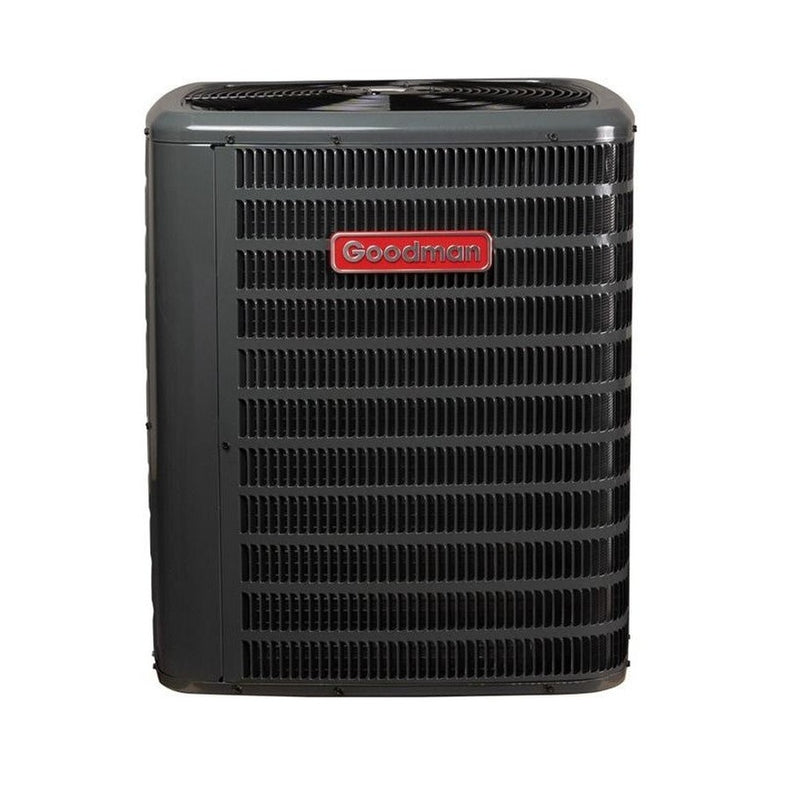

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.
- Heating Capacity Nominal: 24000 Btu/H
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 32.5 in
- Unit Width: 29 in
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 208/240 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Unit Weight: 160 lb
- Unit Depth: 29 in
-
Removable grille-style top design complies with UL 60335-2-40 standards
- Includes steel louver coil guard for added protection
- Constructed from heavy-gauge galvanized steel for durability
- Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
- Provides top and side maintenance access for easy servicing
- Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
-
Anchor bracket kits available for compliance with wind requirements
Product Features For Goodman 2 Ton Heat Pump Condenser GLZS4BA2410
-
High-efficiency compressor for optimal performance
-
SmartShift technology for quiet and reliable defrosting
-
Enhanced aluminum fin coil with 5 mm diameter for 1.5T-3.5T units
-
Aluminum fin coil with 7 mm diameter copper tubes for 4.0-5.0T units
-
Single-speed PSC condenser fan motor for energy efficiency
-
Factory-installed bi-flow liquid-line filter drier for system protection
-
Factory-installed suction-line accumulator for improved performance
-
Factory-installed compressor crankcase heater for enhanced safety
-
Factory-installed high-capacity muffler for reduced noise levels
-
High-pressure and low-pressure switches for system safety
-
Service valves with sweat connections for easy gauge access
-
Fully charged for 15 feet of tubing length for convenience
-
Fully enclosed contactor with secure lug connection for reliability
-
Ground lug connection for electrical safety
-
Extended-life capacitors for increased durability
-
AHRI Certified and ETL Listed for quality assurance

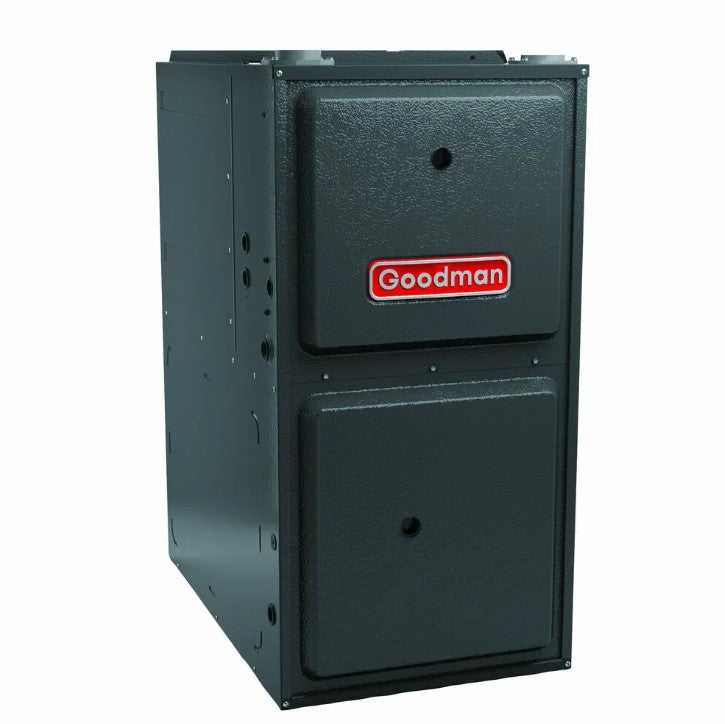

Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 60,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.
- Unit Height: 33-3/8 in
- Unit Width: 17-1/2 in
- AFUE: 92 %
- 60,000 BTU
- R32
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 114 lb
- Model Efficiency: 0.92
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
-
Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
-
Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
-
Single-Stage Gas Valve: Simplifies operation with reliable gas control.
-
Durable Silicon Nitride Igniter: Offers consistent ignition performance.
-
Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
-
Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
-
Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
-
California Compliance: Meets the 40 ng/J Low NOx emissions standard.
-
Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
-
AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
-
Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
-
Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
-
Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
-
Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
-
Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
-
Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
-
Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
-
Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

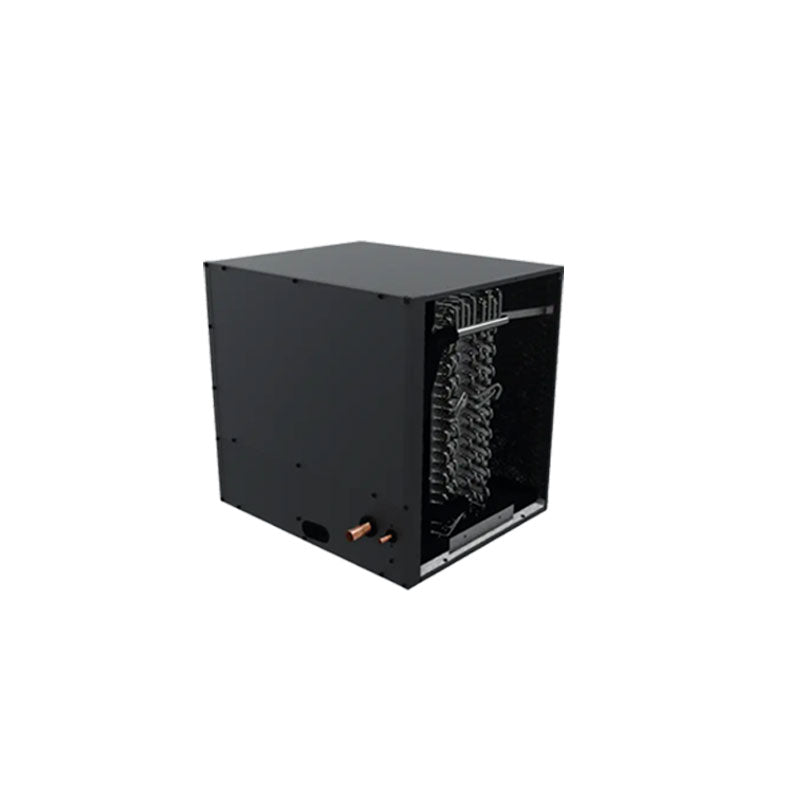

The Goodman CHPTA2426C3 R32 Evaporator Coil features a 26" wide cased horizontal-A design, with optimized R-32 compatibility and factory-installed TXV for efficient cooling and heat pump support. This all-aluminum coil includes a durable galvanized cabinet, UV-resistant, DecaBDE-free thermoplastic drain pan with secondary connections, and foil-faced insulation to minimize condensation. Its 21" depth ensures easy attic access, while a single front panel allows for streamlined servicing. AHRI certified and ETL listed, this coil is engineered for efficiency, safety, and longevity in demanding HVAC applications.
- Refrigerant Type: R-32
- Unit Height: 21 in
- Unit Width: 26 in
- Cased/Uncased: Cased
- Coil Application: Horizontal A
- Unit Depth: 21 in
Product Features For Goodman R32 Horizontal-A Evaporator Coil
-
All-Aluminum evaporator coil: Lightweight and efficient for reliable performance.
-
Optimized for R-32 refrigerant: Includes specialized circuits and manifold, enhancing compatibility and efficiency.
-
R-32 sensor: Designed to last the coil’s full lifespan, ensuring consistent performance.
-
Factory-installed thermal expansion valves: Supports cooling and heat pump applications for optimal performance.
-
Standardized copper suction tube stub length: Simplifies installation and compatibility across systems.
-
Check flowrator: Provides reliable flow control for both cooling and heat pump setups.
-
Horizontal application: Suitable for various installation orientations.
-
21" depth: Allows easier access in tight spaces, such as attics.
-
Single front access panel: Simplifies servicing and maintenance.
-
Foil-faced insulation: Reduces cabinet condensation for improved efficiency.
-
Galvanized, leather grain-embossed finish: Durable and rust-resistant for long-lasting performance.
-
Rust-resistant thermoplastic drain pan: Features a low water-retention design to prevent buildup.
-
DecaBDE-free thermoplastic drain pan: Includes secondary drain connections for added drainage options.
-
Drain pan rails: Enable easy removal and repositioning of coils without compromising structure.
-
UV-resistant drain pan: Protects against sun damage, enhancing durability.
-
AHRI certified and ETL Listed: Compliant with industry standards for quality and safety.
