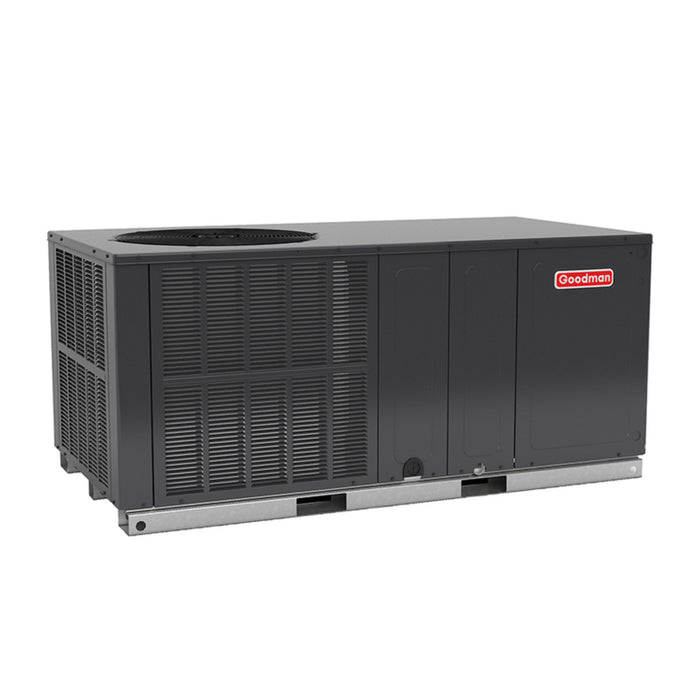

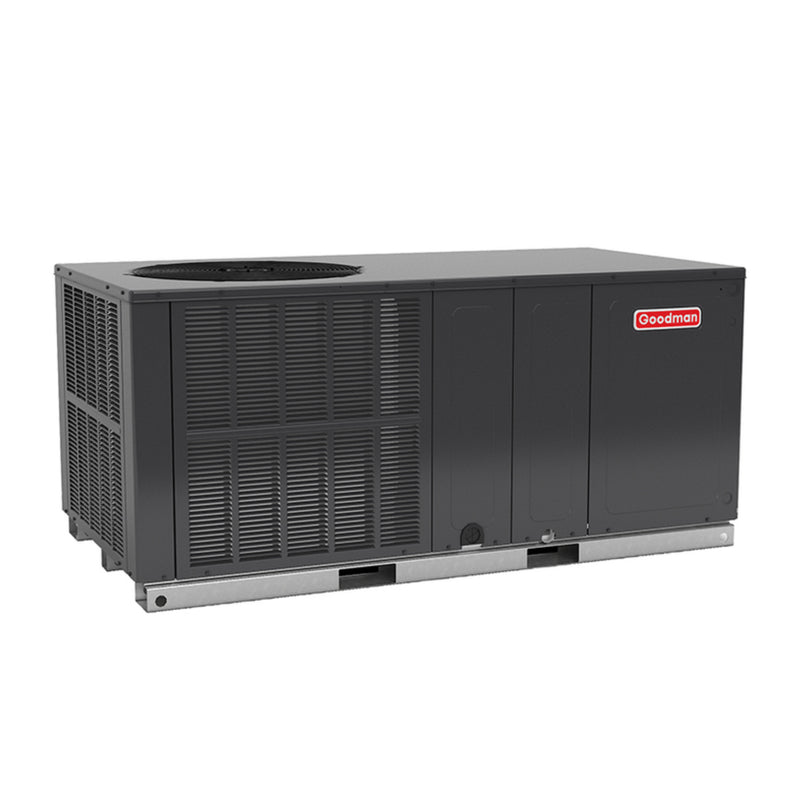

Goodman GPCH34231

Goodman 3.5 Ton 13.4 SEER2 Air Conditioner Package Unit Horizontal R32

By Goodman | Model: GPCH34231 | ID: 090166
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$3,918.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 3.5 Ton 13.4 SEER2 Air Conditioner Package Unit Horizontal R32 GPCH34231

The Goodman GPCH34231 is a 3.5-ton, 13.4 SEER2 AC-only packaged unit engineered for horizontal-discharge applications. Built to serve medium-sized homes in standard climates, this all-in-one outdoor system features a rugged galvanized steel cabinet, a scroll compressor for efficient performance, and factory pre-charging to simplify installation. Quiet and dependable, this model is a solid choice for homeowners seeking comfort, value, and durability in one unit. For added functionality, an optional electric heat kit is available for field installation.

Key Features

  • 3.5 Ton Cooling Capacity – Designed for medium-sized residential applications
  • 13.4 SEER2 Efficiency – Meets U.S. DOE efficiency standards
  • Horizontal Discharge – Ideal for side-discharge installation configurations
  • Two-Stage Cooling – Delivers improved temperature control and energy savings
  • Scroll Compressor – Offers smooth, reliable, and efficient operation
  • Pre-Charged at Factory – No additional refrigerant required at setup
  • R32 Refrigerant – Provides low global warming potential and better performance
  • Insulated Blower Cabinet – Reduces noise and allows easy service access
  • Optional Electric Heat Kit – Straight electric heat compatibility available

The GPCH34231 offers dependable cooling, low sound levels, and installation flexibility — all backed by a 10-year parts warranty when registered online.

View More Packaged Units

Specifications

Goodman 3.5 Ton 13.4 SEER2 Air Conditioner Package Unit Horizontal R32 GPCH34231

Brand Goodman SKU GPCH34231
Weight (in lbs) 390 AHRI Certificate Number 217486119
Cooling BTU 39,000 BTU Maximum CFM 1,300
Decibel Level (dBA) 76 decibels Configuration Horizontal
Refrigerant R32 SEER2 (Efficiency) 13.4
Condenser Stages Two Stage Compressor Type Scroll
Electrical 208 / 230 V, 1 Phase, 60 Hz Max Breaker Size 35 amps
Min. Breaker Size 24.8 amps Tonnage 3.5 Ton
Height 22" Width 66"
Depth 34" Warranty 10 Years with Online Registration
Warranty

Goodman 3.5 Ton 13.4 SEER2 Air Conditioner Package Unit Horizontal R32 GPCH34231

Warranty Type Parts Compressor
Standard Warranty 3 years parts 5 years parts
Registered Warranty
 10 years parts 10 years parts
Documents

Goodman 3.5 Ton 13.4 SEER2 Air Conditioner Package Unit Horizontal R32 GPCH34231

GPCH3 Installation Manual

GPCH3 Specifications Sheet

GPCH3 Service Manual

Goodman Packaged Unit Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
