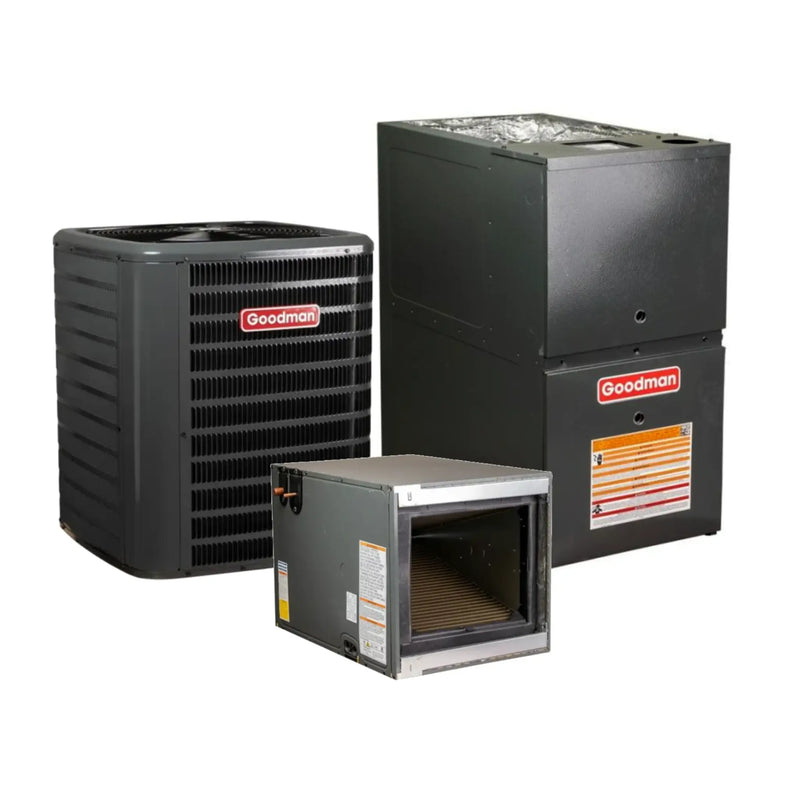

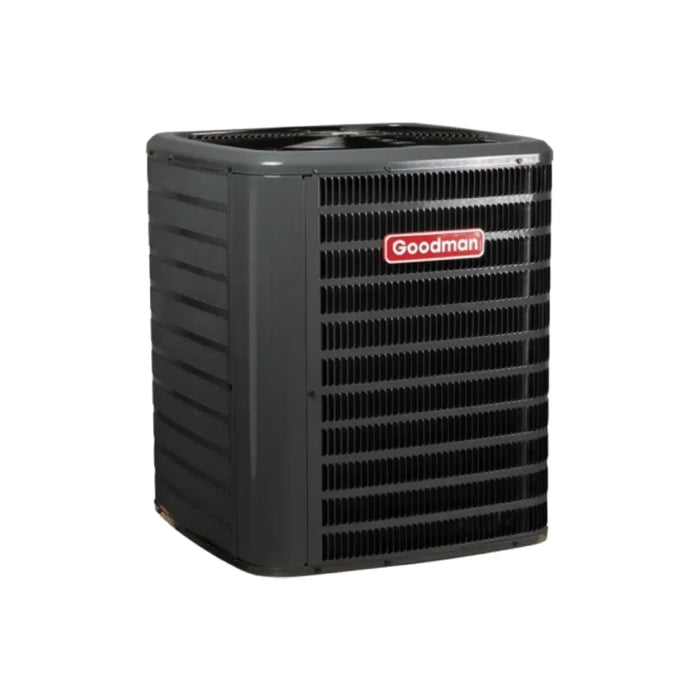

Goodman 3.5 Ton 14.3 SEER2 Heat Pump Split Condenser Single Stage R32 GLZS4BA4210
The Goodman 3.5 Ton 14.3 SEER2 Heat Pump Split Condenser is designed for efficient, quiet, and reliable performance in residential HVAC systems. Featuring a high-efficiency scroll compressor, Smart-Shift defrost technology, and enhanced aluminum fin coils, this unit ensures smooth operation, superior heat transfer, and long-term energy savings. Its durable galvanized steel cabinet, corrosion-resistant finish, and hurricane-ready construction make it an ideal choice for homeowners seeking comfort, durability, and environmental compliance.
Key Features
-
Cooling & Heating Capacity - 3.5 Ton (42,000 BTU) split heat pump system ideal for medium to large residential spaces.
-
Efficiency Rating - 14.3 SEER2 for reliable year-round performance and compliance with DOE 2023 standards.
-
Compressor Type - High-efficiency scroll compressor ensures consistent operation and long service life.
-
Smart-Shift Technology - Provides quieter, smoother defrost cycles to enhance comfort and system longevity.
-
Refrigerant - Uses R-32 refrigerant, offering higher energy efficiency and reduced global warming potential.
-
Coil Design - Enhanced 5 mm and 7 mm aluminum fin coils improve heat exchange and corrosion resistance.
-
Fan Motor - Single-speed PSC condenser fan motor delivers dependable and quiet airflow.
-
Factory-Installed Components - Includes bi-flow liquid-line filter drier, crankcase heater, and high-capacity muffler for superior reliability.
-
System Protection - Equipped with high- and low-pressure switches to safeguard the compressor and system operation.
-
Service Valves - Sweat connections with integrated gauge ports for simple installation and maintenance.
-
Pre-Charged - Fully charged for up to 15 feet of refrigerant tubing to reduce installation time.
-
Electrical Safety - Fully enclosed contactor with secure lug and ground connections enhances safety and reliability.
-
Cabinet Design - Heavy-gauge galvanized steel with a removable grille-style top compliant with UL 60335-2-40 safety standards.
-
Protective Finish - Architectural Gray powder coating withstands 500-hour salt spray testing for long-lasting durability.
-
Coil Protection - Louver-style steel coil guard provides additional protection from debris and damage.
-
Maintenance Access - Top and side service access panels allow convenient inspection and servicing.
-
Certifications - AHRI Certified and ETL Listed for energy efficiency, safety, and performance assurance.
-
Hurricane Compliance - Meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored.
Why Choose the Goodman 3.5 Ton 14.3 SEER2 Heat Pump?
The Goodman 3.5 Ton 14.3 SEER2 Heat Pump Split Condenser combines efficiency, reliability, and quiet operation in one robust design. Engineered with Smart-Shift technology, R-32 refrigerant compatibility, and advanced component protection, it offers long-lasting performance for homes in diverse climates. With its corrosion-resistant cabinet and hurricane-ready construction, this system delivers peace of mind and comfort for years to come.

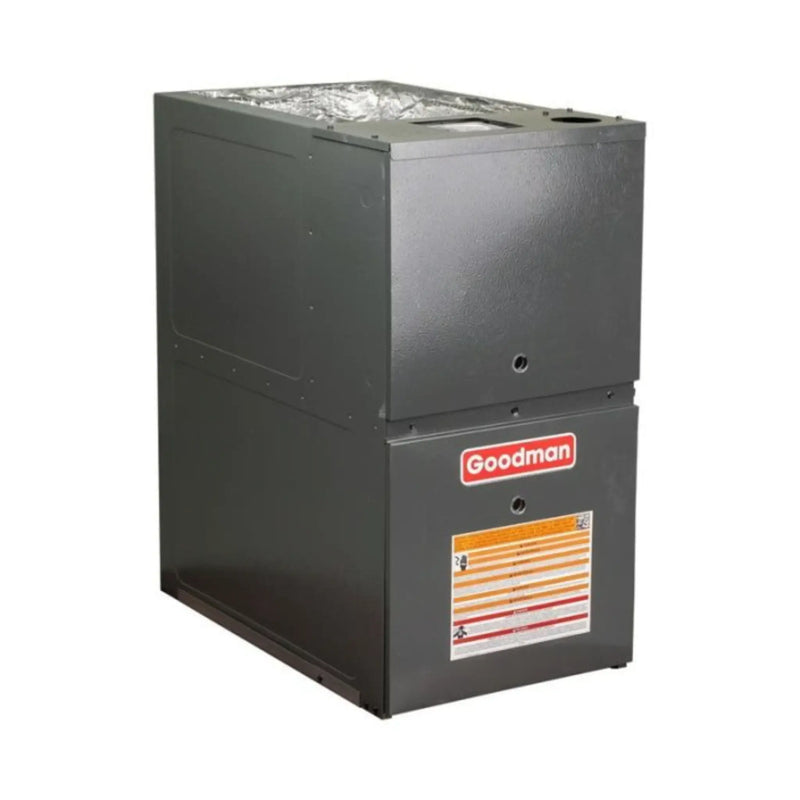

Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32 GR9S801005CX
The Goodman GR9S801005CX 80% AFUE R32 Gas Furnace delivers powerful, efficient, and environmentally responsible heating performance. With a 100,000 BTU heating capacity and a multi-speed ECM blower motor, this furnace ensures consistent comfort, reduced energy consumption, and quieter operation. Engineered for reliability, it features a heavy-duty aluminized steel heat exchanger, durable hot-surface igniter, and self-diagnostic control board for simplified maintenance and service. Designed for upflow and horizontal installations, the GR9S801005CX provides flexibility, efficiency, and compliance with California’s Low NOx emission standards.
Key Specifications
-
Heating Capacity - 100,000 BTU input with efficient, even heat distribution for medium to large homes.
-
AFUE Efficiency - 80% Annual Fuel Utilization Efficiency for reliable, cost-effective heating.
-
Airflow - 2000 CFM multi-speed ECM blower motor for improved airflow and energy savings.
-
Heat Exchanger Type - Dual-diameter aluminized steel tubular design for durability and high thermal efficiency.
-
Power Requirements - 115V, single-phase, 15A maximum overcurrent protection.
-
Installation Options - Supports upflow and horizontal configurations; left or right gas and electrical service connections.
-
Dimensions - Height: 33-3/8", Width: 21", Depth: 28"; Weight: 132 lbs.
Key Features
-
Low NOx Burner - Meets California Low NOx emission requirements, reducing harmful nitrogen oxides for cleaner operation.
-
Single-Stage Gas Valve - Delivers dependable performance and consistent heating output.
-
Durable Hot-Surface Igniter - Ensures reliable ignition and long service life with minimal maintenance.
-
Quiet Draft Inducer - Single-speed draft inducer promotes smooth airflow and quieter performance.
-
Self-Diagnostic Control Board - Monitors system performance and simplifies troubleshooting.
-
Color-Coded Wiring - Low-voltage terminals streamline installation and reduce setup time.
-
Heavy-Gauge Steel Cabinet - Foil-faced insulation and baked-enamel finish improve durability and energy retention.
-
Flexible Installation - GR9S80 models support upflow/horizontal left or right; GD9S80 models support downflow/horizontal left or right.
-
Certifications - AHRI Certified and ETL Listed for safety, performance, and efficiency compliance.
California Compliance Notice
This Goodman GR9S801005CX Low NOx Furnace is compliant with California’s standard Low NOx regulations and is designed to reduce nitrogen oxide emissions. However, it cannot be installed in the following counties that require Ultra-Low NOx furnaces.
Dependable Comfort and Efficiency
The Goodman 80% AFUE R32 Gas Furnace provides reliable comfort, efficiency, and quiet performance with environmentally conscious Low NOx technology. Its combination of durable construction, intelligent diagnostics, and flexible installation options makes it an excellent choice for homeowners seeking dependable warmth and long-term energy savings.
Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3
The Goodman CHPTA4230C3 is a high-performance 3.5-ton horizontal evaporator coil designed for use with R-32 refrigerant systems. Built from durable, all-aluminum components and equipped with factory-installed TXVs for both cooling and heat pump applications, this coil offers exceptional system efficiency, corrosion resistance, and reliable comfort. Compact and installer-friendly, it’s ideal for attics, crawl spaces, or horizontal configurations where space and accessibility are critical.
Key Specifications
-
Tonnage - 3.5 tons, optimized for high-efficiency R-32 refrigerant systems.
-
Construction - All-aluminum tubing and fin design for superior heat transfer and long-term durability.
-
Thermal Expansion Valves (TXVs) - Factory-installed for both cooling and heat pump applications to ensure precise refrigerant control and enhanced system efficiency.
-
Design - Compact 21" depth optimized for horizontal installation in space-limited areas such as attics or mechanical closets.
-
Insulation - Foil-faced interior insulation minimizes cabinet condensation and thermal loss.
-
Drain Pan - Molded thermoplastic drain pan with rust and UV resistance, featuring low water retention and secondary drainage connections.
-
Serviceability - Removable rails and a single front access panel simplify maintenance and inspection.
-
Refrigerant Lines - Standardized copper suction and liquid line stub lengths for easy system matching.
-
Certifications - ETL Listed and AHRI Certified, ensuring compliance with safety and performance standards.
Performance & Installation Advantages
-
High Efficiency - Designed specifically for R-32 refrigerant to improve energy transfer and system SEER2 performance.
-
Corrosion Resistance - Aluminum construction eliminates the risk of galvanic corrosion for longer coil life.
-
Compact Profile - 21-inch depth enables installation in tighter spaces without sacrificing capacity or efficiency.
-
Easy Access - Single removable front panel allows quick coil inspection and cleaning.
-
Flexible Installation - Ideal for horizontal left or right airflow configurations in residential HVAC systems.
Why Choose the Goodman CHPTA4230C3?
The Goodman CHPTA4230C3 3.5-Ton Horizontal Evaporator Coil is a versatile and reliable component for R-32 HVAC systems. Its all-aluminum build, factory-installed TXVs, and service-friendly design make it a perfect match for homeowners and HVAC professionals seeking durable, efficient, and space-saving performance. Whether used in new installations or retrofit projects, it ensures long-term reliability and compliance with modern refrigerant standards.
