Goodman GLXS3BN3610

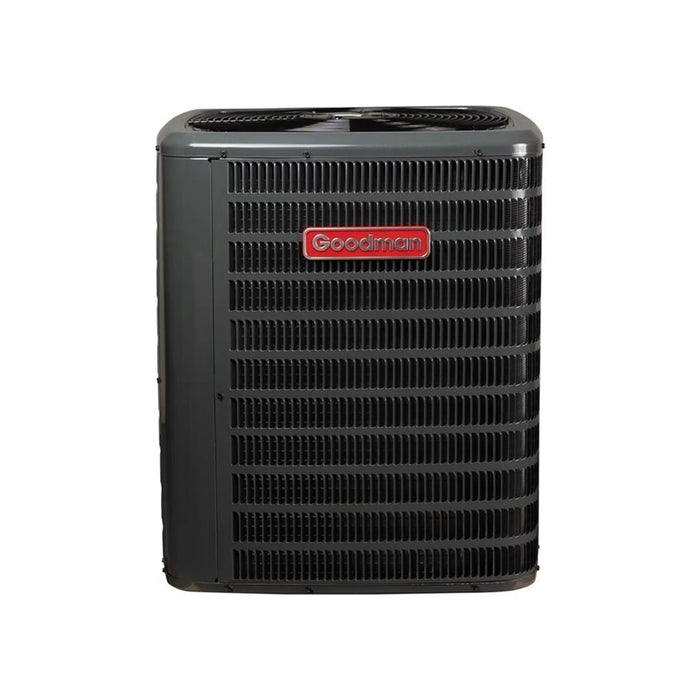

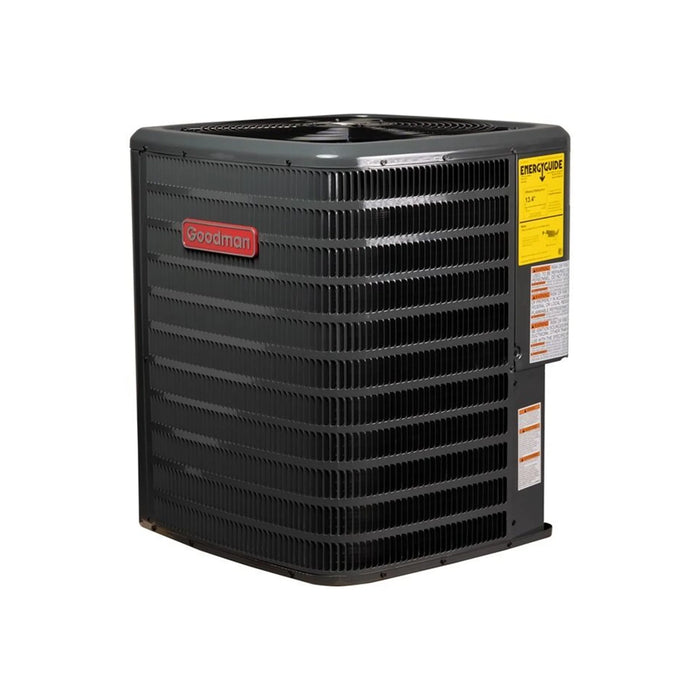

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32

By Goodman | Model: GLXS3BN3610 | ID: 100026
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,046.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS3BN3610

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

Product Features

  • New R32 Freon: Eco-friendly refrigerant for energy-efficient cooling and reduced environmental impact.
  • Removable Grille-Style Top Design: Easy maintenance and UL 60335-2-40 compliant for safety and durability.
  • Venturi Design for Increased Airflow Velocity: Optimized airflow for improved performance and cooling efficiency.
  • Architectural Gray Powder-Paint Finish: Premium, corrosion-resistant finish with 500-hour salt-spray approval for long-lasting durability outdoors.
  • Wire Fan Discharge Grille: Provides robust protection for fan components while ensuring smooth airflow.
  • Steel Louver Coil Guard: Enhances protection for coils, extending the unit’s service life and reliability.
  • Top and Side Maintenance Access: Convenient access points simplify servicing and routine maintenance.
  • Single-Panel Access to Controls: Streamlined setup with space for field-installed accessories, enhancing flexibility during installation.
  • Meets 2023 Florida Building Code Requirements: Designed to withstand hurricane-type winds when properly anchored, ensuring safety and structural integrity.

View More Air Conditioner Condensers

Specifications

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS3BN3610

Brand Goodman SKU GLXS3BN3610
Weight (in lbs) 151 Replaces GSX130361, GSXN3N3610
Product Features New Refrigerant Compliant Cooling BTU 36,000
Decibel Level (dBA) 69 Horsepower 1/8 HP
Refrigerant R32 SEER2 (Efficiency) 13.4
Condenser Stages Single Stage Compressor Type Scroll
Liquid Line 3/8" Suction Line 7/8"
Liquid Valve Size 3/8" Suction Valve Size 7/8"
Electrical 208 / 230 V. 1 Phase 60 Hz Max Breaker Size 30 Amps
Min. Breaker Size 17.5 Amps Tonnage 3 Ton
Connection Sweat Height 32 1/2"
Width 26" Depth 26"
Warranty 10 Years Parts Limited Warranty with Online Registration
Warranty

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS3BN3610

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS3BN3610

GLXS3B Installation Manual

GLXS3B Specifications Sheet

GLXS3B Service Manual

Goodman Condenser Warranty
