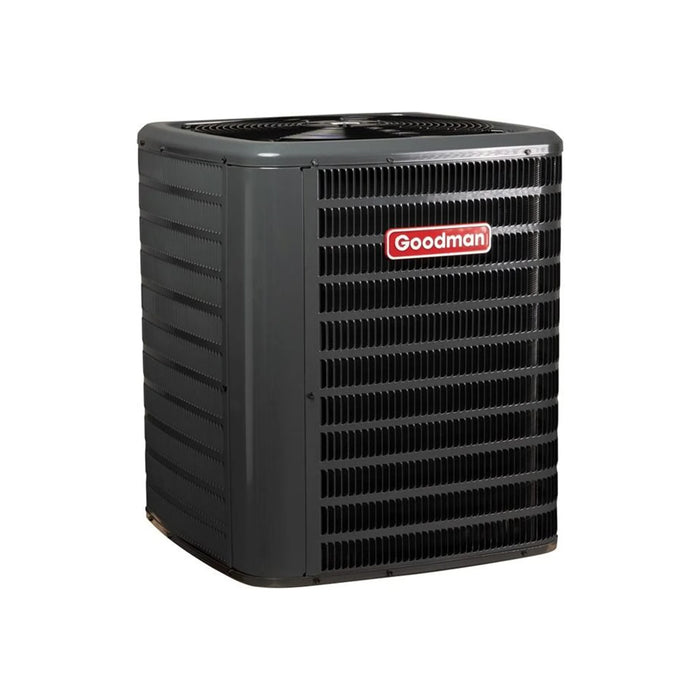

Goodman 3 Ton 14.3 SEER2 Split Air Conditioner Condenser Single-Stage R32 GLXS4BA3610
This high-performance HVAC condenser unit is designed for energy-efficient cooling, advanced diagnostics, and long-term reliability. Featuring a high-efficiency scroll compressor, Copeland CoreSense Technology, and new R32 refrigerant, it meets 2025 refrigerant standards and offers quiet, dependable operation for residential and light commercial applications.
Key Features
-
R32 Refrigerant – Environmentally responsible refrigerant that meets 2025 EPA guidelines
-
High-Efficiency Scroll Compressor – Delivers reliable performance with lower energy consumption
-
Copeland CoreSense Technology – Provides advanced protection, diagnostics, and system monitoring
-
High-Density Foam Sound Blanket – Reduces compressor noise for quieter operation
-
Pre-Charged for 15' Line Set – Factory-charged with refrigerant to simplify installation
-
Copper Tube / Enhanced Aluminum Fin Coil (5mm) – Maximizes heat transfer for improved cooling efficiency
-
Factory-Installed Filter Drier – Protects the system from moisture and contaminants
-
Sweat Connection Service Valves – Easy access to gauge ports for faster maintenance
-
Enclosed Contactor – Protects electrical components from debris and moisture
-
High-Pressure Switch – Ensures safety by shutting the system down under abnormal pressure
-
Extended-Life Capacitors – Durable components built for long-term operation
-
AHRI Certified & ETL Listed – Meets industry standards for performance and safety
Cabinet Features
-
Removable Grille-Style Top – UL 60335-2-40 compliant for safe access to internal components
-
Architectural Gray Powder-Coat Finish – Tested with 500-hour salt spray approval for weather resistance
-
Wire Fan Grille – Provides safety and durability during operation
-
Steel Coil Guard – Protects the coil from debris and potential damage

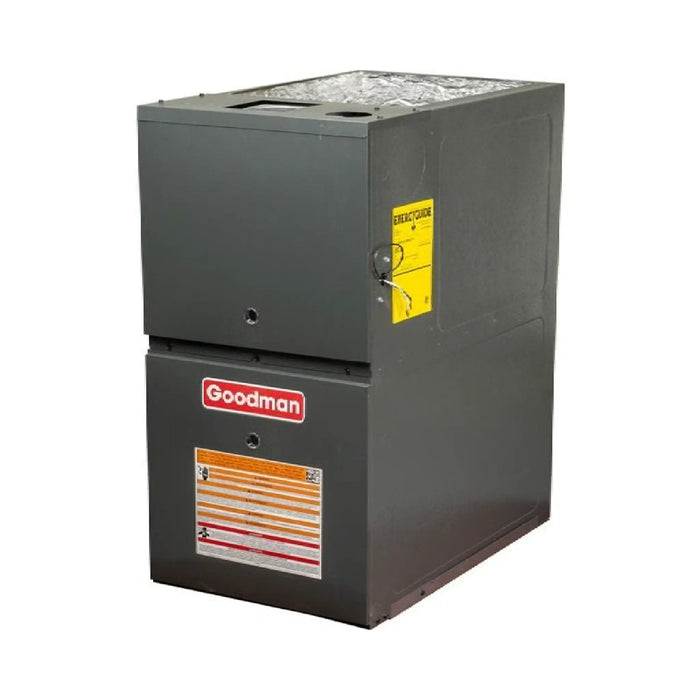

Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32 GR9S801005CX
The Goodman GR9S801005CX 80% AFUE R32 Gas Furnace delivers powerful, efficient, and environmentally responsible heating performance. With a 100,000 BTU heating capacity and a multi-speed ECM blower motor, this furnace ensures consistent comfort, reduced energy consumption, and quieter operation. Engineered for reliability, it features a heavy-duty aluminized steel heat exchanger, durable hot-surface igniter, and self-diagnostic control board for simplified maintenance and service. Designed for upflow and horizontal installations, the GR9S801005CX provides flexibility, efficiency, and compliance with California’s Low NOx emission standards.
Key Specifications
-
Heating Capacity - 100,000 BTU input with efficient, even heat distribution for medium to large homes.
-
AFUE Efficiency - 80% Annual Fuel Utilization Efficiency for reliable, cost-effective heating.
-
Airflow - 2000 CFM multi-speed ECM blower motor for improved airflow and energy savings.
-
Heat Exchanger Type - Dual-diameter aluminized steel tubular design for durability and high thermal efficiency.
-
Power Requirements - 115V, single-phase, 15A maximum overcurrent protection.
-
Installation Options - Supports upflow and horizontal configurations; left or right gas and electrical service connections.
-
Dimensions - Height: 33-3/8", Width: 21", Depth: 28"; Weight: 132 lbs.
Key Features
-
Low NOx Burner - Meets California Low NOx emission requirements, reducing harmful nitrogen oxides for cleaner operation.
-
Single-Stage Gas Valve - Delivers dependable performance and consistent heating output.
-
Durable Hot-Surface Igniter - Ensures reliable ignition and long service life with minimal maintenance.
-
Quiet Draft Inducer - Single-speed draft inducer promotes smooth airflow and quieter performance.
-
Self-Diagnostic Control Board - Monitors system performance and simplifies troubleshooting.
-
Color-Coded Wiring - Low-voltage terminals streamline installation and reduce setup time.
-
Heavy-Gauge Steel Cabinet - Foil-faced insulation and baked-enamel finish improve durability and energy retention.
-
Flexible Installation - GR9S80 models support upflow/horizontal left or right; GD9S80 models support downflow/horizontal left or right.
-
Certifications - AHRI Certified and ETL Listed for safety, performance, and efficiency compliance.
California Compliance Notice
This Goodman GR9S801005CX Low NOx Furnace is compliant with California’s standard Low NOx regulations and is designed to reduce nitrogen oxide emissions. However, it cannot be installed in the following counties that require Ultra-Low NOx furnaces.
Dependable Comfort and Efficiency
The Goodman 80% AFUE R32 Gas Furnace provides reliable comfort, efficiency, and quiet performance with environmentally conscious Low NOx technology. Its combination of durable construction, intelligent diagnostics, and flexible installation options makes it an excellent choice for homeowners seeking dependable warmth and long-term energy savings.
Goodman 3 Ton Evaporator Coil Cased 21" Height Horizontal With TXV CHPTA3630C3
The Goodman CHPTA3630C3 3 Ton Horizontal Evaporator Coil is designed for energy-efficient performance and long-term reliability in residential HVAC systems. Built for horizontal installations, this coil is compatible with both AC-only and heat pump condensers and includes a factory-installed TXV kit for improved refrigerant control and temperature precision. Engineered to meet the latest R32 refrigerant requirements, the CHPTA3630C3 ensures system compatibility, comfort, and compliance for modern home cooling setups.
Whether upgrading an older air conditioning system or building a new HVAC configuration, the CHPTA3630C3 provides dependable performance, efficient cooling, and ease of maintenance.
Key Features
-
Cooling Capacity - 3 Ton capacity ideal for larger residential homes requiring consistent temperature control
-
Application Type - Designed for horizontal installations in attic or crawlspace HVAC systems
-
R32 Refrigerant Compliance - Meets the latest environmental standards under the Clean Air Act
-
Factory-Installed TXV Kit - Enhances system efficiency and refrigerant metering for stable performance
-
Coil Construction - Aluminum tube and fin design for lightweight, corrosion-resistant durability
-
Cabinet Design - Galvanized steel housing with insulation to reduce air leakage and protect components
-
Drain Pan - Antimicrobial thermoplastic pan resists mold growth and promotes clean indoor air
-
Service Access - Split-seam cabinet allows fast and easy maintenance during inspections or repairs
-
System Compatibility - Designed for use with R32 condensers and a compatible furnace or blower (sold separately)
-
Warranty - 10-year limited parts warranty with proper installation and registration
System Compatibility and Use
The Goodman CHPTA3630C3 is built for 3-ton cooling systems in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a furnace or blower unit for complete operation. This evaporator coil is not compatible with packaged HVAC systems or one-piece air handlers.
Easy Installation and Durable Build
Featuring aluminum coil construction and a pre-installed TXV valve, the CHPTA3630C3 minimizes installation time and enhances reliability. Its insulated galvanized steel cabinet protects against energy loss and environmental wear, while the split-seam access panel ensures quick, convenient service and maintenance.
Reliable Comfort and Energy Efficiency
Engineered for modern HVAC systems, the Goodman CHPTA3630C3 provides precise refrigerant control, consistent cooling performance, and enhanced indoor air quality. With its advanced TXV technology and antimicrobial design, it’s the perfect choice for homeowners seeking long-lasting comfort, energy savings, and system reliability.
