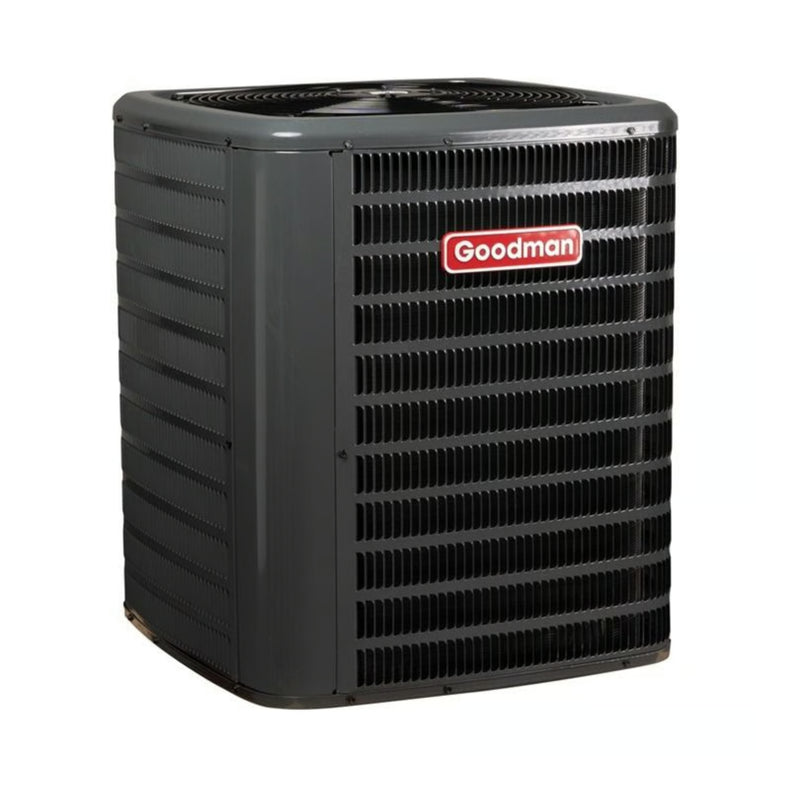

Goodman 3 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA3610
The air conditioning unit features a high-efficiency scroll compressor and a factory-installed filter drier. It is fully charged for 15 feet of tubing length and includes a 5mm diameter copper tube with an enhanced aluminum fin coil. The unit is equipped with service valves that have sweat connections and easy-to-access gauge ports, an enclosed contactor, a ground lug connection, and capacitors designed for extended life. It also includes a high-pressure switch and is both AHRI Certified and ETL Listed.
The cabinet is designed with a removable grille-style top that complies with UL 60335-2-40. It is constructed from heavy-gauge galvanized steel and features a venturi to increase airflow velocity. The attractive Architectural Gray powder-paint finish is approved for 500-hour salt-spray exposure. Additional features include a steel louver coil guard, single-panel access to controls with space for field-installed accessories, and compliance with the 2020 Florida Building Code for hurricane-type winds when properly anchored.
Key Features
-
New R32 Freon – Meets 2025 refrigerant change guidelines for eco-friendly and energy-efficient performance
-
High-Efficiency Scroll Compressor – Enhanced cooling efficiency for reduced energy consumption and optimal performance
-
Factory-Installed Filter Drier – Ensures clean and reliable refrigerant flow, reducing the need for extra maintenance
-
Enclosed Contactor with Lug Connection – Reliable and secure electrical connections for long-lasting performance
-
Ground Lug Connection – Ensures safe and secure grounding for operational safety
-
High-Pressure Switch – Protection against system overloads and optimal performance in high-pressure conditions
-
Removable Grille-Style Top Design – Easy maintenance and UL 60335-2-40 compliant for enhanced safety and durability
-
Venturi to Increase Airflow Velocity – Optimized airflow for improved cooling performance and system efficiency
-
Architectural Gray Powder-Coat Finish – Durable finish with 500-hour salt-spray approval, perfect for outdoor conditions
-
Wire Fan Discharge Grille – Provides added protection for the fan and helps maintain smooth airflow
-
Steel Louver Coil Guard – Increased protection for the coil, extending the unit's lifespan and improving reliability
-
Top and Side Maintenance Access – Convenient access points for easy servicing and component checks
Goodman 80% 80,000 BTU Gas Furnace Two Stage 17.5"W Upflow/Horizontal R32 GR9T800803BN
The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers efficient, reliable, and quiet home heating. With an 80,000 BTU capacity, a durable SureStart® Silicon Nitride igniter, and a two-stage gas valve, this furnace is designed to provide enhanced comfort, reduced noise, and consistent performance. The multi-speed ECM blower motor improves energy efficiency and airflow throughout your home, while the self-diagnostic control board streamlines maintenance and system checks.
This model complies with California Low NOx emissions standards and is AHRI Certified and ETL Listed for quality assurance. It also offers flexible installation options and a fully insulated, heavy-duty cabinet for quieter operation and increased energy retention. Whether you’re upgrading or installing new, this Goodman furnace is built for dependable comfort in a variety of home configurations.
Key Features
-
80,000 BTU Heating Capacity – Suitable for medium-sized homes, delivering reliable and even heating
-
80% AFUE Efficiency Rating – Converts 80% of fuel into usable heat, reducing energy waste
-
Two-Stage Gas Valve – Offers quiet and economical operation with two heating outputs
-
Nine-Speed ECM Circulator Motor – Enhances energy efficiency and comfort through advanced airflow control
-
SureStart® Silicon Nitride Igniter – Designed for long life and reliable ignition performance
-
Self-Diagnostic Control Board – Monitors system performance and simplifies troubleshooting
-
Low Constant Fan Speed – Improves air circulation and comfort between heating cycles
-
Quiet Two-Speed Induced Draft Blower – Reduces system noise for a more peaceful home environment
-
California Low NOx Emissions Compliant – Meets emissions standards for environmentally responsible operation
-
Not for Use in SCAQMD or SJVAPCD – Not approved for installation in certain California air quality districts
-
AHRI Certified and ETL Listed – Independently verified for safety, performance, and compliance
Cabinet Features
-
Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and noise with a durable baked-enamel finish
-
Multi-Position Installation Options – GR9T80: upflow or horizontal (left/right); GD9T80: downflow or horizontal (left/right)
-
Removable Bottom Panel – Supports side- or bottom-return air configurations
-
Convenient Service Access – Left or right side gas and electrical connections simplify setup and maintenance
-
Coil and Furnace Flush Mounting – Allows for a clean, professional installation
-
Cabinet Air Leakage ≤ 2% – Enhances efficiency and indoor air quality by minimizing conditioned air loss

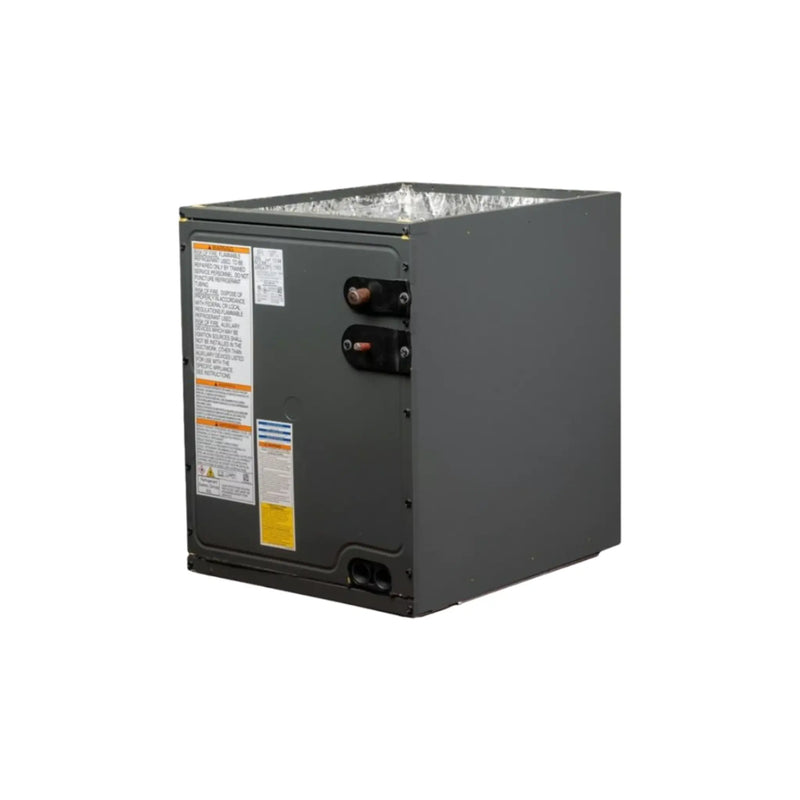

Goodman 3 Ton Cased Evaporator Coil Vertical 17.5"W with Built-in TXV R32 CAPTA3626B3
The Goodman CAPTA3626B3 3 Ton Cased Evaporator Coil is engineered for reliable performance, efficient refrigerant flow, and long-term durability. Built for compatibility with R32 refrigerant and featuring an internal TXV, this all-aluminum coil is ideal for both new installations and system replacements in residential or light commercial HVAC systems.
Part of the trusted Goodman CAPTA Series, this coil features a galvanized steel cabinet, versatile installation options, and advanced condensate management—all backed by Goodman’s 10-year parts warranty. Whether you're upgrading an aging system or installing new HVAC equipment, the CAPTA3626B3 offers the performance and efficiency you need.
Key Features
-
All-Aluminum Coil Construction – Designed with sine fins and grooved tubing to increase surface area for improved heat transfer and superior corrosion resistance.
-
Factory-Installed Internal TXV (Thermostatic Expansion Valve) – Enhances refrigerant metering under varying load conditions for better efficiency and system stability.
-
Upflow/Downflow Compatibility – Flexible configuration for both upflow and downflow installations, accommodating a wide variety of HVAC setups.
-
Durable, Galvanized Steel Cabinet – Embossed, insulated, and sealed cabinet construction improves energy efficiency and protects the coil during operation.
-
Advanced Condensate Management – Rust-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections and foil-faced insulation to minimize moisture issues.
-
R32 Refrigerant Ready – Fully compatible with eco-friendly R32 refrigerant, compliant with new Clean Air Act standards for environmental safety and energy efficiency.
-
Dual Factory Pressure Testing – Each coil undergoes rigorous pressure testing twice before shipping to ensure leak-free, high-quality performance.
-
10-Year Limited Parts Warranty – Includes a 10-year parts warranty with product registration and installation by a licensed HVAC contractor, ensuring long-term protection.
Why Choose Goodman?
Goodman is a trusted name in HVAC systems, known for delivering durable and cost-effective heating and cooling products across North America. With the CAPTA Series evaporator coils, you get consistent performance, low maintenance, and peace of mind—backed by one of the industry's strongest warranties. Choose Goodman for quality you can count on.
