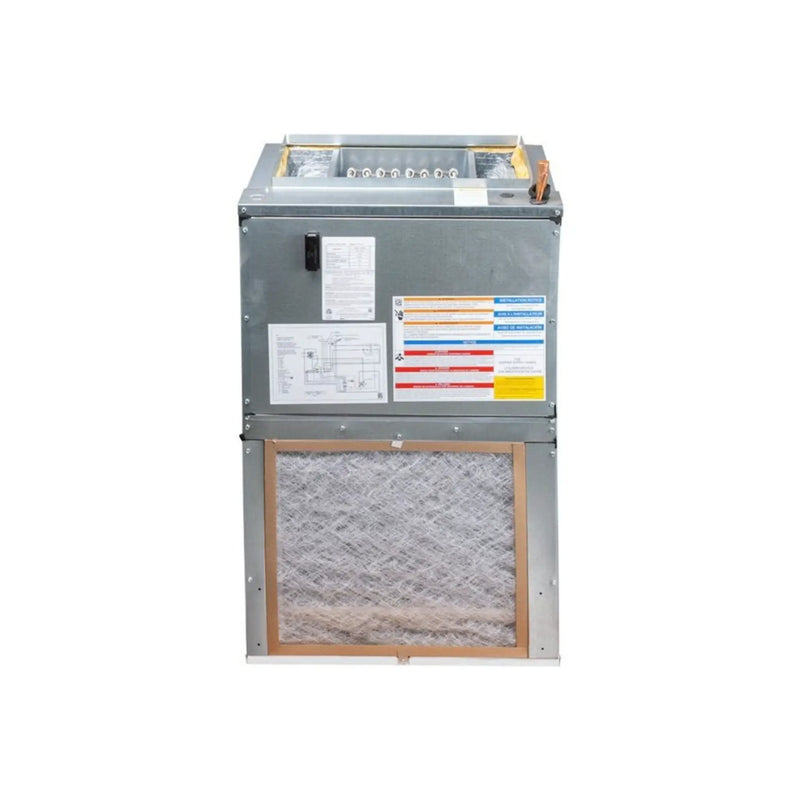

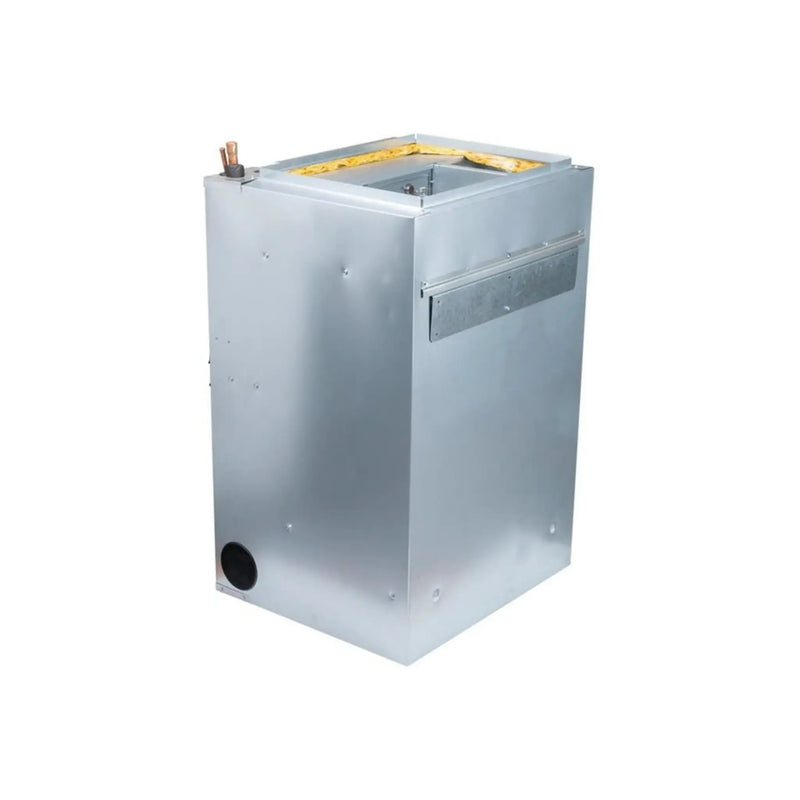

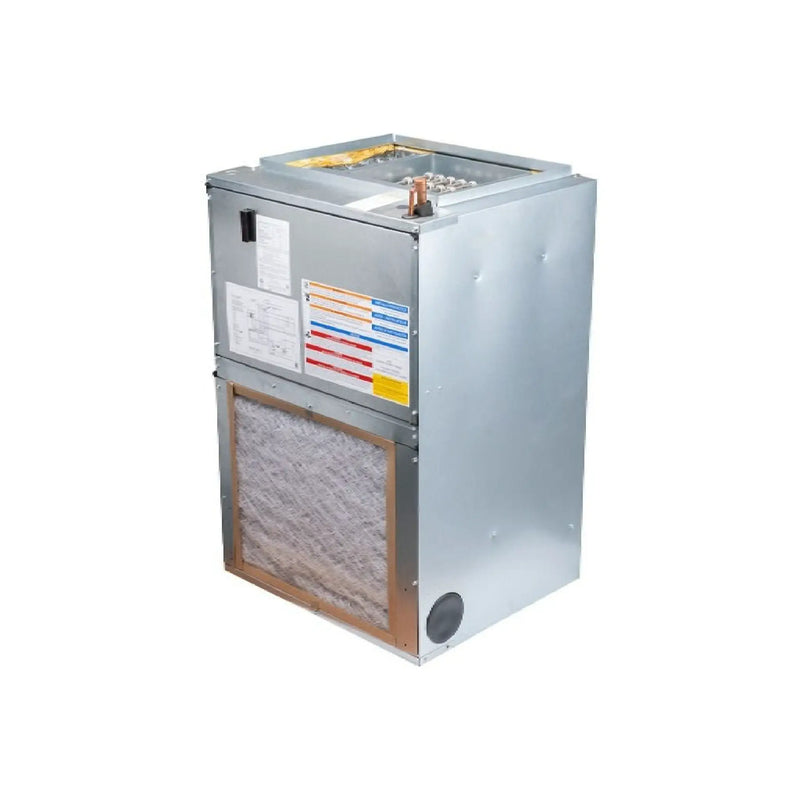

Goodman AWST36LU1310

Goodman 3 Ton Air Handler Wall Mounted 24" Built-in 10KW Heat With TXV R32

By HVAC Store | Model: AWST36LU1310 | ID: 101488
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,180.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 3 Ton Wall Mounted Air Handler With 10,000 Watts R32 AWST36LU1310

The Goodman AWST wall-mounted air handler is a space-saving, energy-efficient solution designed for modern living spaces where square footage is limited. Ideal for multi-tenant buildings such as apartments, condominiums, and townhomes, this unit can be mounted directly to wall studs or installed in recessed areas. Built with a fully insulated galvanized-steel cabinet, the AWST offers enhanced durability while maintaining quiet and efficient performance.

Key Features

  • R32 Refrigerant Compatible – Meets modern environmental standards for reduced global warming potential and Clean Air Act compliance.
  • Adjustable TXV Valve – Allows for flexible operation in both cooling-only and heat pump systems.
  • Direct-Drive Multi-Speed Motor – Enables variable airflow for optimized comfort in both heating and cooling modes.
  • Rust-Resistant Heating Elements – Nickel chromium elements available in 3, 5, 8, and 10 kW configurations for dependable electric heating.
  • Factory-Installed Pull-Type Disconnect – Enhances safety and simplifies maintenance access.
  • Aluminum Tube Coils – Improve system longevity and corrosion resistance across all models.
  • AHRI Certified and ETL Listed – Verified performance and safety for residential HVAC applications.
  • Thermoplastic Drain Pan – Includes both bottom primary and secondary drain connections for effective moisture management.
  • Built-In Filter Rack – Comes complete with an air filter for improved indoor air quality.
  • Flexible Return Configurations – Small chassis models (1.5–2 ton) support front or bottom return; large chassis (2.5–3 ton) support front return only.
  • Wall-Hanging Bracket Included – Allows for fast, secure mounting in compact spaces.

Whether you're outfitting a multi-unit residential building or upgrading a single-zone system, the Goodman AWST wall-mounted air handler offers the performance, efficiency, and installation flexibility required for modern HVAC needs.

View More Air Handlers

Specifications

Goodman 3 Ton Wall Mounted Air Handler With 10,000 Watts R32 AWST36LU1310

Brand Goodman SKU AWST36LU1310
Tonnage 3 Ton Weight (in lbs) 109
Manufacturer Goodman Replaces AWST36LU1410
Product Features Space-Saving Additional Information 18" x 20" x 1" Large Chassis Filter
Cooling BTU 36,000 BTU Blower Motor Multi Speed Direct Drive Motor
Maximum CFM 1360 Horsepower 1/2 HP
Electric Heat 10 Kilowatts Refrigerant R32
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230v Single Phase 60 Hz Max Breaker Size 50/60 Amps
Min. Breaker Size 48.1/54.8 Amps Fuel Type Electric
Height 36" Width 24"
Depth 21" Warranty 10 Years Parts with Online Registration
Warranty

Goodman 3 Ton Wall Mounted Air Handler With 10,000 Watts R32 AWST36LU1310

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years
Documents

Goodman 3 Ton Wall Mounted Air Handler With 10,000 Watts R32 AWST36LU1310

AWST Installation Manual

AWST Specification Sheet

AWST Service Manual

Goodman Air Handler Warranty
