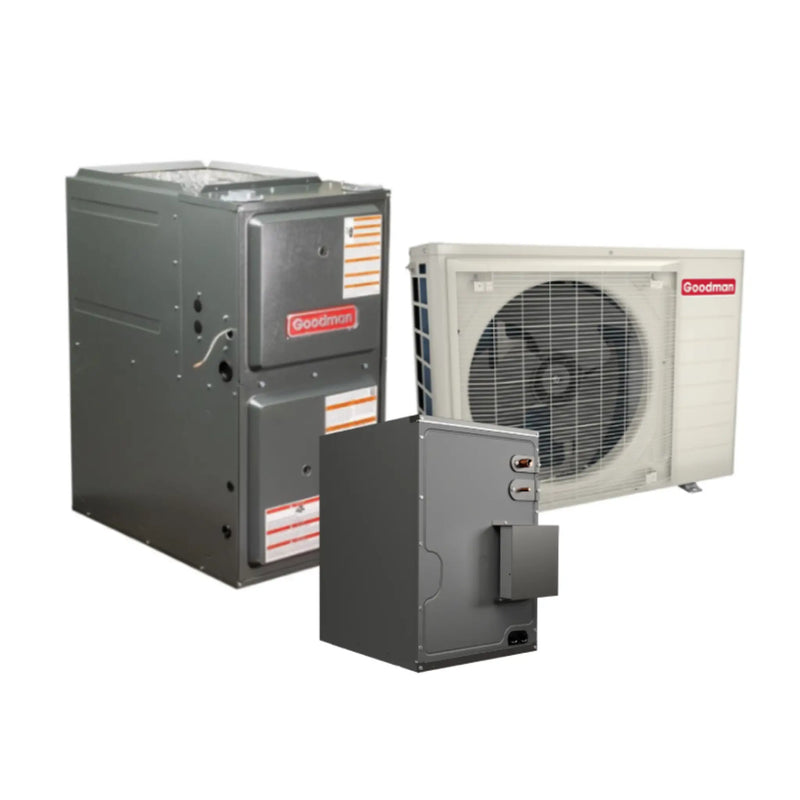

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810
The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.
Key Features
- Variable-Speed Inverter Compressor for Enhanced Energy Efficiency
- Quiet Digitally Commutated Fan Motor
- High-Density Compressor Sound Blanket for Reduced Noise
- Advanced Proprietary Control Algorithmic Logic
- Non-Communicating System Configuration
- Field-Selectable Boost Mode for High Load Conditions
- Diagnostic Indicator Lights with Fault Code Storage
- AHRI Certified and ETL Listed
- Meets 2023 M1 Test Standards
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Long-Term Durability
- Wire Fan Discharge Grille
- Top and Side Maintenance Access Panels
- Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored
This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.
Goodman 97% 80K BTU Gas Furnace Low NOx Variable Speed Upflow/Horizontal GRVM970804CN
Upgrade your home comfort system with this high-performance gas furnace, designed to deliver exceptional reliability, energy efficiency, and long-lasting durability. Whether you're heating or cooling, this unit provides optimal indoor comfort through intelligent airflow management and premium features that support easy installation and flexible operation. Perfect for residential spaces seeking low NOx emissions and high efficiency performance.
Product Benefits
-
High Reliability and Quality – Built for dependable, long-lasting performance.
-
Airflow System – Gently ramps up or down according to heating or cooling demand for better comfort.
-
Fast Condensate Drainage – Prevents unit water leakage and enhances system reliability.
-
Auto-Configuration – Automatically configures to suit each installation, saving setup time.
-
Thermostat Compatibility – Works with non-communicating single-stage thermostats.
-
Durable Igniter – Ensures long igniter life and consistent ignition performance.
-
Self-Diagnostic Control Board – Stores fault code history with constant memory for easy troubleshooting.
-
Electronic Air Cleaner & Humidifier Ready – Built-in provisions for convenient integration.
-
Energy Efficient and Precise Comfort – Provides optimal temperature control while reducing energy usage.
-
Lower NOx Emissions – Environmentally friendly design meets stringent emission standards.
-
AHRI & ETL Certified – Complies with North American safety standards and performance requirements.
-
Tax Credit Eligible – Qualifies for energy-efficiency tax incentives.
-
Easy Connection for EAC and Humidifier – Simplifies installation of air quality accessories.
Cabinet Features
-
Multi-Position Installation – Supports upflow, horizontal left or right configurations.
-
Flexible Venting Options – Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
-
Easy Venting Installation – Top venting standard, with optional side venting available.
-
Convenient Utility Access – Left or right side gas and electrical service connections.
-
Low Air Leakage Cabinet – Air leakage (Qleak) is less than or equal to 2% for maximum efficiency.
-
Fully Insulated Design – Insulated heat exchanger and blower section reduce noise and improve efficiency.
-
Bottom or Side Return Applications – Offers flexible return air installation options.
-
Heavy-Gauge Steel Cabinet – Durable finish protects against wear and corrosion.
Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA6030C3
The Goodman CAPEA6030C3 is a 5-ton cased A coil evaporator designed for use in both split system air conditioners and heat pumps. Built with durable all-aluminum construction, this coil delivers reliable performance and superior heat transfer. It supports both upflow and downflow configurations and includes a factory-installed thermal expansion valve (TXV) for precise refrigerant control. Compatible with R-32 refrigerant, the coil also features foil-faced insulation and a thermoplastic drain pan to manage condensation effectively, all within a compact cabinet featuring a galvanized, leather grain-embossed finish.
Key Features
- 5 Ton Cooling Capacity (60,000 BTU)
- All-Aluminum A Coil Enhances Durability and Heat Transfer
- Factory-Installed TXV for Efficient Refrigerant Metering
- Optimized for R-32 Refrigerant Applications
- Upflow and Downflow Configuration Compatibility
- Thermoplastic Drain Pan for Improved Condensation Management
- Foil-Faced Insulation Minimizes Internal Cabinet Moisture
- Galvanized Steel Cabinet with Leather Grain-Embossed Finish
- Single Front Access Panel for Service Access
- AHRI Certified, ETL Listed, and ISO Certified
This 5-ton evaporator coil is an excellent fit for high-capacity residential HVAC systems requiring reliable performance, R-32 compatibility, and energy-efficient design in a flexible upflow/downflow configuration.
