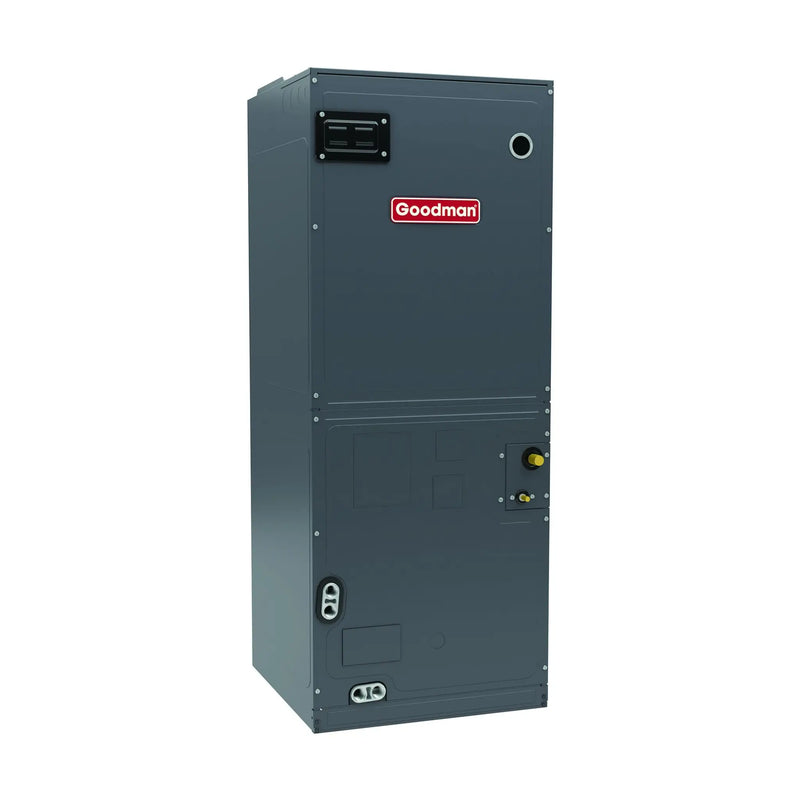

Goodman 4 Ton Ducted Air Handler Multi-Position Variable Speed 21"W 230V AHVE48CP1300
The Multi-Position, Variable-Speed ECM Air Handler is a high-performance HVAC solution designed to optimize comfort, efficiency, and reliability. This advanced air handler features a built-in Electronic Expansion Valve (EEV) for precise refrigerant control, making it ideal for both cooling and heat pump applications. Compatible with Goodman brand smart thermostats, this system integrates seamlessly with your existing HVAC setup to deliver energy-efficient, year-round comfort. It supports S-Series matchups for superior performance and communication and is available in sizes ranging from 1½ to 5 tons, suitable for residential and light commercial installations.
This high-efficiency evaporator coil with Electronic Expansion Valve (EEV) is designed for modern cooling and heat pump systems, delivering precise refrigerant control, improved energy efficiency, and enhanced indoor comfort. Engineered with advanced HVAC technology, this coil assembly provides reliable performance across a wide range of residential and light commercial applications.
Featuring an all-aluminum evaporator coil, 7mm evaporator tubing, and a variable-speed ECM blower motor, this system helps optimize airflow, humidity control, and overall system efficiency. The EEV technology allows for accurate refrigerant metering to improve cooling performance and heat pump operation under changing load conditions.
Designed for compatibility with smart HVAC controls, this evaporator coil works with Goodman brand smart thermostats and provides advanced monitoring features, including fault recall, CFM indicators, and adjustable low-CFM fan-only operation for improved efficiency and comfort.
Flexible Installation with Durable Cabinet Design
The rigid SmartFrame™ cabinet is engineered for durability, reduced air leakage, and easier installation in a variety of HVAC configurations. With horizontal and vertical installation capabilities, a compact 21-inch cabinet depth, and a coil mounting track for quick repositioning, this evaporator coil is designed to simplify installation and service access.
Built for long-term reliability, the cabinet features enhanced insulation, a corrosion-resistant galvanized finish, a durable thermoplastic drain pan, and design improvements that help reduce condensation in humid environments.
Key Features
-
Electronic Expansion Valve (EEV) Technology – Provides precise refrigerant control for improved cooling efficiency, heat pump performance, and consistent comfort.
-
Optimized for R-32 Refrigerant – Designed for use with next-generation R-32 refrigerant systems for improved efficiency and environmental performance.
-
Factory-Installed R-32 Sensor – Includes an integrated refrigerant sensor designed for reliable operation throughout the lifespan of the coil.
-
All-Aluminum Evaporator Coil – Durable aluminum construction helps resist corrosion while providing efficient heat transfer performance.
-
7mm Evaporator Coil Tubing – Advanced tubing design improves refrigerant flow and enhances system efficiency.
-
Variable-Speed ECM Blower Motor – Delivers efficient airflow control, improved comfort, and optimized system performance.
-
Constant CFM Airflow Control – Maintains consistent airflow across a wide range of static pressure conditions regardless of duct system variations.
-
Built-In CFM Indicator – Provides airflow monitoring for easier system setup and service diagnostics.
-
Adjustable Low-CFM Fan-Only Operation – Allows thermostat-controlled reduced airflow settings for efficient ventilation and improved comfort.
-
Enhanced Humidity Control – Improves moisture removal and indoor comfort by optimizing coil and airflow operation.
-
Smart Thermostat Compatibility – Compatible with Goodman brand smart thermostats for advanced system control and monitoring.
-
Fault Recall Function – Stores the six most recent system faults for easier troubleshooting and maintenance.
-
AHRI Certified and ETL Listed – Meets recognized industry standards for performance, safety, and reliability.
-
UL 60335-2-40 Compliant – Designed to meet updated safety requirements for HVAC equipment using flammable refrigerants.
Cabinet Features
-
Rigid SmartFrame™ Cabinet Design – Provides a strong, durable cabinet structure engineered for long-term HVAC performance.
-
Low Cabinet Air Leakage – Cabinet air leakage is less than 2.0% at 1.0 inch H2O and less than 1.4% at 0.5 inch H2O when tested according to ASHRAE Standard 193.
-
Flexible Installation Configurations – Supports both horizontal and vertical installation options for greater application versatility.
-
Compact 21-Inch Cabinet Depth – Designed for easier attic access and installation in tight spaces.
-
Electric Heater Kit Compatibility – Supports field-installed 3kW to 25kW electric heater kits for additional heating capability.
-
Durable Thermoplastic Drain Pan – Features DecaBDE-free construction with secondary drain connections for improved moisture management.
-
Humidity-Resistant Cabinet Design – Screw-less sides and back help reduce condensation when installed in humid environments.
-
Foil-Faced Internal Insulation – Helps minimize cabinet condensation and improves thermal efficiency.
-
Galvanized Leather Grain Embossed Finish – Provides a durable exterior coating for improved corrosion resistance.
-
Glue-Less Insulation Retention – Simplifies manufacturing while maintaining secure internal insulation placement.
-
Tool-Less Filter Access – Allows quick and convenient filter maintenance without specialized tools.
