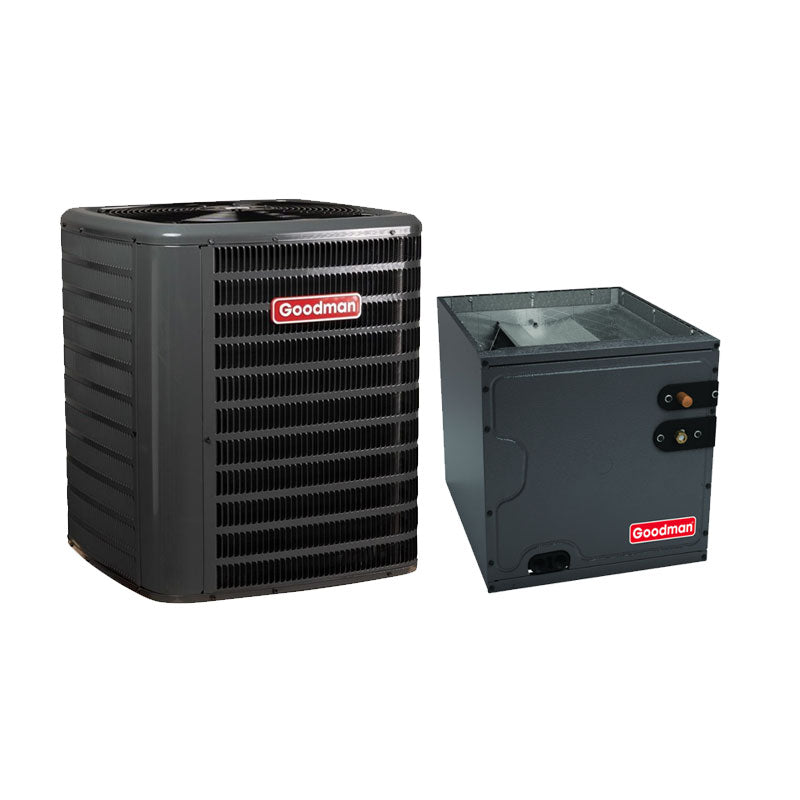

Name: Goodman 4 Ton R32 Split AC & Evaporator Coil System 14.3 SEER2 Vertical
Brand: Goodman
SKU: GLXS4BA4810 CAPTA6030C3
Price: 3465.0 USD
Availability: InStock

Goodman 4 Ton R32 Split AC & Evaporator Coil System 14.3 SEER2 Vertical

by Goodman

SKU GLXS4BA4810 CAPTA6030C3

FREE Shipping (5-7 Business Days)

No Sales Tax (Excludes CA)

Satisfaction or Return within 30 Days

Need Help? Call: (833) 658-3387

$3,465.00 - $3,465.00

$3,465.00

$3,465.00 - $3,465.00

$3,465.00

FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Your Webpage

Why Buy From Us:

Product Accessories

DESCRIPTION

Goodman 4 Ton R32 Air Conditioner Condenser 14.3 SEER2 Single Stage GLXS4BA4810

This HVAC system delivers exceptional cooling and energy efficiency with its high-efficiency scroll compressor. It features a high-density foam sound blanket for quiet operation and advanced Copeland CoreSense Technology for reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system includes a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-access service valves. Safety features consist of a secure enclosed contactor and a high-pressure switch. AHRI certified for performance and ETL listed for safety, this system ensures reliable and efficient cooling.

Refrigerant Type: R-32
Unit Height: 35.75 in
Unit Width: 35.5 in
Communication Feature Type: Non-Communicating
Cooling Capacity Nominal: 48000 Btu/H
Max Overcurrent Protection: 40 A
Power Phase: 1 Ph
Power Voltage: 208/240 V
Compressor Stages: Single Stage
Compressor Type: Scroll
Unit Weight: 73 lb
Tonnage: 4
Model Efficiency: 14.3 SEER2
Unit Depth: 35.5 in

Product Features For R32 Goodman 4 Ton Split System Air Conditioner

High-efficiency scroll compressor for optimal cooling performance
High-density foam compressor sound blanket ensures quieter operation
Advanced Copeland® CoreSense™ Technology enhances reliability and diagnostics
Fully charged for 15' of tubing length simplifies installation
Copper tube/enhanced aluminum fin coil with 5mm diameter for improved heat exchange
Factory-installed filter drier protects the system from moisture and contaminants
Sweat connection service valves with easy access to gauge ports for convenient maintenance
Enclosed contactor with lug connection for added safety
High-pressure switch for system protection
Capacitors with extended life for reliable performance
AHRI Certified for verified energy efficiency
ETL Listed for safety compliance

Cabinet Features:

Removable grille-style top design compliant with UL 60335-2-40 for easy access
Venturi design increases airflow velocity for improved efficiency
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval for durability
Wire fan discharge grille enhances airflow efficiency
Steel louver coil guard provides added protection
Top and side maintenance access for convenient servicing
Single-panel access to controls with space for field-installed accessories
Meets the 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available)

Brand	Goodman	Model #	GLXS4BA4810
Refrigerant Type	R-32	SEER 2	14.3
Cooling Capacity Nominal	48,000 Btu/H	Unit Depth	35.5 in
Unit Height	35.75 in	Unit Width	35.5 in
Max Overcurrent Protection	40 A	Decibels (dBA)	73
Power Voltage/Phase	208/230 V 1 Phase	Compressor Stages	Single Stage
Compressor Type	Scroll	Motor Type	PSC
Liquid Line Size	⅜"	Suction Line Size	1⅛"
Valve Connection Type	Sweat	Refrigerant Charge	91
Electrical Conduit Size	½" or ¾"	Minimum Circuit Ampacity 4	25.2
Shipping Weight	226	Ton	4

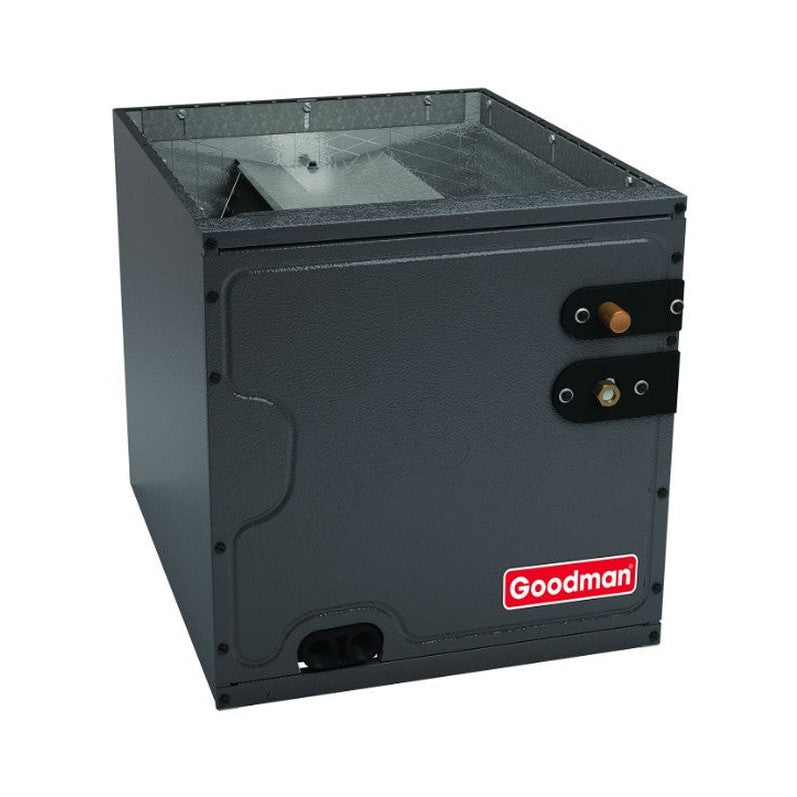

Goodman 3.5 to 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3

This high-performance R-32 evaporator coil features all-aluminum construction with integrated thermal expansion valves for cooling and heat pump use. It offers flexible installation in vertical or horizontal configurations, and its compact 21-inch depth allows easy access in tight spaces like attics. The foil-faced insulation reduces condensation, while the rust-resistant drain pan ensures durability with extra drainage connections. A galvanized finish boosts longevity, and the easy-to-remove drain pan rails simplify maintenance. AHRI Certified and ETL Listed, this coil delivers reliability, energy efficiency, and hassle-free installation.

Refrigerant Type: R-32
Unit Height: 30 in
Unit Width: 21 in
Cased/Uncased: Cased
Tonnage: 5
Coil Application: Upflow/Downflow
Unit Depth: 21 in

Product Features For Goodman 3.5-5 Ton R32 Vertical Evaporator Coil

All-aluminum evaporator coil for high performance and durability
Optimized for R-32 refrigerant, including specialized circuits and manifolds
Long-lasting R-32 sensor ensures reliable operation
Factory-installed thermal expansion valves for efficient cooling and heat pump applications
Standardized copper suction tube stub length for easy installation
Check flowrator for both cooling and heat pump efficiency
Suitable for vertical installations
21" depth allows easier access in attic spaces
Single front access panel for convenient maintenance
Foil-faced insulation reduces cabinet condensation
Galvanized, leather grain-embossed finish for added durability
Rust-resistant, thermoplastic drain pan with a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drainage connections
Drain pan rails allow easy coil removal and repositioning
UV-resistant drain pan for long-lasting performance
AHRI Certified for energy efficiency standards
ETL Listed for safety compliance

Brand	Goodman	Model #	CAPTA6030C3
Type	Cased Evaporator Coil	Nominal Ton	3.5 to 5 Ton
Refrigerant Type	R-32	Suction Valve Size	⅞"
Liquid Valve Size	⅜"	Height	30"
Width	21"	Depth	21''
Shipping Weight (lbs.)	66	Application	Vertical

WARRANTY COVERAGE

Goodman 4 Ton R32 Air Conditioner Condenser 14.3 SEER2 Single Stage GLXS4BA4810

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

Goodman 3.5 to 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3

Warranty Type	Residential	Multi-Family	Commercial
Standard Warranty	5 year parts	5 year parts	5 year parts
Registered Warranty	10 year parts	10 year parts	5 year parts

PRODUCT DOCUMENTS & TECHNICAL SPECIFICATIONS

Goodman 4 Ton R32 Air Conditioner Condenser 14.3 SEER2 Single Stage GLXS4BA4810

GLXS4B - Specification Sheets

Warranty Certificate

GLXS4B - Repair Parts

Goodman 3.5 to 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3

Installation Manual

CAPTA Repair Parts

Indoor Coils Specification Sheets

Service Manual

Warranty Certificate
