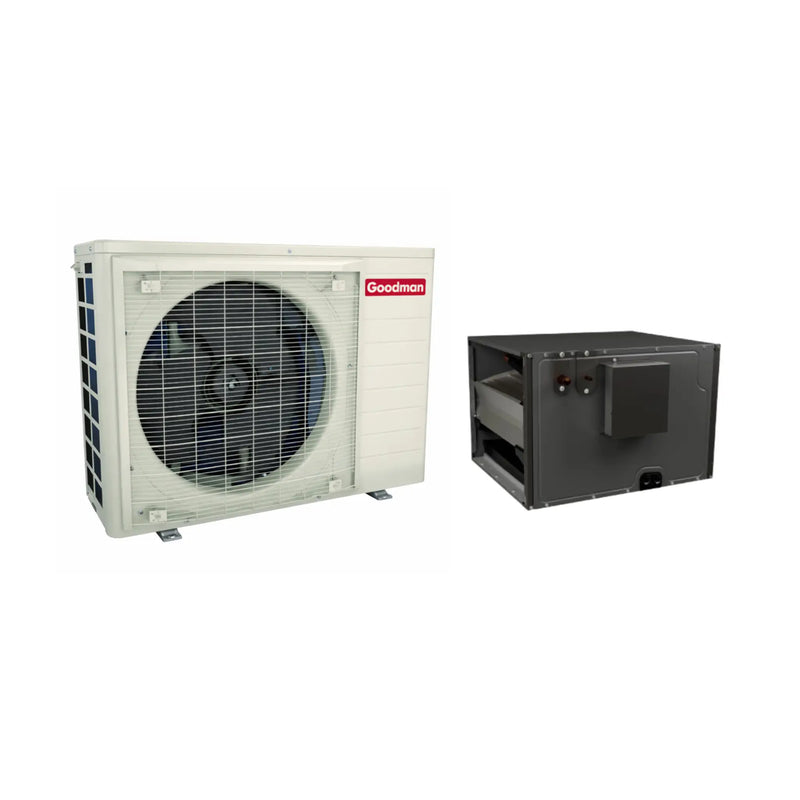

Goodman 5 Ton 16.2 SEER2 Inverter Heat Pump Coil System 24.5" Horizontal

By Goodman | Model: GZV6SA6010 / CHPEA6030D3 | ID: 102380
Manufactured in the USA
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Most Products In Stock - Call or Text (833) 658-3387 for availability
$5,371.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

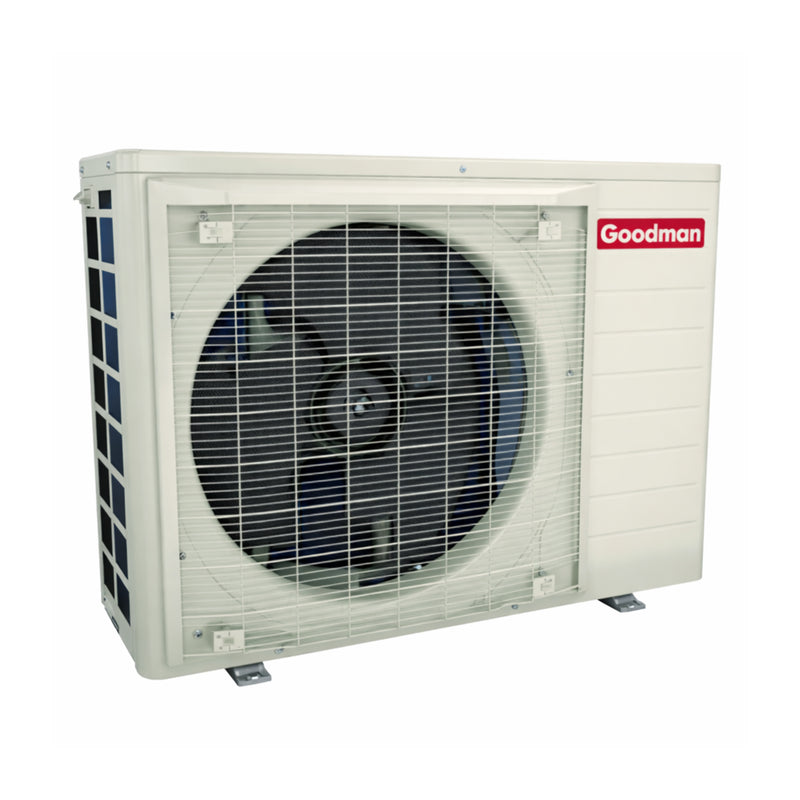

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

The Goodman GZV6SA6010 is a high-efficiency 5-ton side discharge heat pump condenser engineered for reliable performance and advanced comfort control. Featuring a variable-speed inverter compressor and quiet digitally commutated fan motor, this unit delivers consistent heating and cooling while maintaining low sound levels. Designed for use with R-32 refrigerant, it meets modern efficiency standards and offers enhanced diagnostics, durability, and installation flexibility for residential and light commercial applications.

Key Features

  • Variable-Speed Inverter Swing Compressor for Precise Capacity Control
  • Quiet Digitally Commutated Fan Motor with Enhanced Acoustical Comfort
  • High-Density Compressor Sound Blanket
  • Compatible with Goodman GTST Connected Thermostat
  • Advanced Proprietary Control Algorithmic Logic
  • Quiet Mode with Up to Three Selectable Sound Levels (as low as 45 dBA)
  • Field-Selectable Boost Mode for High Load Conditions
  • Diagnostic Indicator Lights with Seven-Segment LED Display and Fault Code Storage
  • Bi-Flow Filter Drier (Field Installed)
  • Coil and Ambient Temperature Sensors with Suction Pressure Transducer
  • AHRI Certified and ETL Listed

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Durability
  • Wire Fan Discharge Grille
  • Top and Side Service Access Panels
  • Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored

This condenser is ideal for homeowners seeking quiet operation, advanced inverter technology, and dependable year-round comfort in a compact side-discharge design.

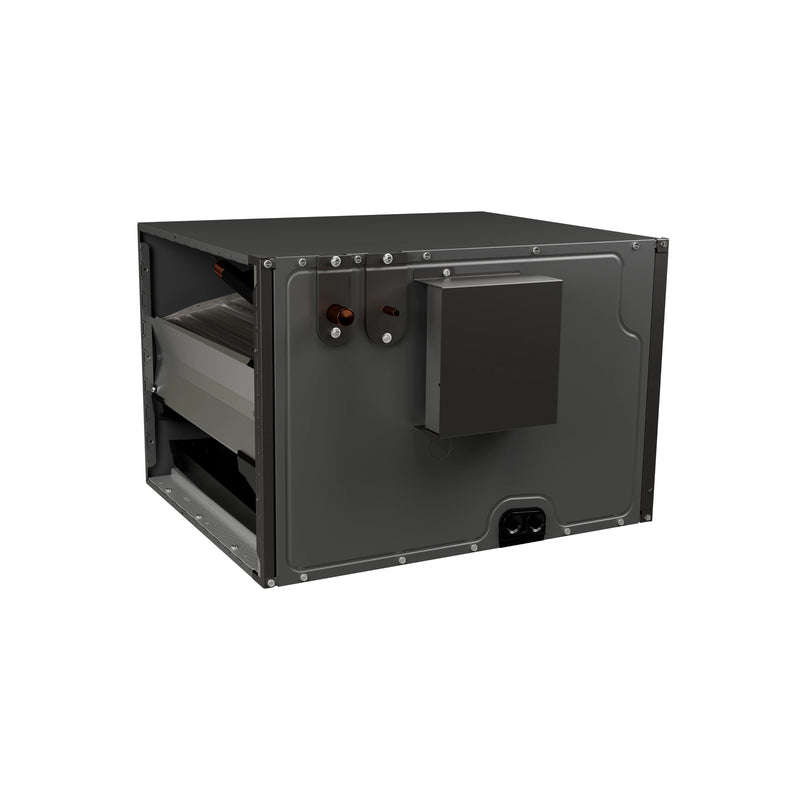

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

The Goodman CHPEA6030D3 is a 5-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.

Key Features

  • Factory-Installed Electronic Expansion Valve (EEV) for Precise Refrigerant Control
  • Optimized for Use with R-32 Refrigerant Systems
  • Horizontal Airflow Configuration
  • 21" Cabinet Depth for Easier Attic Access
  • Galvanized Steel Cabinet with Leather-Grain Embossed Finish
  • Foil-Faced Insulation Minimizes Condensation and Sound
  • Single Front Access Panel for Simplified Maintenance

This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.

View More Coil Systems

Specifications

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

Brand Goodman SKU GZV6SA6010
Tonnage 5 Ton Refrigerant Type R-32
SEER2 16.6 Model Efficiency 16.2 SEER2
Heating Capacity 60,000 BTU/H Compressor Type Variable-Speed Inverter
Power Voltage 208/230 V Power Phase 1 Phase
Max Overcurrent Protection 40 A Communication Type Non-Communicating
Unit Width 37 in Unit Height 39 in
Unit Depth 12.625 in Unit Weight 179 lb

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

Brand Goodman Model Number CHPEA6030D3
Product Type Evaporator Coil Product Line CHPTA
Coil Style A Coil Tonnage 5 Ton
Cooling Capacity 60000 BTU Refrigerant Type R-32
Air Flow Direction Horizontal Casing Cased
TXV Installed Yes Suction Connection Size 7/8 Inch
Liquid Connection Size 3/8 Inch Cabinet Width 24.5 Inches
Product Height 24.5 Inches Product Width 30 Inches
Product Depth 21 Inches Weight 67 Pounds
Shipping Weight 82 Pounds AHRI Certified Yes
ETL Listed Yes ISO Certified Yes
Warranty 10 Limited Years
Warranty

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years
Documents

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

Application Guide

Installation Manual

GZV6SA Specification

Warranty Certificate

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

Installation Manual

Specifications Sheet

Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
