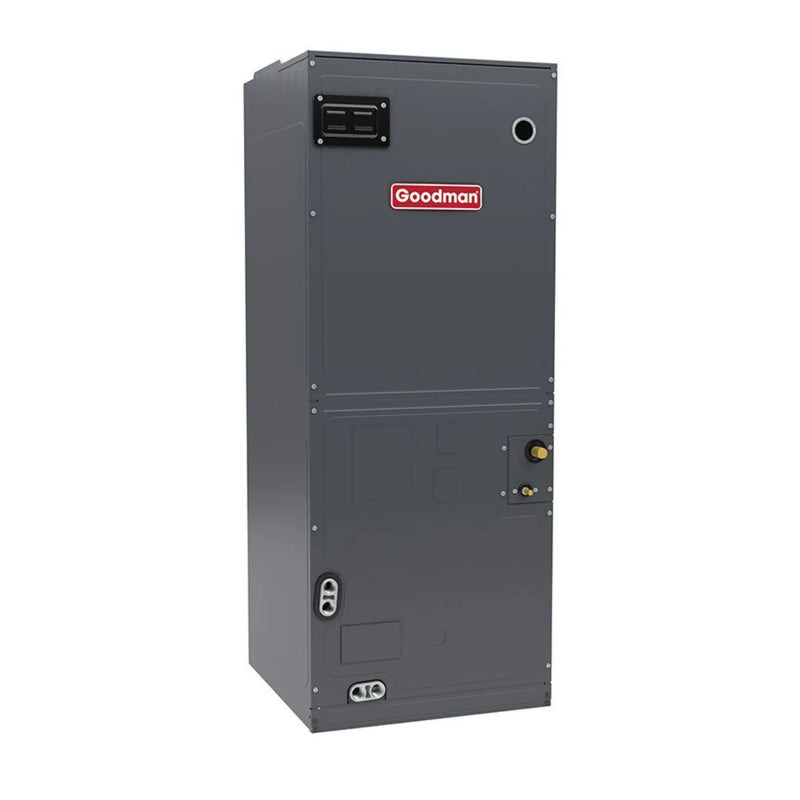

Goodman AHVE60DP0300

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 120V R32

By Goodman | Model: AHVE60DP0300 | ID: 101622
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,399.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

This 115V AHVE ducted multi-position air handler is a 5-ton unit with a variable-speed ECM blower motor in a compact 24.5-inch cabinet designed for horizontal or vertical installation. It features an electronic expansion valve (EEV) for cooling and heat pump applications, an all-aluminum 7 mm evaporator coil, and delivers constant CFM across a wide range of static pressures for consistent comfort and improved humidity control. The unit is ComfortNet compatible, works with the Daikin One+ smart thermostat, and is built with a low-leakage, insulated cabinet to reduce air loss and condensation. It is AHRI certified, ETL listed, and includes a 21-inch cabinet depth for easier attic access.

Key Features & Cabinet Features:

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • Variable-speed ECM blower motor with constant CFM control
  • All-aluminum 7 mm evaporator coil
  • ComfortNet compatible; supports Daikin One+ smart thermostat
  • Low cabinet air leakage per ASHRAE Standard 193
  • Improved humidity control and adjustable low CFM fan-only operation
  • Horizontal or vertical installation capability
  • 21" cabinet depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back to help reduce condensation in humid environments
  • Foil-faced internal insulation to minimize cabinet condensation
  • Galvanized, leather grain-embossed cabinet finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

View More Air Handlers

Specifications

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

Brand Goodman SKU AHVE60DP0300
Refrigerant Type R-32 Cooling Capacity 60,000 Btu/H
Unit Height 58 in Unit Width 24.5 in
Unit Depth 21 in Unit Weight 167 lb
Communication Feature ComfortNet Compatible Power Phase 1 Ph
Power Voltage 120 V Motor Speed Type Variable Speed ECM
Max Overcurrent Protection 15/15 A Warranty 5-Limited Years Standard, 10-Limited Years Registered
Warranty

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years
Documents

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

Installation Manual

Specification Sheet

Warranty Certificate
