Goodman GR9S960805CU

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx 21" Width Upflow/Horizontal

By Goodman | Model: GR9S960805CU | ID: 101365
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$3,343.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

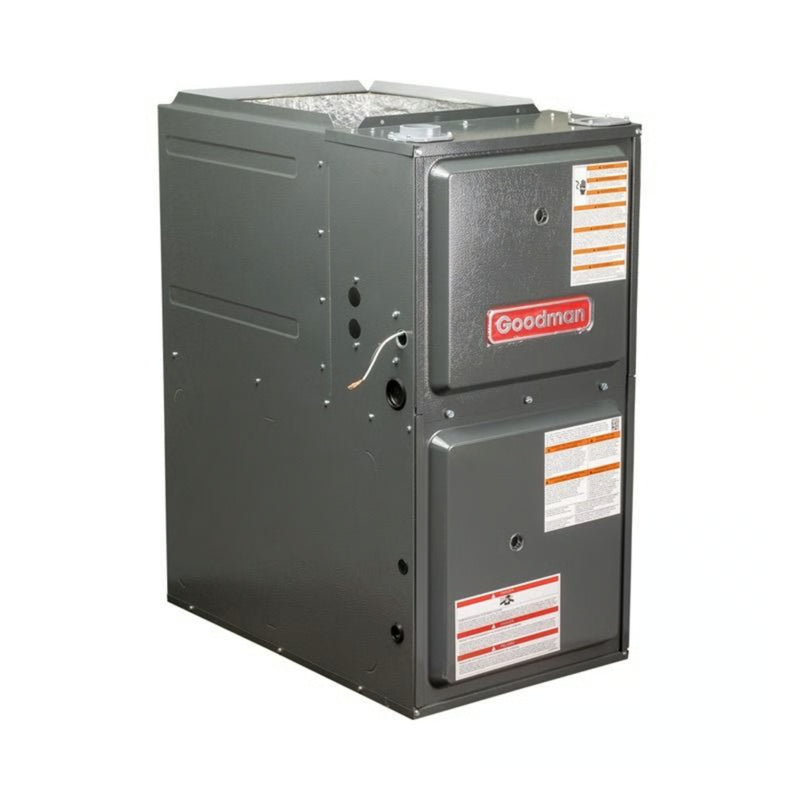

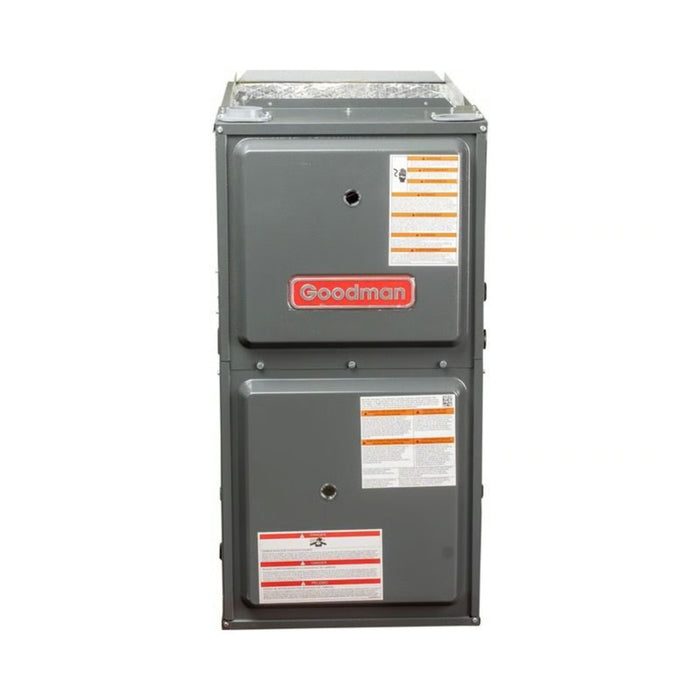

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx 21" Width Upflow/Horizontal GR9S960805CU

The Goodman GR9S960805CU Gas Furnace delivers high-performance heating with a focus on energy efficiency and compliance. With 80,000 BTUs of heat and a 96% AFUE rating, this single-stage unit is perfect for small to medium-sized homes seeking consistent warmth. Its ultra-low NOx design meets California emissions standards, making it suitable for environmentally regulated areas. Built with a 9-speed ECM blower motor, durable hot surface igniter, and self-diagnostic control board, this furnace offers both comfort and peace of mind. Designed for upflow or horizontal configurations, the GR9S960805CU simplifies installation with universal compatibility and flexible application options.

Key Features

  • 80,000 BTU capacity ideal for small to medium homes
  • 96% AFUE for high fuel efficiency and energy savings
  • Ultra-Low NOx compliant – approved for California low-emission zones
  • Single-stage gas valve ensures consistent heating output
  • 9-speed ECM blower motor for enhanced airflow control and quiet performance
  • Natural gas operation; compatible with LP conversion kit (sold separately)
  • Can be installed in upflow or horizontal configurations
  • Heavy-gauge steel cabinet improves sound insulation and heat retention
  • Hot surface igniter increases reliability and reduces maintenance
  • Self-diagnostic control board simplifies maintenance and service
  • Color-coded low-voltage terminals streamline the installation process
  • Lifetime heat exchanger warranty with 10-year parts and unit replacement coverage (with registration)

This model is an excellent choice for those seeking an efficient, low-emission heating system that doesn't compromise on performance or installation flexibility.

View More Furnaces

Specifications

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx 21" Width Upflow/Horizontal GR9S960805CU

Brand Goodman SKU GR9S960805CU
Weight (in lbs) 145 AHRI Certificate Number 215224975
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Plastic / PVC
Product Features New Refrigerant Compliant, Ultra-Low NOx Furnace Efficiency / AFUE 96%
Heating BTU 80,000 Blower Motor 9 Speed - ECM
Maximum CFM 2000 Horsepower 1 HP
Configuration Upflow/Horizontal Energy Star Yes
Filter Size 20" x 25" Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 25 Amps Min. Breaker Size 16.7 Amps
Low NOx Ultra Low NOx Burner Stages Single
Fuel Type Natural Gas Height 34.5"
Width 21" Depth 28.75"
Warranty Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Warranty

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx 21" Width Upflow/Horizontal GR9S960805CU

Warranty Type Heat Exchanger Unit Replacement Parts
Standard Warranty N/A N/A 5 Years
Registered Warranty Lifetime (Manufacturer) 10 Years 10 Years
Documents

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx 21" Width Upflow/Horizontal GR9S960805CU

GR9S96-U Installation Manual

GR9S96-U Specifications Sheet

Goodman Furnace Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
