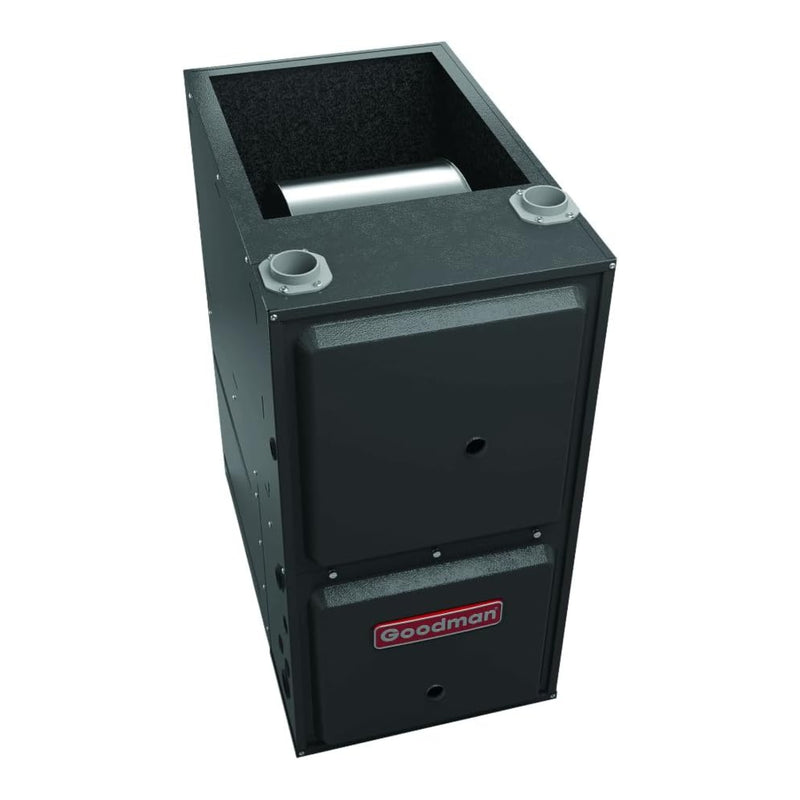

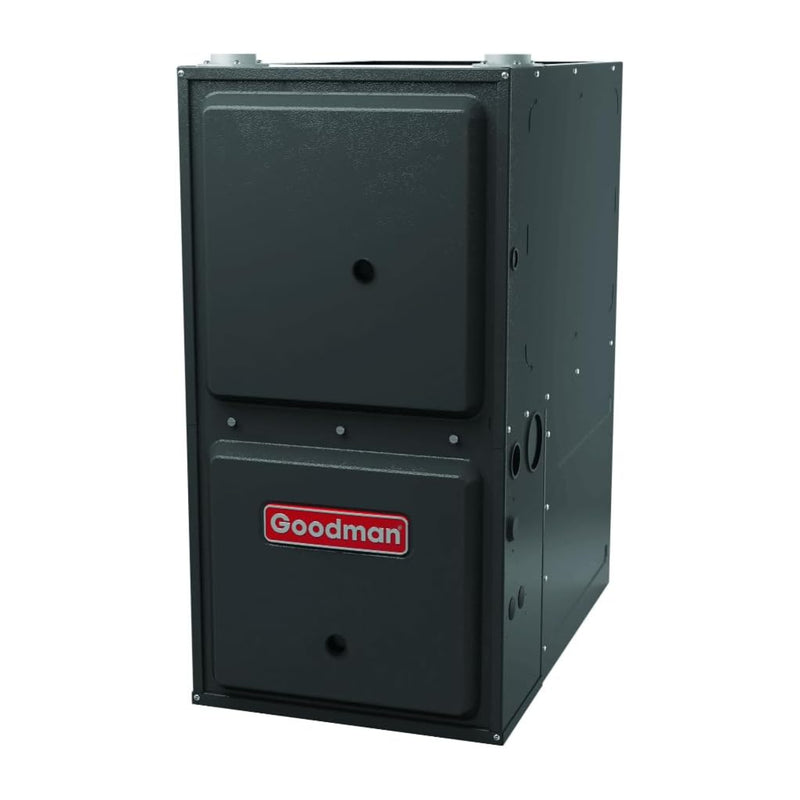

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

By Goodman | SKU: GD9T961005CN | ID: 100921
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,682.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

The Goodman Two-Stage R32 Gas Furnace GD9T961005CN delivers 100,000 BTU with 96% AFUE efficiency, ensuring quiet, economical heating. Featuring a multi-speed ECM blower, heavy-duty aluminized-steel and stainless-steel heat exchangers, and a two-stage gas valve, it provides optimal air circulation and enhanced heat transfer. This energy-efficient furnace includes self-diagnostic controls, low NOx compliance, and versatile installation options. It's ideal for downflow or horizontal configurations, offering reliable comfort and long-term performance. Not suitable for some California regions.

  • Unit Height: 34.5 in
  • Unit Width: 21 in
  • AFUE: 96 %
  • Two-Stage
  • 100,000 BTU
  • 2000 CFM
  • Installation Configuration: Downflow/Horizontal
  • Max Overcurrent Protection: 25 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 140 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28.75 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Two Stage R32 Gas Furnace GD9T961005CN

  • Energy-Efficient Multi-Speed ECM Blower Motor: Optimizes performance and reduces energy consumption.
  • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Offers durability and reliable heat transfer.
  • Stainless-Steel Secondary Heat Exchanger: Enhances overall heat transfer efficiency.
  • Two-Stage Gas Valve: Ensures quiet, economical heating and reliable operation.
  • Durable Silicon Nitride Igniter: Provides long-lasting, consistent ignition.
  • Quiet Two-Speed Induced Draft Blower: Minimizes noise while ensuring smooth airflow.
  • Self-Diagnostic Control Board: Includes fault code history and LED output for easy troubleshooting.
  • Color-Coded Low-Voltage Terminals: Simplifies installation of air cleaners and humidifiers.
  • Low Continuous Fan Speed: Offers quiet air circulation for enhanced comfort.
  • California 40 ng/J Low NOx Emissions Compliant: Meets California's stringent emissions standards.
  • Not Compatible with SCAQMD & SJVAPCD: Not for use in specific California air quality districts.
  • AHRI Certified & ETL Listed: Ensures top-tier quality and performance.
  • Multi-Position Installation Flexibility:
    • GR9T96: Upflow, horizontal left or right
    • GD9T96: Downflow, horizontal left or right
  • Certified for Direct or Non-Direct Venting: Supports versatile venting configurations.
  • Easy-to-Install Top Venting: Optional side venting for GR9T96/upflow models.
  • Left or Right Gas & Electrical Service Connections: Flexible installation for ease of use.
  • Cabinet Air Leakage (QLeak) ≤ 2%: Ensures minimal energy loss for greater efficiency.
  • Heavy-Gauge Steel Cabinet with Durable Finish: Built for long-term durability and protection.
  • Fully Insulated Heat Exchanger & Blower Section: Promotes better heat retention for energy savings.
  • Airtight Solid Bottom or Side Return: Features easy-cut tabs for quick removal in bottom air-inlet applications.

View More Furnaces

Specifications

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

Brand Goodman SKU GD9T961005CN
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 AHRI Certificate Number 215225022
Airflow Direction Downflow/Horizontal Exhaust Flue Requirement Plastic / PVC
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
Heating BTU Input 100,000 High Fire Output 96,000
Blower Motor 9-Speed - ECM Maximum CFM 2000
Horsepower 1 HP Configuration Downflow/Horizontal
Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 25 Amps Min. Breaker Size 14.4 Amps
Burner Stages Two Fuel Type Propane, Natural Gas
Height 34.5" Width 21"
Depth 28.75" No. of Burners 5
Vent Diameter 2" - 3" Shipping Weight 140
UPC 633190210258
Warranty

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman 96% AFUE 100K BTU Gas Furnace R32 Two Stage Downflow/Horizontal

GD9T96 Installation Manual

GD9T96 Specification Sheets

GD9T96 Parts Manual

GD9T96 Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
