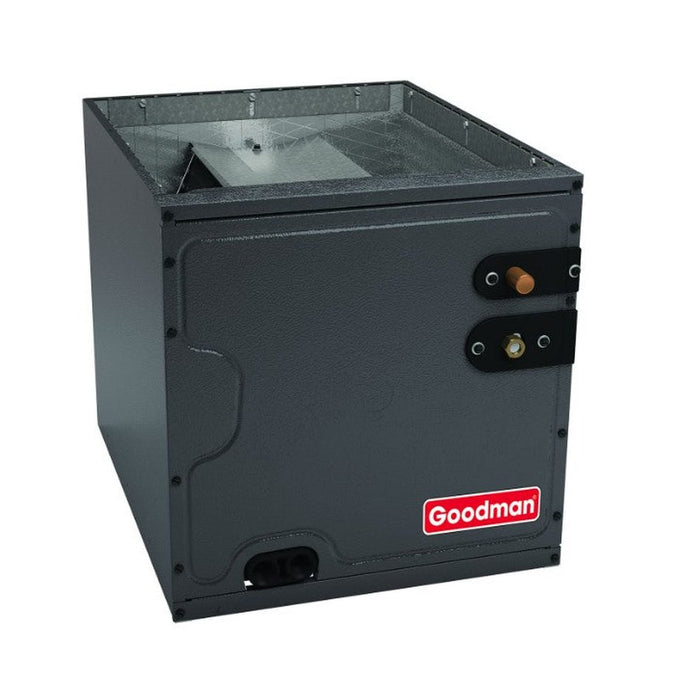

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

By Goodman | SKU: CAPFA4226C3 | ID: 100063
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$872.00 + SHIPPING

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

The All-Aluminum evaporator coil is optimized for R-32 refrigerant, featuring a lifespan-matched R-32 sensor and a factory-installed metering device (piston). It has a standardized copper suction tube stub length and a 21-inch depth for easy attic access. The coil includes a single front access panel, foil-faced insulation to reduce condensation, and a galvanized, leather grain-embossed finish. The rust-resistant, thermoplastic drain pan has a low water-retention design, secondary drain connections, and UV resistance. It’s AHRI certified and ETL listed, with drain pan rails for easy coil removal and repositioning.

  • 21" Depth for Easier Attic Access: Compact 21" depth for effortless attic access, ideal for HVAC system installation in tight spaces.

  • All-Aluminum Evaporator Coil: Durable all-aluminum evaporator coil for enhanced heat transfer efficiency and long-lasting performance.

  • Optimized for R-32 Refrigerant: Designed for R-32 refrigerant, including specialized circuits and manifolds for improved energy efficiency and eco-friendliness.

  • R-32 Sensor for Coil Longevity: Integrated R-32 sensor extends the lifespan of the evaporator coil, ensuring optimal performance and reliability.

  • Factory-Installed Optimized Metering Device (Piston): Pre-installed, optimized piston metering device for precise refrigerant flow and better system performance.

  • Standardized Copper Suction Tube Stub Length: Industry-standard copper suction tube stub length for easy integration with various HVAC systems.

  • Single Front Access Panel: Single front access panel for easy serviceability and efficient maintenance.

  • Foil-Faced Insulation to Reduce Cabinet Condensation: High-performance foil-faced insulation helps reduce cabinet condensation and improves overall system efficiency.

  • Suitable for Vertical Applications: Designed for vertical installations, perfect for constrained spaces or compact areas.

  • Galvanized, Leather Grain-Embossed Finish: Durable galvanized finish with a leather grain-embossed texture, offering both protection and an attractive appearance.

  • Rust-Resistant Thermoplastic Drain Pans: Rust-resistant, thermoplastic drain pans with a low water-retention design for durability and reliable drainage.

  • DecaBDE-Free Thermoplastic Drain Pan with Secondary Drain Connections: Eco-friendly DecaBDE-free thermoplastic drain pans, featuring secondary drain connections to prevent overflow and water damage.

  • Drain Pan Rails for Easy Coil Removal and Repositioning: Convenient drain pan rails designed for easy coil removal and repositioning, simplifying maintenance.

  • UV-Resistant Drain Pan: UV-resistant drain pans for added durability and protection from environmental wear.

  • AHRI Certified: AHRI certified to meet rigorous industry standards for energy efficiency and system performance.

  • ETL Listed: ETL listed, ensuring the product meets safety standards and is verified for quality and performance in HVAC applications.

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

Brand Goodman Model # CAPFA4226C3
Refrigerant Type R-32 Old Model CAPFA4226C4
Unit Height 26 in Unit Width 21 in
Style/ Position / Casing A-Coil / Vertical / Cased Ton 3.5
Liquid / Suction Line ⅜" / ⅞" Shipping Weight 54

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman R32 3.5 Ton Cased Evaporator Coil Vertical With 21" Cabinet Orifice

Installation Manual

Specification Sheets

Parts Manual

Warranty Information

Nomenclature
