Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32

Name: Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32
Brand: Goodman
SKU: GR9S801005CX
Price: 1519.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By Goodman | Model: GR9S801005CX | ID: 100948

✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$1,519.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

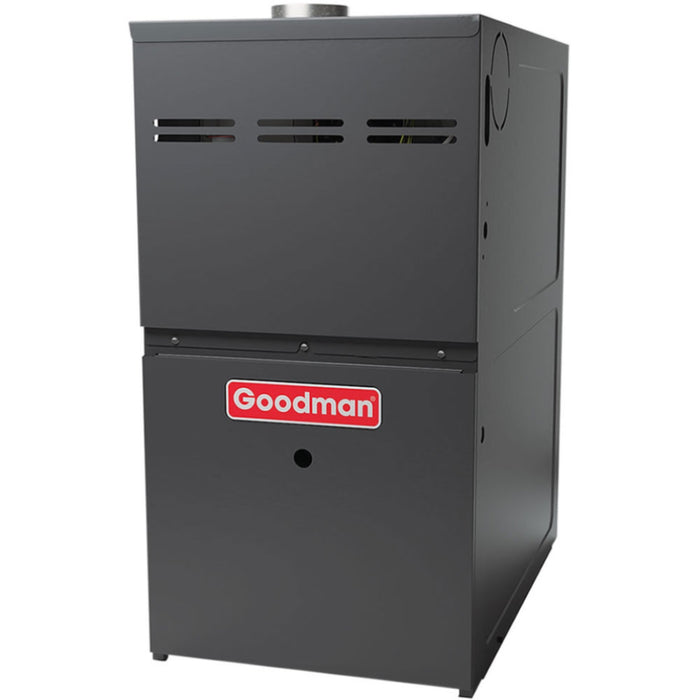

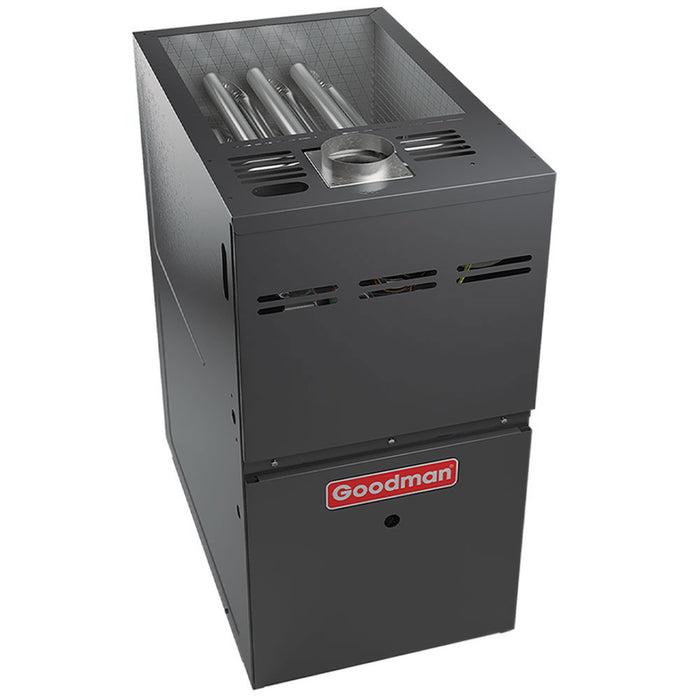

Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32 GR9S801005CX

The Goodman GR9S801005CX 80% AFUE R32 Gas Furnace delivers powerful, efficient, and environmentally responsible heating performance. With a 100,000 BTU heating capacity and a multi-speed ECM blower motor, this furnace ensures consistent comfort, reduced energy consumption, and quieter operation. Engineered for reliability, it features a heavy-duty aluminized steel heat exchanger, durable hot-surface igniter, and self-diagnostic control board for simplified maintenance and service. Designed for upflow and horizontal installations, the GR9S801005CX provides flexibility, efficiency, and compliance with California’s Low NOx emission standards.

Key Specifications

Heating Capacity - 100,000 BTU input with efficient, even heat distribution for medium to large homes.
AFUE Efficiency - 80% Annual Fuel Utilization Efficiency for reliable, cost-effective heating.
Airflow - 2000 CFM multi-speed ECM blower motor for improved airflow and energy savings.
Heat Exchanger Type - Dual-diameter aluminized steel tubular design for durability and high thermal efficiency.
Power Requirements - 115V, single-phase, 15A maximum overcurrent protection.
Installation Options - Supports upflow and horizontal configurations; left or right gas and electrical service connections.
Dimensions - Height: 33-3/8", Width: 21", Depth: 28"; Weight: 132 lbs.

Key Features

Low NOx Burner - Meets California Low NOx emission requirements, reducing harmful nitrogen oxides for cleaner operation.
Single-Stage Gas Valve - Delivers dependable performance and consistent heating output.
Durable Hot-Surface Igniter - Ensures reliable ignition and long service life with minimal maintenance.
Quiet Draft Inducer - Single-speed draft inducer promotes smooth airflow and quieter performance.
Self-Diagnostic Control Board - Monitors system performance and simplifies troubleshooting.
Color-Coded Wiring - Low-voltage terminals streamline installation and reduce setup time.
Heavy-Gauge Steel Cabinet - Foil-faced insulation and baked-enamel finish improve durability and energy retention.

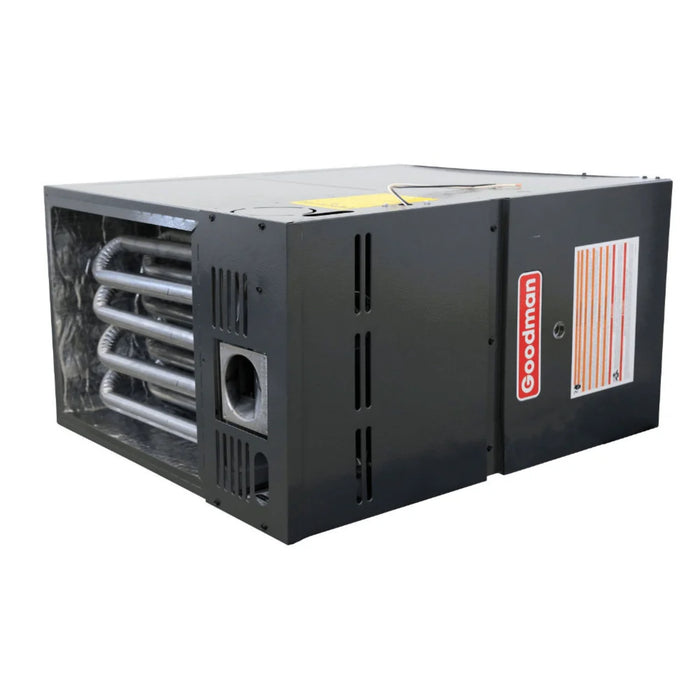

Flexible Installation - GR9S80 models support upflow/horizontal left or right; GD9S80 models support downflow/horizontal left or right.
Certifications - AHRI Certified and ETL Listed for safety, performance, and efficiency compliance.

California Compliance Notice

This Goodman GR9S801005CX Low NOx Furnace is compliant with California’s standard Low NOx regulations and is designed to reduce nitrogen oxide emissions. However, it cannot be installed in the following counties that require Ultra-Low NOx furnaces.

Dependable Comfort and Efficiency

The Goodman 80% AFUE R32 Gas Furnace provides reliable comfort, efficiency, and quiet performance with environmentally conscious Low NOx technology. Its combination of durable construction, intelligent diagnostics, and flexible installation options makes it an excellent choice for homeowners seeking dependable warmth and long-term energy savings.

View More Furnaces

Specifications

Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32 GR9S801005CX

Brand	Goodman	SKU	GR9S801005CX
Type	Gas Heat	Category	Gas Furnaces
Refrigerant Type	R-32	AHRI Certificate Number	215358062
Airflow Direction	Upflow/Horizontal	Exhaust Flue Requirement	Metal
Product Features	Low NOx, New Refrigerant Compliant	Furnace Efficiency / AFUE	80%
Heating BTU	100,000	LP/Natural Gas Output	80,000
Blower Motor	9-Speed - ECM	Maximum CFM	2000
Horsepower	3/4 HP	Configuration	Upflow/Horizontal
Electrical	115 V. 1 Phase 60 Hz	Max Breaker Size	15 Amps
Min. Breaker Size	11.3 Amps	Low NOx	Yes
NOx	X = < 40 NG/J NOx	Burner Stages	Single
Fuel Type	Propane, Natural Gas	Height	33 3/8"
Width	21"	Depth	28"
No. of Burners	5	Vent Diameter	4"
Shipping Weight	132	Temperature Rise Range (°F)	35-65
Warranty	Lifetime Heat Exchanger and 10 Years Parts with Online Registration
