Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

By Goodman | SKU: GR9S801205DN | ID: 100949
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,746.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

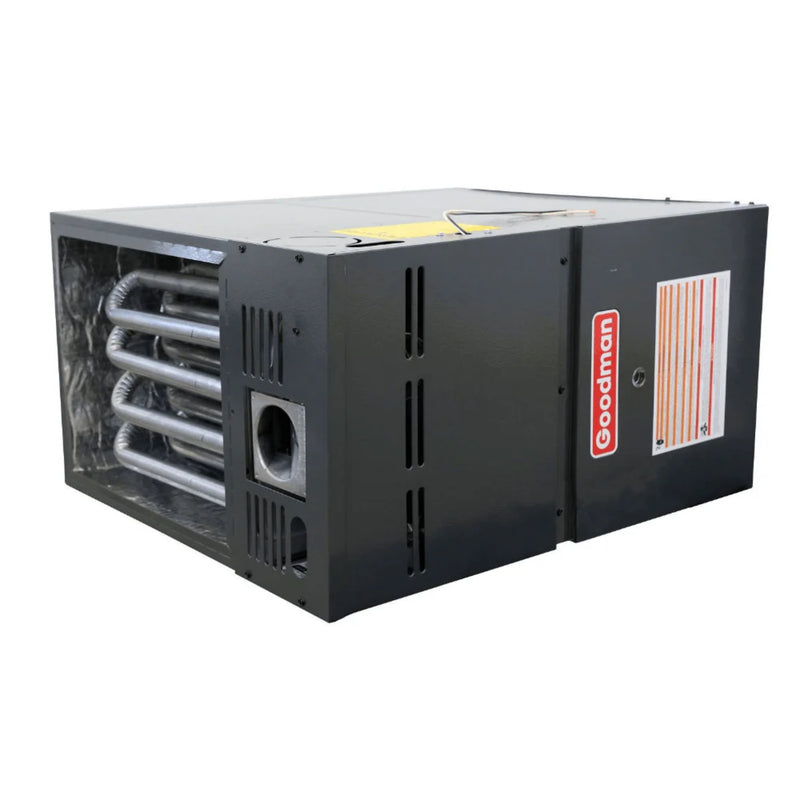

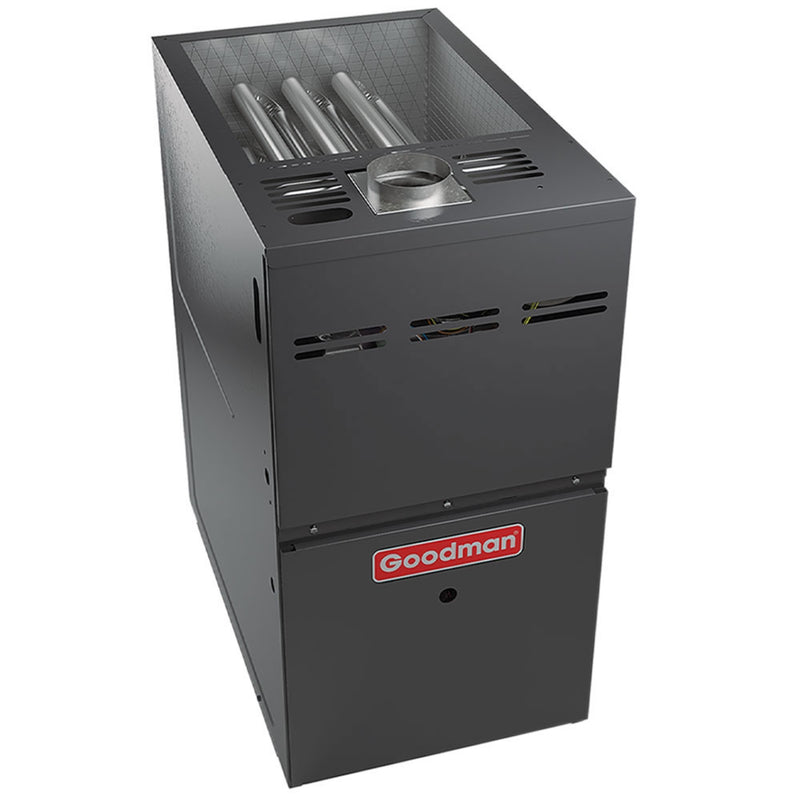

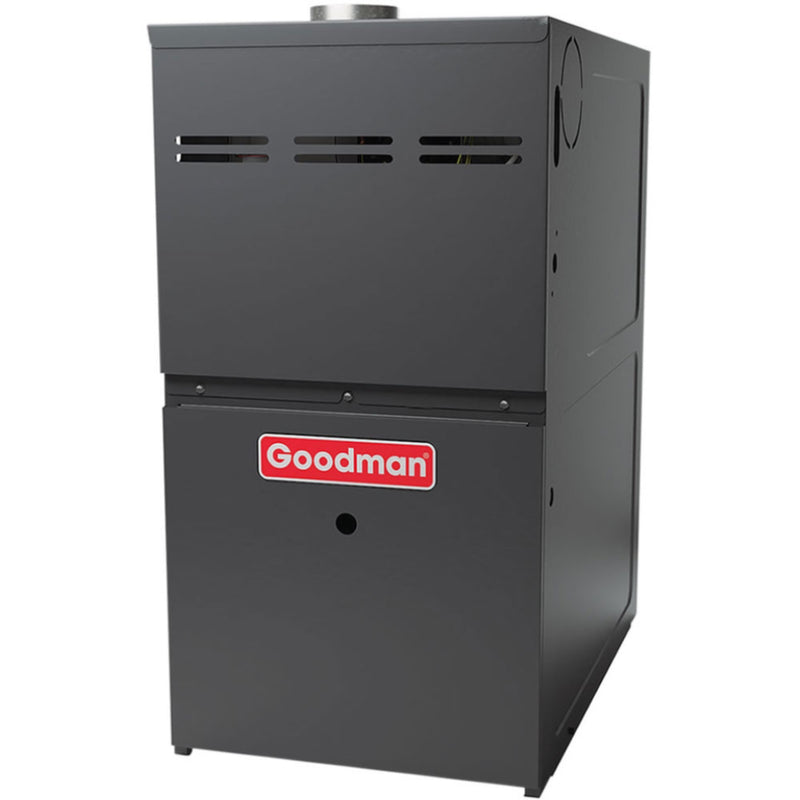

Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

The Goodman 80% AFUE R32 Gas Furnace delivers 120,000 BTU of reliable heating with a nine-speed ECM blower motor for consistent and energy-efficient airflow. Designed with a heavy-duty aluminized-steel dual-diameter tubular heat exchanger and a durable hot-surface igniter, this furnace ensures lasting performance. It operates quietly with a single-speed draft inducer and features a self-diagnostic control board for easy maintenance. Flexible installation options, simplified wiring with color-coded terminals, and a durable, insulated cabinet make it a dependable and efficient choice for your home.

Product Features For Goodman 80% AFUE R32 Gas Furnace

  • Unit Height: 33-3/8 in
  • Unit Width: 21 in
  • AFUE: 80 %
  • 120,000 BTU
  • 2000 CFM
  • Installation Configuration: Upflow/Horizontal
  • Max Overcurrent Protection: 25 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Nine Speed ECM
  • Unit Weight: 132 lb
  • Model Efficiency: 0.8
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled
  • Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
  • Single-stage gas valve for reliable operation
  • Durable hot-surface igniter for enhanced performance
  • Quiet, single-speed draft inducer for smooth airflow
  • Self-diagnostic control board for easy troubleshooting
  • Color-coded low-voltage terminals for simplified wiring
  • Multi-speed ECM blower motor for energy-efficient airflow
  • California Low NOx emissions models available
  • Not for installation in California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD)
  • AHRI Certified and ETL Listed for quality assurance
  • Installation options:
    • GR9S80: Upflow, horizontal left or right
    • GD9S80: Downflow, horizontal left or right
  • Convenient left or right gas and electrical service connections
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulated heat exchanger for energy efficiency

View More Furnaces

Specifications

Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

Brand Goodman SKU GR9S801205DN
Type Gas Heat Replaces GM9S801205DN
Refrigerant Type R-32 AHRI Certificate Number 215358063
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Metal
Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 80%
Heating BTU 120,000 LP/Natural Gas BTU Output 96,000
Blower Motor 9-Speed - ECM Maximum CFM 2,000
Temperature Rise Range (°F) 40-70 Horsepower 1 HP
Configuration Upflow/Horizontal Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 25 Amps Min. Breaker Size 14.3 Amps
Burner Stages Single Fuel Type Propane, Natural Gas
Height 33 3/8" Width 24.5"
Depth 28" No. of Burners 6
Vent Diameter 4" Shipping Weight 132
Warranty

Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 80% AFUE Gas Furnace 120K BTU 24.5"W 2000 CFM Upflow/Horizontal

GR9S80 / GD9S80 Specification Sheets

GR9S80 / GD9S80 Warranty Information
