Goodman GD9S800403AN

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W 1200 CFM Downflow/Horizontal

By Goodman | Model: GD9S800403AN | ID: 100969
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,144.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

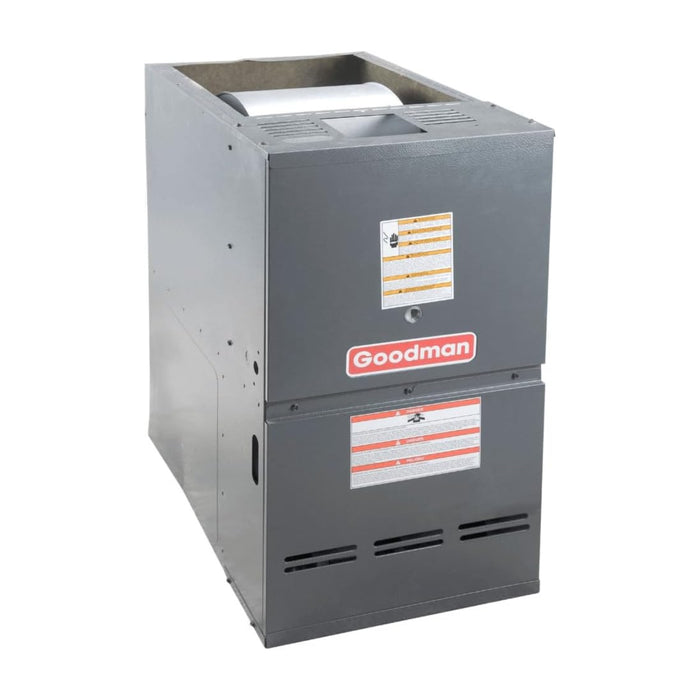

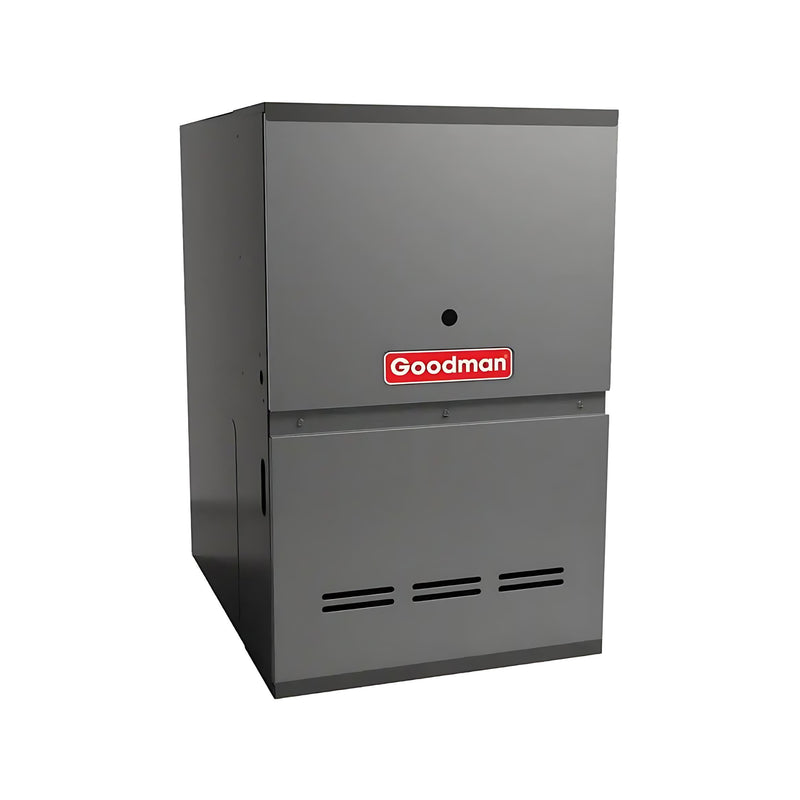

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W 1200 CFM Downflow/Horizontal GD9S800403AN

The Goodman GD9S800403AN gas furnace is a compact, energy-efficient solution for smaller homes. Designed with a single-stage burner and multi-speed ECM blower motor, it delivers consistent heat while reducing energy usage and sound output. With an 80% AFUE efficiency rating, this furnace provides reliable heating and savings without compromising comfort. Ideal for downflow or horizontal installations, it features a durable hot surface ignitor, metal flue venting, and a self-diagnostic control board for simplified service and maintenance.

Key Features

  • 40,000 BTU Input – Ideal for Smaller Homes
  • 80% AFUE Efficiency for Reliable Heating Performance
  • Single-Stage Operation for Simple, Consistent Heat Output
  • Multi-Speed ECM Blower Motor Enhances Efficiency and Airflow Control
  • Requires Metal Flue Venting for Exhaust
  • Supports Downflow or Horizontal (Left/Right) Installations
  • Natural Gas Ready, Convertible to LP with Optional Kit
  • Heavy-Gauge Steel Cabinet with Insulation for Quiet Operation
  • Durable Hot Surface Ignitor for Safe Startup
  • Self-Diagnostic Control Board for Quick Maintenance

The GD9S800403AN delivers affordable, efficient heating performance with dependable Goodman quality—an excellent choice for value-conscious homeowners looking to lower utility bills without sacrificing comfort.

View More Furnaces

Specifications

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W 1200 CFM Downflow/Horizontal GD9S800403AN

Brand Goodman SKU GD9S800403AN
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 Heating BTU 40,000
Temperature Rise Range (°F) 25-55 Vent Diameter 4"
AHRI Certificate Number 215358036 Airflow Direction Downflow/Horizontal
Exhaust Flue Requirement Metal Product Features New Refrigerant Compliant
Furnace Efficiency / AFUE 80% Blower Motor 9 Speed - ECM
Maximum CFM 1289 Horsepower 1/2 HP
Configuration Downflow/Horizontal Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps Min. Breaker Size 7.7 Amps
Burner Stages Single No. of Burners 2
Fuel Type Propane, Natural Gas Height 33 3/8"
Width 14" Depth 28"
Shipping Weight (lbs) 90 UPC 633190210029
Warranty

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W 1200 CFM Downflow/Horizontal GD9S800403AN

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W 1200 CFM Downflow/Horizontal GD9S800403AN

GR9S80 / GD9S80 Specification Sheets

GR9S80 / GD9S80 Installation Manual

GR9S80 / GD9S80 Warranty Information
