Goodman GD9S800403AX

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W Low NOx Downflow/Horizontal

By Goodman | Model: GD9S800403AX | ID: 100970
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,154.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

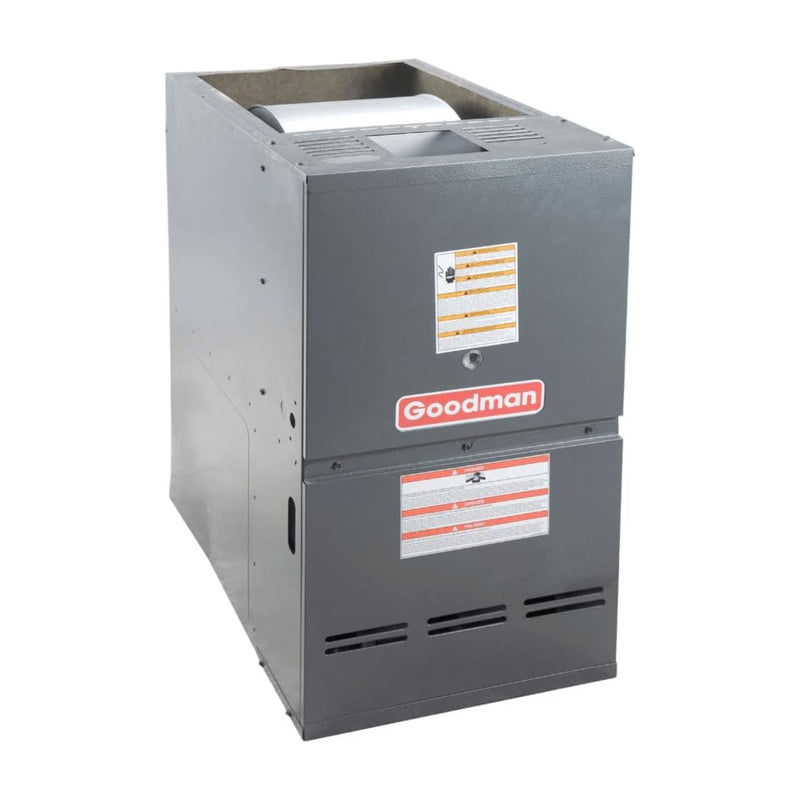

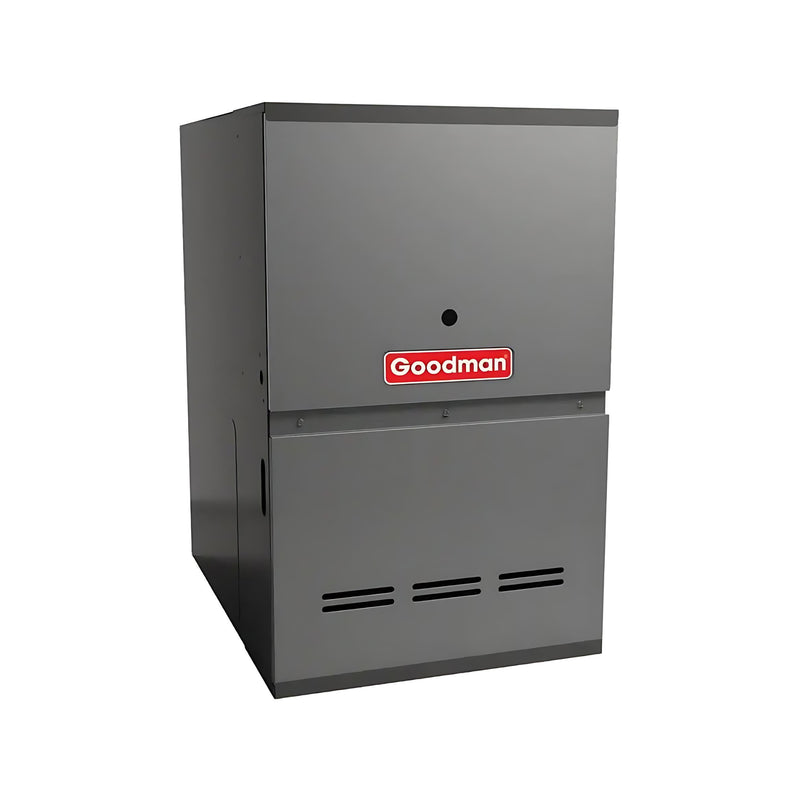

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W Low NOx Downflow/Horizontal GD9S800403AX

The Goodman GD9S800403AX is a compact, high-efficiency furnace delivering reliable heating performance with a 40,000 BTU capacity and 80% AFUE. As a California Low NOx-compliant model, it’s built to meet specific emissions standards while still offering durable construction, a multi-speed ECM motor, and a quiet, energy-efficient operation. Designed for downflow or horizontal installations, this furnace is ideal for smaller homes in regions requiring low NOx output.

Key Features

  • 40,000 BTU Heating Capacity – Perfect for Small Homes or Spaces
  • 80% AFUE – Meets Standard Efficiency Rating with Metal Flue Venting
  • California Low NOx Compliant – Emits Less Nitrogen Oxide for Reduced Environmental Impact
  • Multi-Speed ECM Blower Motor – Enhances Airflow and Cuts Power Use
  • Single-Stage Operation – Delivers 100% Heating Output When Active
  • Heavy-Gauge Steel Cabinet – Reduces Heat Loss & Lowers Operating Noise
  • Hot Surface Ignitor – Provides Reliable, Efficient Startups
  • Self-Diagnostic Control Board – Simplifies Troubleshooting and Maintenance
  • Flexible Installation – Supports Downflow or Horizontal (Left/Right) Configurations
  • Low-Voltage Color-Coded Terminals – Speeds Up and Simplifies Installation

Important California Compliance Note

This unit meets California Low NOx standards but cannot be installed in the following counties due to Ultra-Low NOx requirements: Los Angeles, Fresno, Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare.
For Ultra-Low NOx-compliant furnaces, please contact us directly.

View More Furnaces

Specifications

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W Low NOx Downflow/Horizontal GD9S800403AX

Brand Goodman SKU GD9S800403AX
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 Heating BTU 40,000
Temperature Rise Range (°F) 25-55 Vent Diameter 4"
AHRI Certificate Number 215358036 Airflow Direction Downflow/Horizontal
Exhaust Flue Requirement Metal Product Features Low NOx, New Refrigerant Compliant
Furnace Efficiency / AFUE 80% Blower Motor 9-Speed - ECM
Maximum CFM 1200 Horsepower 1/2 HP
Configuration Downflow/Horizontal Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps Min. Breaker Size 7.7 Amps
Low NOx YES NOx < 40 NG/J NOx
Burner Stages Single No. of Burners 2
Fuel Type Propane, Natural Gas Height 33 3/8"
Width 14" Depth 28"
Shipping Weight (lbs) 90 UPC 633190210036
Warranty

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W Low NOx Downflow/Horizontal GD9S800403AX

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 80% AFUE Gas Furnace 40K BTU 14"W Low NOx Downflow/Horizontal GD9S800403AX

GR9S80 / GD9S80 Specification Sheets

GR9S80 / GD9S80 Installation Manual

GR9S80 / GD9S80 Warranty Information
