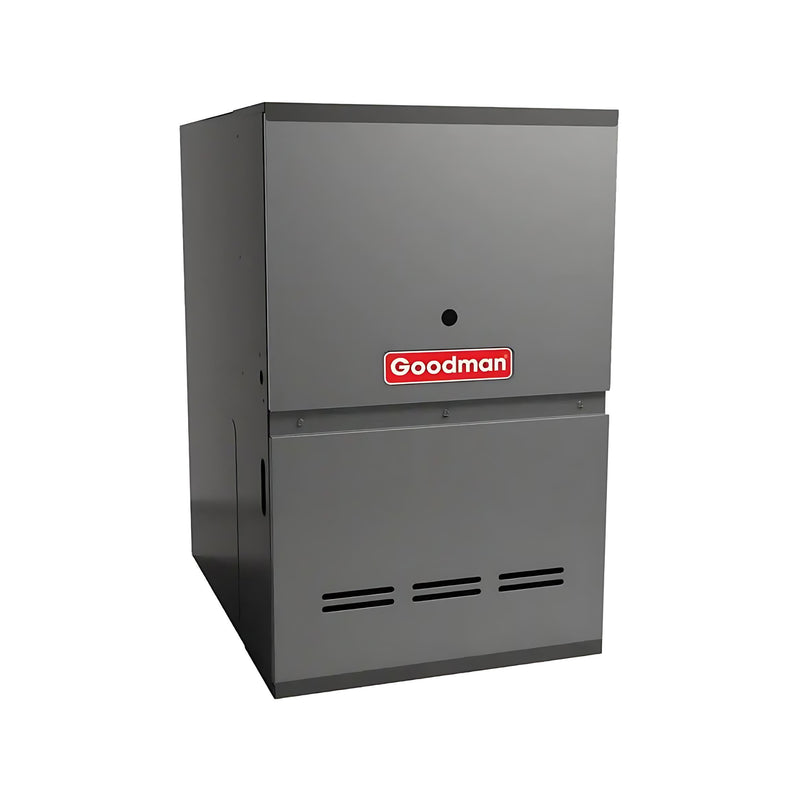

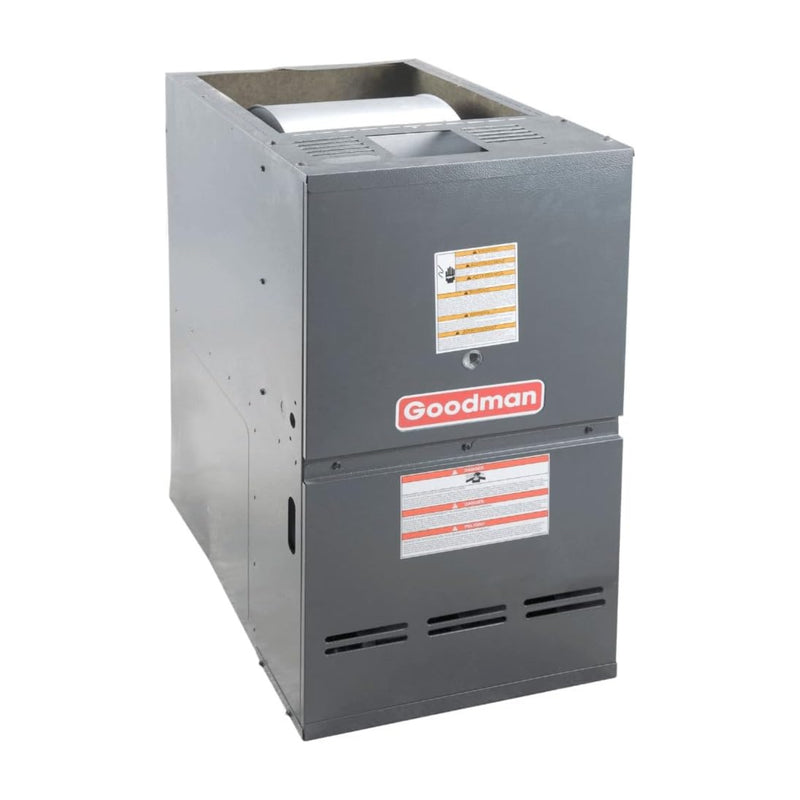

Goodman GD9S800804BX

Goodman R32 80% AFUE Gas Furnace 80K BTU 17.5" Wide Low NOx Downflow

By Goodman | Model: GD9S800804BX | ID: 100974
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,411.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman R32 80% AFUE Gas Furnace 80K BTU 17.5" Wide Low NOx Downflow GD9S800804BX

The Goodman GD9S800804BX is an energy-efficient 80,000 BTU natural gas furnace designed for reliable and quiet operation. This single-stage, multi-speed ECM blower model is engineered for downflow or horizontal installations, offering flexibility across a range of residential setups. With its 80% AFUE efficiency rating and California Low NOx compliance (except for select counties), the GD9S800804BX delivers effective heating while reducing emissions. It’s ideal for medium-sized homes and supports LP conversion with an optional kit. Durable internal components, a heavy-gauge cabinet, and a self-diagnostic control board make it a long-lasting and low-maintenance option for homeowners seeking value and performance.

Key Features

  • 80,000 BTU heating input with 80% AFUE efficiency
  • California Low NOx compliant (not Ultra-Low NOx)
  • Single-stage gas valve for consistent heat output
  • Multi-speed ECM blower motor for optimized airflow and quiet operation
  • Designed for downflow or horizontal (left/right) installation
  • Operates on natural gas and convertible to propane with optional kit
  • Heavy-gauge steel cabinet minimizes sound and heat loss
  • Durable hot surface igniter and advanced self-diagnostics
  • Metal flue venting required
  • Ideal for medium-sized homes depending on climate zone

This furnace is a great choice for attic, basement, or closet installations and provides homeowners with a balance of performance, efficiency, and long-term value.

View More Furnaces

Specifications

Goodman R32 80% AFUE Gas Furnace 80K BTU 17.5" Wide Low NOx Downflow GD9S800804BX

Brand Goodman SKU GD9S800804BX
Type Gas Heat Category Gas Furnaces
Refrigerant Type R-32 Heating BTU 80,000
Temperature Rise Range (°F) 35-65 Vent Diameter 4"
AHRI Certificate Number 215358041 Airflow Direction Downflow/Horizontal
Exhaust Flue Requirement Metal Product Features Low NOx, New Refrigerant Compliant
Furnace Efficiency / AFUE 80% Blower Motor 9-Speed - ECM
Maximum CFM 1600 Horsepower 3/4 HP
Configuration Downflow/Horizontal Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps Min. Breaker Size 11.3 Amps
Low NOx YES NOx = < 40 NG/J NOx
Burner Stages Single No. of Burners 4
Fuel Type Propane, Natural Gas Height 33 3/8"
Width 17.5" Depth 28"
Shipping Weight (lbs) 107 UPC 633190210074
Warranty

Goodman R32 80% AFUE Gas Furnace 80K BTU 17.5" Wide Low NOx Downflow GD9S800804BX

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman R32 80% AFUE Gas Furnace 80K BTU 17.5" Wide Low NOx Downflow GD9S800804BX

GD9S80 Specification Sheets

GD9S80 Installation Manual

GD9S80 Warranty Information

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
