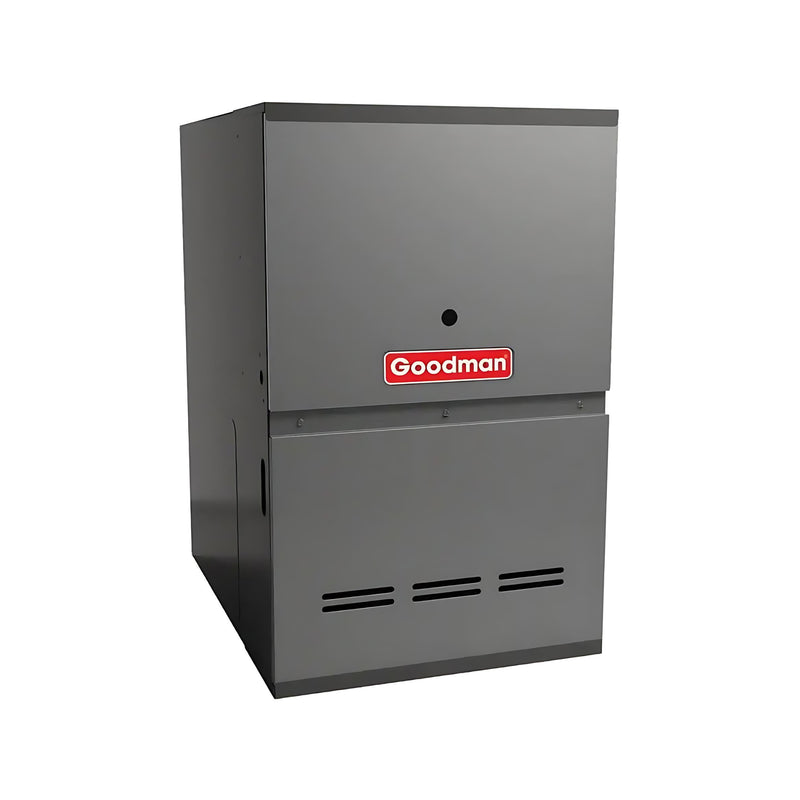

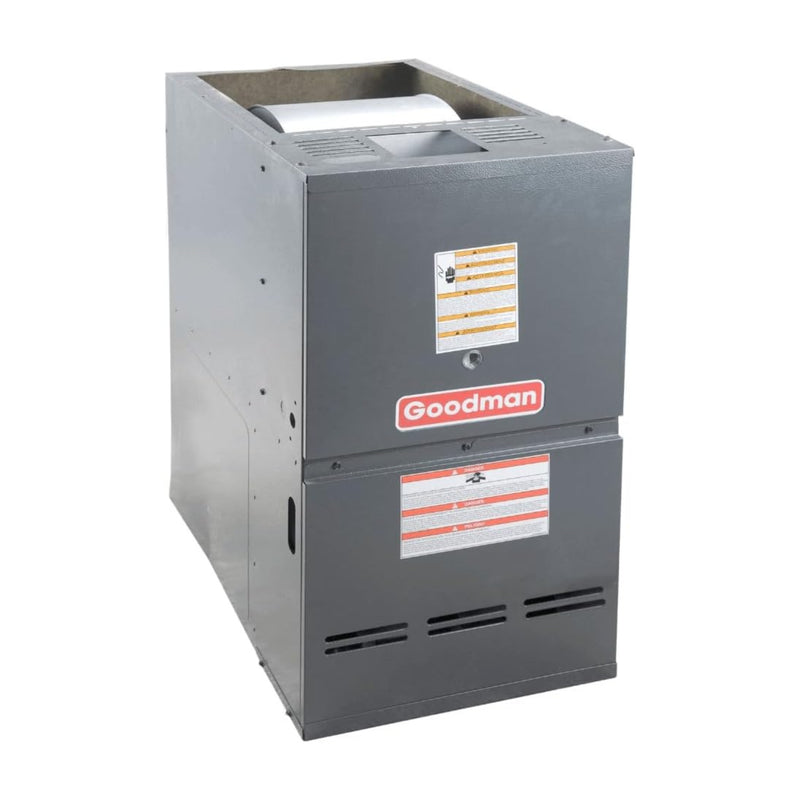

Goodman R32 80% AFUE Gas Furnace 80K BTU Two-Stage 21"W Low NOx Downflow
The Goodman 80% AFUE R32 2-Stage Gas Furnace offers reliable, efficient heating with 80,000 BTU and a multi-speed ECM circulator motor for quiet, consistent airflow. Featuring a two-stage gas valve for economical operation and a SureStart® Silicon Nitride igniter for long-lasting performance, it ensures dependable heating throughout the home. With a fully insulated, heavy-gauge steel cabinet, the furnace is designed for easy installation in multiple configurations and meets California Low NOx standards. AHRI Certified and ETL Listed, it guarantees quality, energy efficiency, and comfort.
In California, many counties have a lower NOx emission requirement than the rest of the United States. The GD9T800805CX Goodman gas furnace is California Low NOx compliant. With a built-in low emission filter, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.
Product Features For Goodman 80% AFUE R32 Two-Stage Gas Furnace
- NOx Burner Type: Low NOx
- Unit Height: 33-3/8 in
- Unit Width: 21 in
- AFUE: 80 %
- 80,000 BTU
- 2000 CFM
- Installation Configuration: Downflow/Horizontal
- Max Overcurrent Protection: 25 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 129 lb
- Model Efficiency: 0.8
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
-
Two-stage gas valve provides quiet, economical heating
- Efficient and quiet multi-speed ECM circulator motor
-
SureStart® Silicon Nitride igniter designed for long igniter life
- Self-diagnostic control board
- Low constant fan speed circulates air throughout the home
- Quiet, two-speed induced draft blower
-
California Low NOx emissions-compliant models available
- Not for installation in California's South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD)
-
AHRI Certified and ETL Listed for quality assurance
Cabinet Features
- Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
- Multi-position installation:
-
GR9T80: Upflow, horizontal left or right
-
GD9T80: Downflow, horizontal left or right
- Removable bottom for side- or bottom-return applications
- Convenient left or right gas/electric service connections
- Cabinet air leakage ≤ 2%
-
Coil and furnace fit flush for most installations
