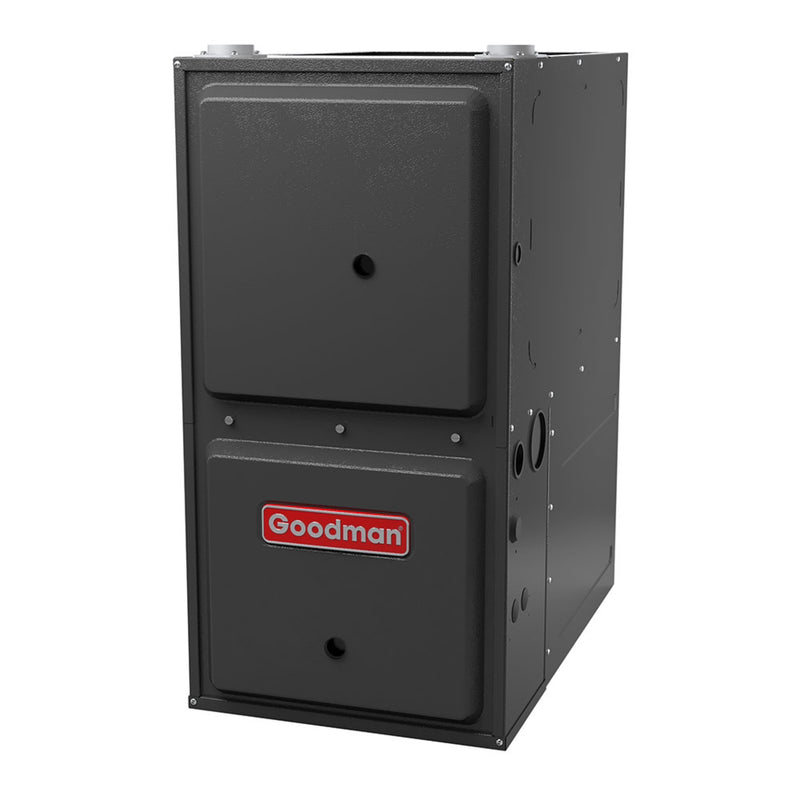

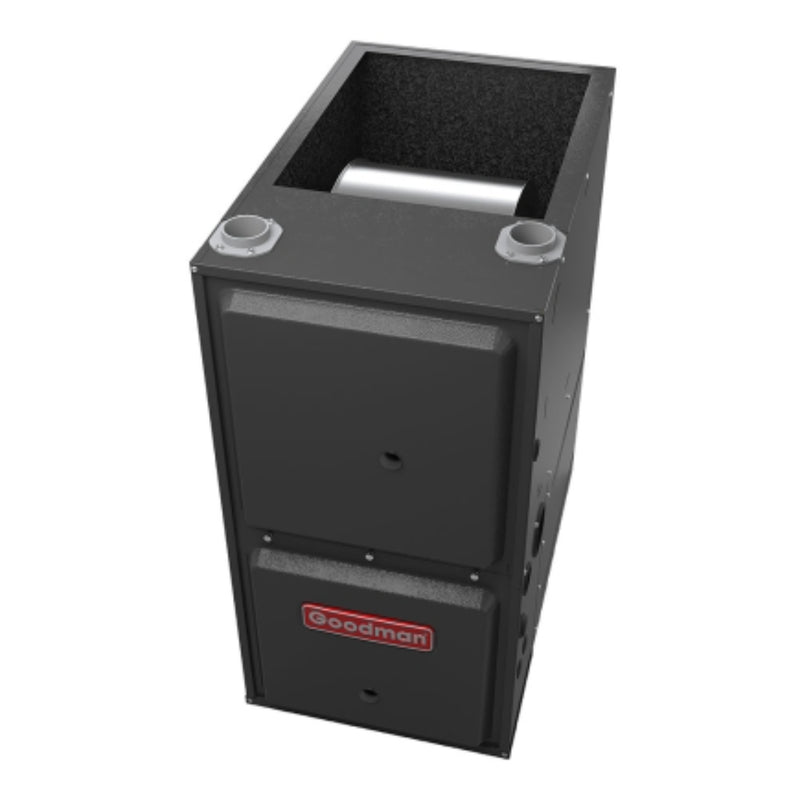

Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal
PROPOSITION 65 WARNING

Some products sold on our site, including this one, may contain substances recognized by the State of California to cause cancer, birth defects, or other reproductive harm. For details on Proposition 65, visit this page.

Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal

By Goodman | SKU: GD9S961005CN | ID: 100916
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,368.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal

This highly efficient Goodman gas furnace offers 100,000 BTU of heating power with a 96% AFUE rating, providing excellent energy savings. Designed for downflow or horizontal installations, it features a durable aluminized-steel tubular heat exchanger and a stainless-steel secondary heat exchanger for enhanced efficiency. The multi-speed ECM motor ensures quiet, reliable performance, while the silicon nitride igniter boosts longevity. It comes with a self-diagnostic control board and is compliant with California’s Low NOx emissions standard, offering flexible venting options for installation. Not suitable for certain California regions.

  • Unit Height: 34.5  in
  • Unit Width: 21 in
  • AFUE: 96 %
  • 100,000 BTU
  • R32
  • Installation Configuration: Downflow/Horizontal
  • Max Overcurrent Protection: 25 A
  • Power Phase: 1 Ph
  • Power Voltage: 115 V
  • Motor Speed Type: Multi Speed ECM
  • Unit Weight: 144 lb
  • Model Efficiency: 0.96
  • Unit Depth: 28 in
  • Heat Exchanger Type: Air Cooled

Product Features For Goodman Highly Efficient 96% AFUE Gas Furnace

    • Heavy-Duty Aluminized-Steel Tubular Heat Exchanger: Durable and long-lasting for efficient heat transfer.
    • Stainless-Steel Secondary Heat Exchanger: Enhances overall efficiency and heat transfer performance.
    • Single-Stage Gas Valve: Ensures consistent and reliable operation.
    • Durable Silicon Nitride Igniter: Provides longevity and dependable performance.
    • Quiet, Single-Speed Induced Draft Blower: Minimizes operational noise for a quieter experience.
    • Self-Diagnostic Control Board: Features an LED fault code display and constant memory for easy troubleshooting.
    • Low NOx Compliant: Meets California's stringent 40 ng/J Low NOx emissions standard.
    • Not Compatible for Installation in California's South Coast AQMD and San Joaquin Valley APCD Regions.

    Certifications:

    • AHRI Certified and ETL Listed: Ensures high quality and performance standards.

    Installation Flexibility:

    • Multi-Position Installation Options:
      • GR9S96: Upflow, horizontal left or right.
      • GD9S96: Downflow, horizontal left or right.
    • Certified for Direct Vent (2-Pipe) & Non-Direct Vent (1-Pipe) Configurations.
    • Easy Installation: Top venting with optional side venting for GR9S96/upflow models.
    • Convenient Gas & Electrical Connections: Left or right options for flexibility during installation.

    Cabinet Features:

    • Energy-Efficient Design: Cabinet air leakage (QLeak) ≤ 2% for optimal efficiency.
    • Durable, Heavy-Gauge Steel Cabinet: Ensures long-lasting performance with a high-quality finish.
    • Fully Insulated Heat Exchanger & Blower Section: Improves heat retention and overall performance.
    • Airtight Solid Bottom or Side Return: Easy-cut tabs for quick installation in bottom air-inlet applications.

    Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal

    Brand Goodman SKU GD9S961005CN
    Type Gas Heat Category Gas Furnaces
    Refrigerant Type R-32 AHRI Certificate Number 215224961
    Airflow Direction Downflow/Horizontal Exhaust Flue Requirement Plastic / PVC
    Product Features New Refrigerant Compliant Furnace Efficiency / AFUE 96%
    Heating BTU 100,000 High Fire Output 95,000
    Blower Motor 9 Speed - ECM Maximum CFM 2000
    Horsepower 1 HP Configuration Downflow/Horizontal
    Energy Star Yes Electrical 115 V. 1 Phase 60 Hz
    Max Breaker Size 25 Amps Min. Breaker Size 16.7 Amps
    Burner Stages Single Fuel Type Propane, Natural Gas
    Height 34.5" Width 21"
    Depth 28.75" Filter Size (1) 14 x 20 (bottom) or (1) 20 x 25 (top return)
    No. of Burners 5 Vent Diameter 2"-3"
    Shipping Weight 144

    Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal

    Warranty Type Residential Multi-Family Commercial
    Standard Warranty 5 year parts 5 year parts 5 year parts
    Registered Warranty 10 year parts 10 year parts 5 year parts

    Goodman R32 96% AFUE Gas Furnace 100K BTU Nine-Speed Downflow/Horizontal

    GR9S96 GD9S96 Installation Manual

    GR9S96 GD9S96 Specification Sheets

    GR9S96 GD9S96 Parts Manual

    GR9S96 GD9S96 Warranty Information

    We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

    Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

    Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

    Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

    Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

    Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

    Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
