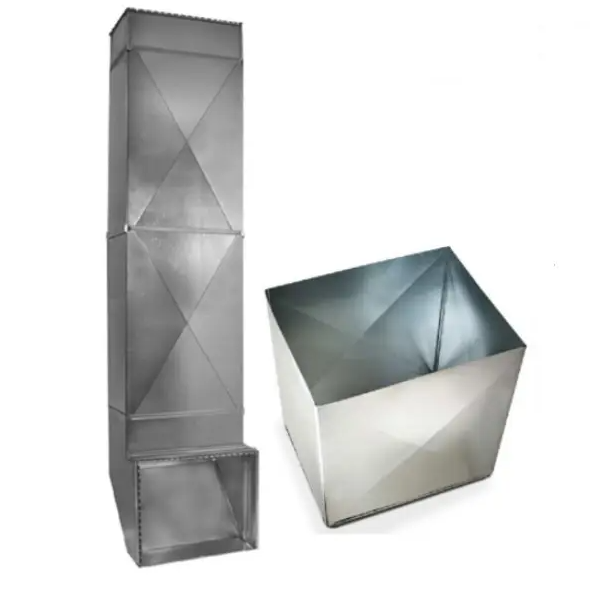

Knockdown Supply Plenum 90G36H/811 with Top 24.5" x 20" x 36" and Return Air Package 16.5" x 25"

Knockdown Supply Plenum 90G36H/811 with Top 24.5" x 20" x 36" and Return Air Package 16.5" x 25"

By HVAC Store | SKU: 90G36H/811
✓ No Sales Tax - in most states excluding California
✓ Free Shipping - on items over $1000
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$517.00 + SHIPPING

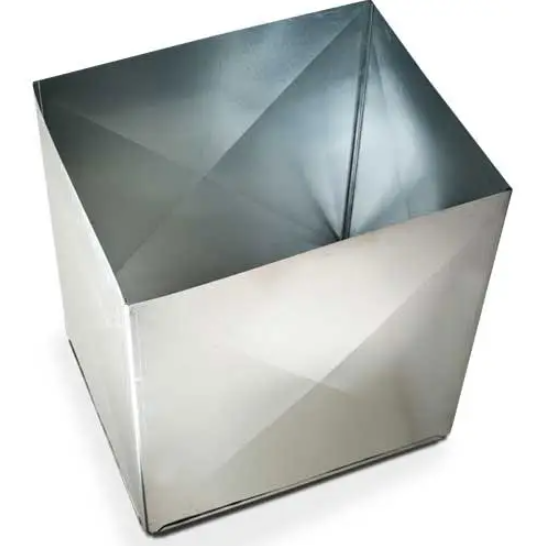

Knockdown Supply Plenum with Top - 24.5" x 20" x 36" - D Width

The Knockdown Supply Plenum with Top measures 24.5 inches wide by 20 inches deep by 36 inches high, providing a versatile and customizable solution for HVAC systems. Paired with a Return Air Package measuring 16.5 inches wide by 25 inches high, this setup ensures efficient air distribution and return flow. The knockdown design simplifies transportation and installation, allowing for easy adjustments on-site to fit various air handler, furnace, or evaporator coil configurations. This combination is ideal for optimizing HVAC performance while accommodating multiple brands and system requirements.

  • Dimensions (Assembled): 24.5" W x 20" D x 30" H
  • Compatibility: Designed for use with 24.5" wide furnaces
  • Design: Knock-down design minimizes space and simplifies transportation to the job site
  • Customization: Measure and cut to size using tin snips to match the supply opening of the air handler, furnace, or evaporator coil
  • Versatility: Designed for use with multiple different brands
  • Components: Includes 4 trimmable sides and 1 trimmable top

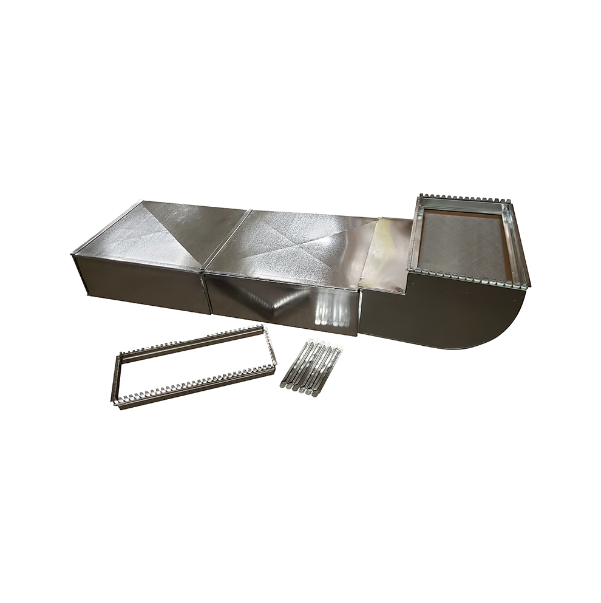

Return Air Package - 16.5" x 25"

  • Return air plenum with 1" filter rack
  • Shipped knocked down in one carton
  • Included Components:
    • Starting collar
    • 2 x 30" duct sections
    • Return air plenum
    • 1" filter rack
  • Filter Rack Position: Located above the return's elbow
  • Return Duct Size: 25" x 10"

Knockdown Supply Plenum with Top - 24.5" x 20" x 36" - D Width

Brand The Duct Company Model # 90G36H/811
Weight (in lbs)     20 Material High Quality
Height 36" Width 20"
Depth 20"

Return Air Package - 16.5" x 25"

Brand The Duct Company Model # 811
Weight (in lbs)     43 Material 26 Gauge Galvanized Steel
Height 84" Width Duct: 25" Filter: 25"
Depth  Duct: 10" Filter: 16"
