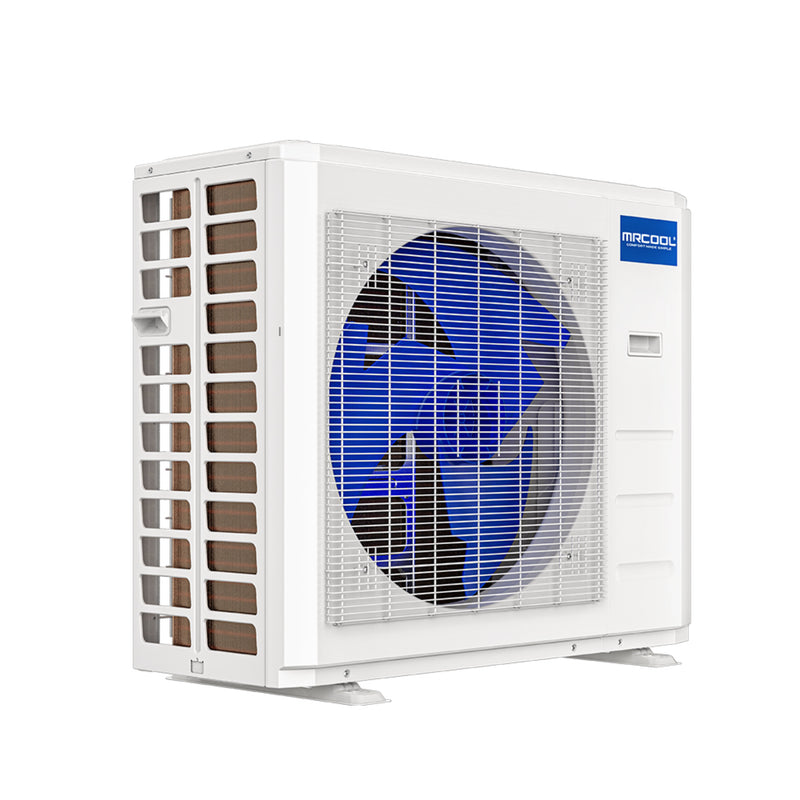

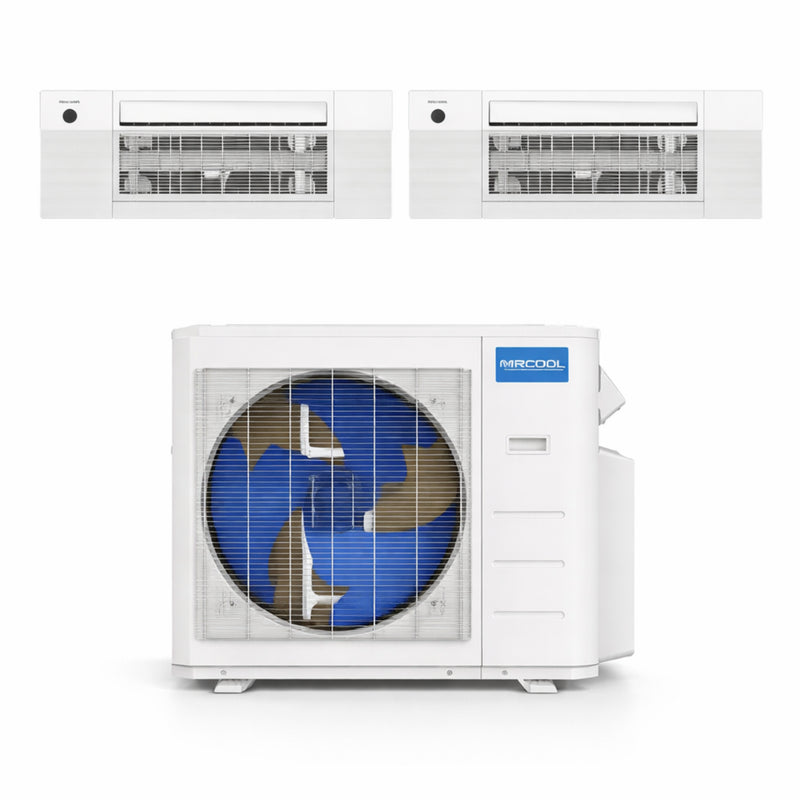

MRCOOL 27K BTU Mini Split Heat Pump Condenser DIY 5th Gen 4 Zone R454B DIY-MULTI4-27HP230D-O
The MRCOOL DIY 5th Generation 27,000 BTU Multi Zone Mini Split Condenser is a high performance comfort solution designed to heat and cool up to four separate spaces, covering approximately 1,000 to 1,200 square feet. Built with true DIY installation in mind, this system allows homeowners to install without the need for an HVAC professional, delivering significant savings on installation costs.
With strong efficiency ratings of up to 23 SEER2 and 9.5 HSPF2-4, this condenser delivers dependable year round comfort while keeping energy usage under control. It supports up to four indoor air handlers, offering customized temperature control across multiple zones. Installation is simplified with patented Quick Connect line sets pre charged with environmentally friendly R 454B refrigerant. These line sets are sold separately and eliminate the need for vacuum pumps or specialized HVAC tools.
Comfort control is enhanced through the SmartHVAC app, allowing users to adjust temperatures, set schedules, and monitor energy usage directly from a mobile device. Voice control compatibility with Amazon Alexa and Google Assistant provides hands free convenience. Designed for long term durability, this condenser includes the DIYPRO cable to remove the need for electrical conduit and is Intertek listed for safety and performance. Backed by one of the best warranties in the HVAC industry, this system delivers reliable performance and peace of mind.
Key Features
-
DIY Installation: Designed for easy installation without professional HVAC assistance
-
Multi Zone Capability: Supports up to four indoor air handlers
-
High Efficiency: Up to 23 SEER2 and 9.5 HSPF2-4 ratings
-
R 454B Refrigerant: Eco friendly refrigerant for improved sustainability
-
Quick Connect Line Sets: Pre charged for fast installation (sold separately)
-
Smart Control: SmartHVAC app with Amazon Alexa and Google Assistant support
-
DIYPRO Cable Included: Eliminates the need for electrical conduit
-
Follow Me Function: Remote tracks temperature around you for enhanced comfort
-
Certified Quality: Intertek listed for tested safety and performance

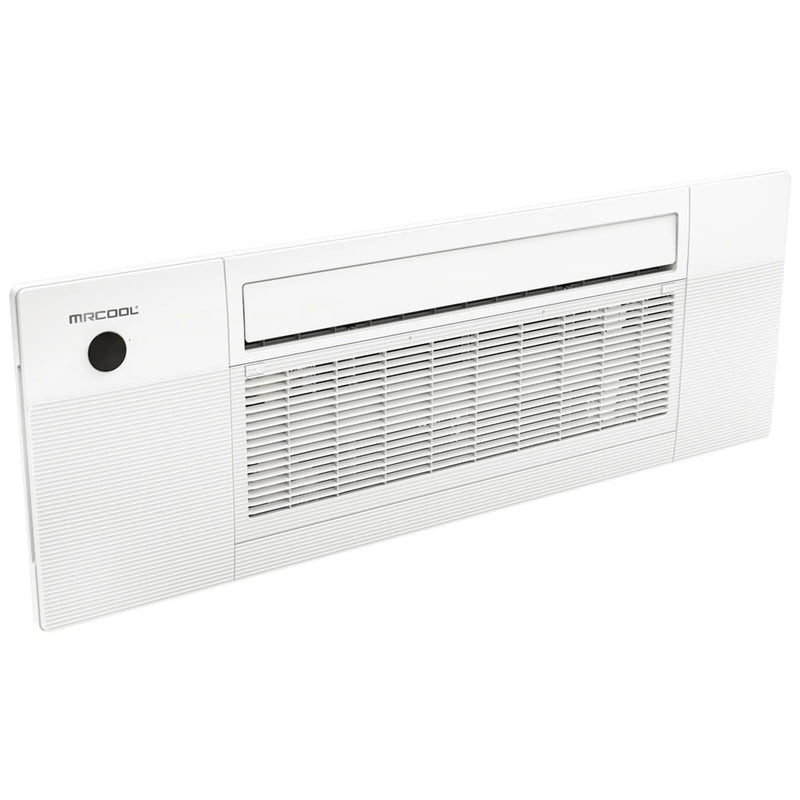

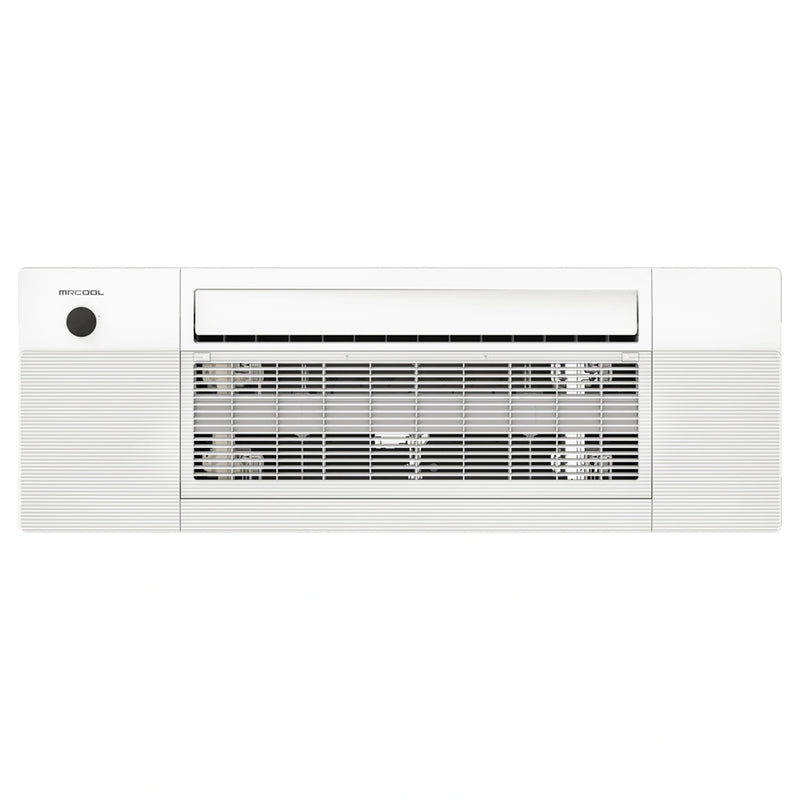

MRCOOL 18,000 BTU OuttaSight Ceiling Cassette Air Handler Mini Split 230V DIYCASSETTE18HP-230D25-O x2
The MRCOOL® DIY® Series 5th Generation OuttaSight® 18,000 BTU One-Way Ceiling Cassette delivers powerful and energy-efficient heating and cooling for areas up to 800 square feet. Designed for hassle-free installation, this ceiling-mounted mini split cassette eliminates the need for specialized HVAC tools, offering a cost-effective and straightforward setup for both residential and light commercial spaces.
Ideal for single-zone and multi-zone mini split systems, this unit installs flush between standard 16-inch ceiling joists, including pre-manufactured I-joists. Its low-profile, modern design provides a sleek and discreet appearance, making it perfect for both new construction and retrofit projects without taking up valuable wall or floor space.
The MRCOOL® OuttaSight® 18K Cassette connects easily to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant, removing the need for vacuuming and simplifying installation. Advanced filtration technology enhances indoor air quality, while the Elevation™ filter access system allows the panel to lower for easy maintenance and cleaning.
With whisper-quiet operation, multiple operating modes, and smart connectivity options, this cassette can be controlled via wireless remote, SmartHVAC app, Amazon Alexa, or Google Assistant, providing complete convenience and customizable comfort. Backed by an industry-leading warranty, the MRCOOL® OuttaSight® 18K Ceiling Cassette ensures reliable performance and year-round climate control.
Product Features & Benefits
- 18,000 BTU ceiling cassette mini split for heating and cooling up to 800 sq. ft.
- Low-profile, flush-mounted design for a sleek, modern appearance
- Fits between standard 16-inch ceiling joists, including engineered I-joists
- Compatible with MRCOOL® DIY® single-zone and multi-zone mini split systems
- DIY-friendly installation with no ductwork or wall space required
- Works with MRCOOL® DIY® Quick Connect® pre-charged line sets
- Pre-charged with eco-friendly R-454B refrigerant, no vacuuming needed
- Two-stage DC motor for efficient and consistent airflow
- Advanced filtration system to improve indoor air quality
- Elevation™ function lowers the filter panel for easy maintenance
- Swing airflow technology for uniform air distribution throughout the room
- Multiple operating modes for customized comfort
- Ultra-quiet operation for bedrooms, offices, and living spaces
- Wireless remote included for easy control
- Smart control via SmartHVAC app, Amazon Alexa, and Google Assistant
- Energy-efficient design helps reduce utility costs
- Backed by MRCOOL® warranty: limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty
