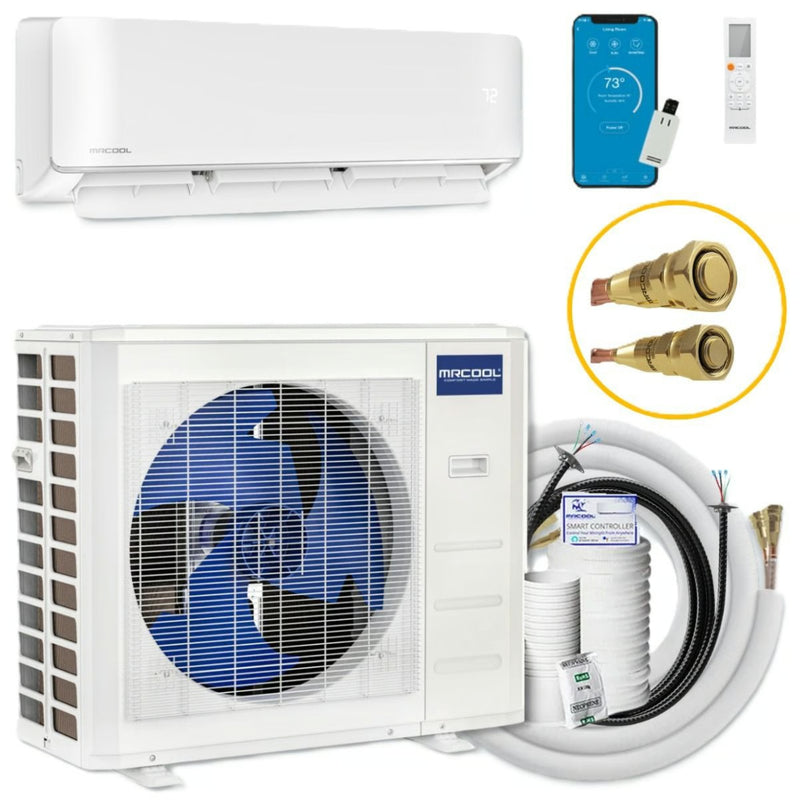

MRCOOL 36,000 BTU DIY Mini Split Heat Pump 5th Gen E Star 25ft Line Set

Name: MRCOOL 36,000 BTU DIY Mini Split Heat Pump 5th Gen E Star 25ft Line Set
Brand: MRCOOL
SKU: DIY-36-HP-WM-230D25-O
Price: 3769.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By MRCOOL | Model: DIY-36-HP-WM-230D25-O | ID: 50278

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$3,769.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

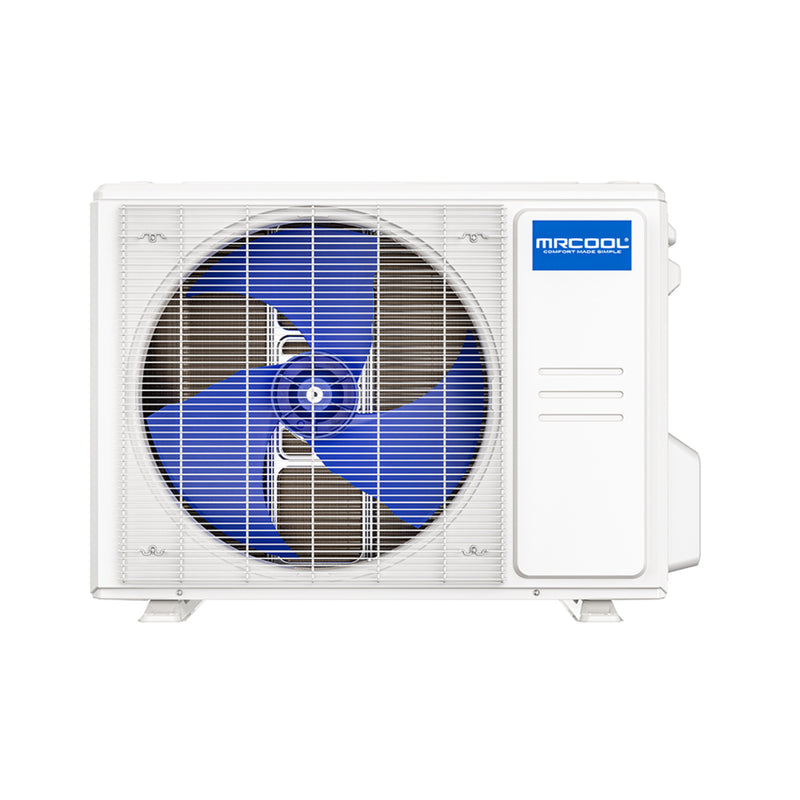

MRCOOL 36K BTU 18 SEER2 Mini Split Heat Pump Condenser DIY 5th Gen R454B DIY-36-HP-C-230D25-O

The MRCOOL DIY‑36‑HP‑C‑230D25‑O is a high‑capacity 36,000 BTU outdoor heat pump condenser designed for MRCOOL DIY® 5th Generation ductless mini‑split systems. This powerful condenser delivers efficient year‑round heating and cooling for large residential and commercial spaces, while supporting easy DIY installation with a pre‑charged QuickConnect® line set.

36,000 BTU heat pump condenser for single‑zone ductless mini‑split HVAC systems
Engineered for MRCOOL DIY® 5th Generation systems with effortless installation
Pre‑charged 25 ft QuickConnect® line set for DIY setup without vacuuming
Eco‑friendly R‑454B refrigerant for high efficiency and lower environmental impact
Inverter technology for consistent heating and cooling performance
Wi‑Fi and SmartHVAC app compatibility for remote climate control
Works with Amazon Alexa and Google Assistant smart voice control
Gold Fin® corrosion‑resistant outdoor condenser design for durability
Ideal for spaces around 1,000–1,500 sq ft with reliable comfort delivery

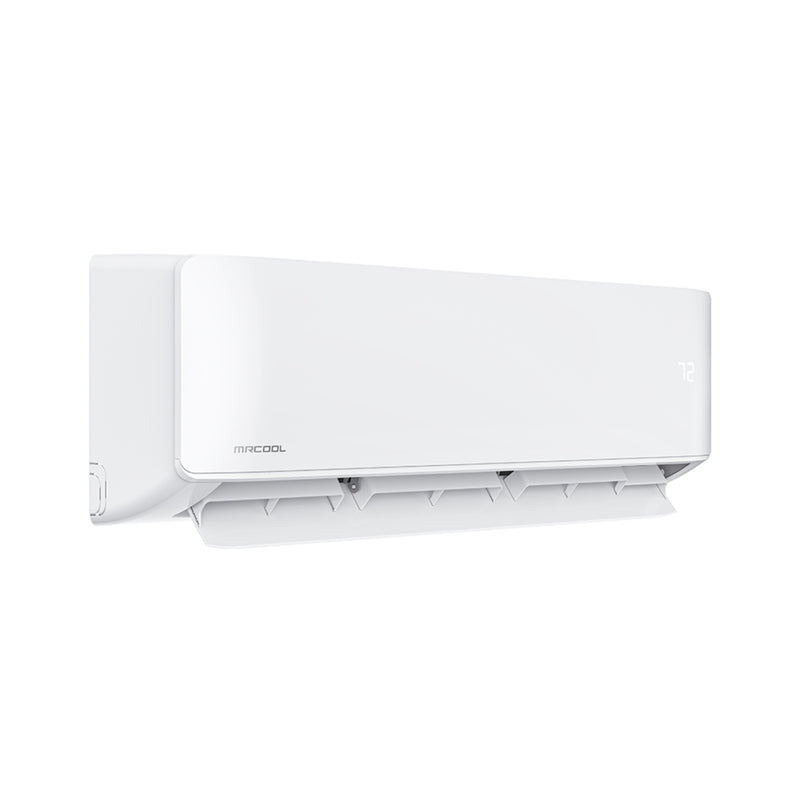

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

The MRCOOL DIY-36-HP-WMAH-230D25-O is a 36,000 BTU wall-mounted air handler designed for MRCOOL DIY® 5th Generation ductless mini-split systems. This indoor unit delivers efficient heating and cooling for small residential and light commercial spaces while supporting true DIY installation when paired with a compatible MRCOOL condenser.

36,000 BTU wall-mounted air handler for ductless mini-split systems
Compatible with MRCOOL DIY® 5th Generation single-zone systems
208/230V power supply for standard residential electrical connections
DIY-friendly installation with QuickConnect® line set compatibility
Wi-Fi enabled for SmartHVAC app remote control
Works with Amazon Alexa and Google Assistant
Quiet operation with multiple fan speed settings
Energy-efficient heating and cooling performance
Washable and reusable air filter for easy maintenance

View More DIY Mini Split Systems

Specifications

MRCOOL 36K BTU 18 SEER2 Mini Split Heat Pump Condenser DIY 5th Gen R454B DIY-36-HP-C-230D25-O

Brand	MRCOOL	SKU	DIY-36-HP-C-230D25-O
SEER2 Rating	18	Tonnage	3
Cooling Capacity (BTU)	36000	Heating Capacity (BTU)	36000
EER2	8.5	HSPF2-4	8.5
HSPF2-5	6.5	Voltage (V)	208/230 - 1 Phase
Replaces	DIY-18-HP-C-230C25	Cycle	60
Max Fuse Breaker (A)	35	Min Circuit Ampacity (A)	33
Color	White	Zone Capacity	1
Refrigerant Type	R-454B	Refrigerant Volume (oz)	109.7
Decibel Rating (dBA)	60.5	Inverter	DC
Line Set Length (ft)	25	Max Line Set Length (ft)	213.2
Liquid Line Size	3/8	Suction Line Size	5/8
Compressor Motor Type	Rotary	Fan Only Option	Yes
Quiet Mode	Yes	Auto Cool	Yes
WiFi Compatibility	Yes	UL Listed	Yes
ETL Listed	Yes	AHRI Certified	Yes
Proposition 65 Warning	Yes	Warranty	5-Years Parts, 7-Years Compressor

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

Brand	MRCOOL	SKU	DIY-36-HP-WMAH-230D25-O
Tonnage	3	Weight (lbs)	48.72
Voltage (V)	208/230	Phase	1
Cycle	60	Max Fuse Breaker (A)	15
Min Circuit Ampacity (A)	3	Mount Type	Wall
Replace	DIY-36-HP-WMAH-230C25	Max Coverage Area	1550 sqft
Decibel Rating Low (dBA)	27.5	Decibel Rating High (dBA)	55.5
Number of Speeds	5	Oscillation	Yes
Liquid Line Size	3/8	Suction Line Size	5/8
Filter Type	Reusable	Fan Only Option	Yes
Quiet Mode	Yes	WiFi Compatibility	Yes
Remote Control Included	Yes	Energy Star Certified	Yes
AHRI Certified	Yes	UL Listed	Yes
ETL Listed	Yes	Net Dimensions (W×H×D)	49.57 × 14.25 × 11.1 in
Gross Dimensions (W×H×D)	53.94 × 16.57 × 18.74 in	Gross Weight (lbs)	67.9
Warranty	5-Years Parts, 7-Years Compressor	Proposition 65 Warning	Yes

Warranty

MRCOOL 36K BTU 18 SEER2 Mini Split Heat Pump Condenser DIY 5th Gen R454B DIY-36-HP-C-230D25-O

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years

Documents

MRCOOL 36K BTU 18 SEER2 Mini Split Heat Pump Condenser DIY 5th Gen R454B DIY-36-HP-C-230D25-O

DIY 5th Gen Mini-Split Condenser Brochure

DIY 5th Gen Mini-Split Condenser Install Manual

DIY 5th Gen Mini-Split Condenser Specs

DIY 5th Gen Mini-Split Condenser Owner Manual

DIY 5th Gen Mini-Split Condenser Remote Manual

DIY 5th Gen Mini-Split Condenser Service Manual

DIY 5th Gen Mini-Split Condenser Warranty Doc

DIY 5th Gen Mini-Split Condenser Accessory Manual

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

DIY 5th Gen Air Handler Brochure

DIY 5th Gen Air Handler Install Manual

DIY 5th Gen Air Handler Owner Manual

DIY 5th Gen Air Handler Remote Manual

DIY 5th Gen Air Handler Service Manual

DIY 5th Gen Air Handler Warranty Doc

DIY 5th Gen Air Handler Accessory Manual
