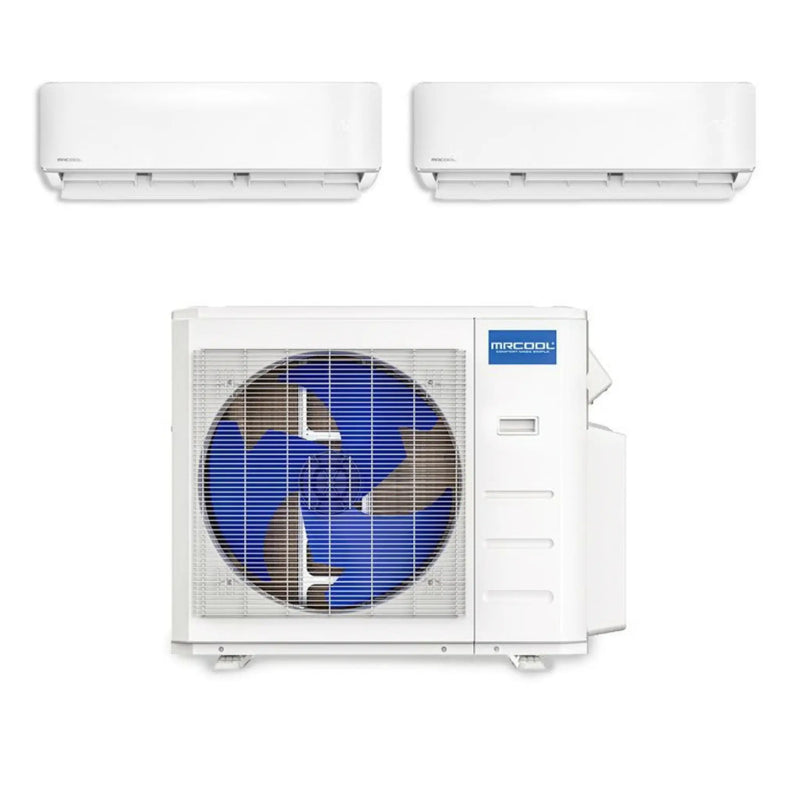

MRCOOL 48K BTU 21.8 SEER2 Wall Mount Mini Split System 5th Gen 2-Zone 6+24

Name: MRCOOL 48K BTU 21.8 SEER2 Wall Mount Mini Split System 5th Gen 2-Zone 6+24
Brand: MRCOOL
SKU: DIY-MULTI6-48HP230D-O
Price: 4650.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By MRCOOL | Model: DIY-MULTI6-48HP230D-O / DIY-06-HP-WMAH-230D25-O / DIY-24-HP-WMAH-230D25-O | ID: 50337

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,650.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

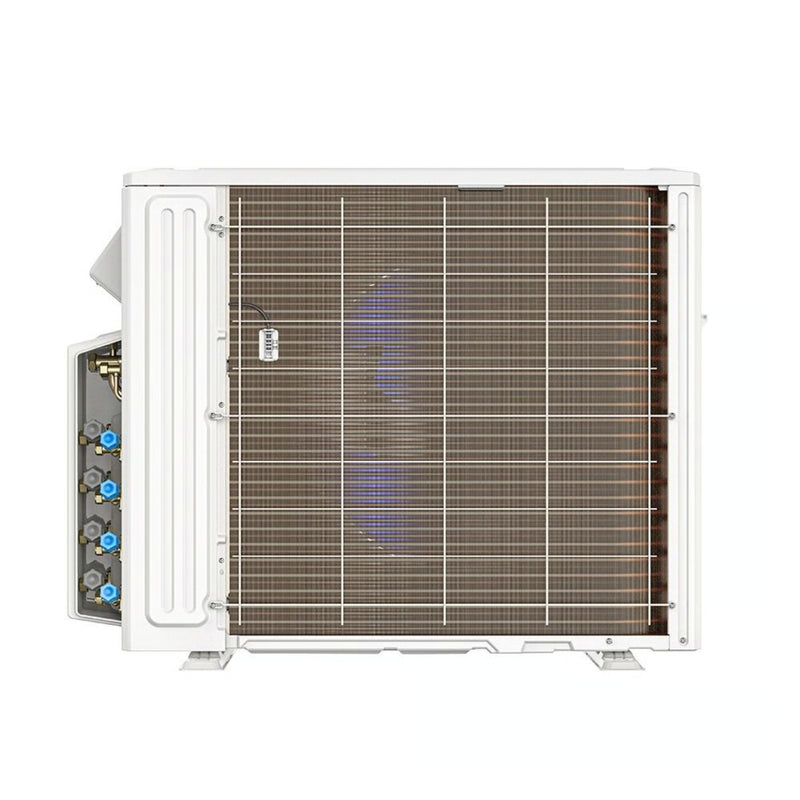

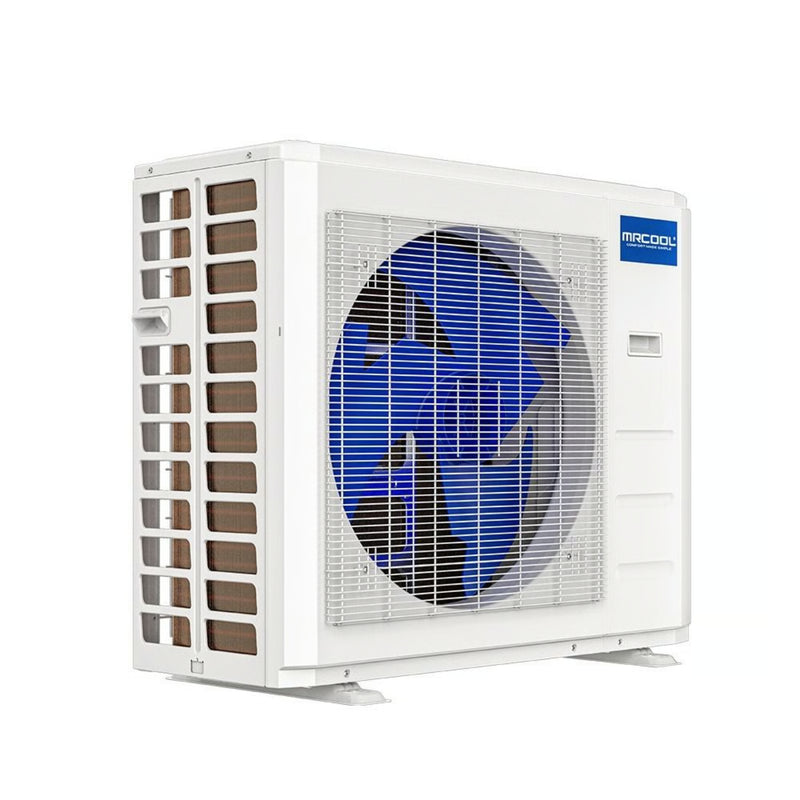

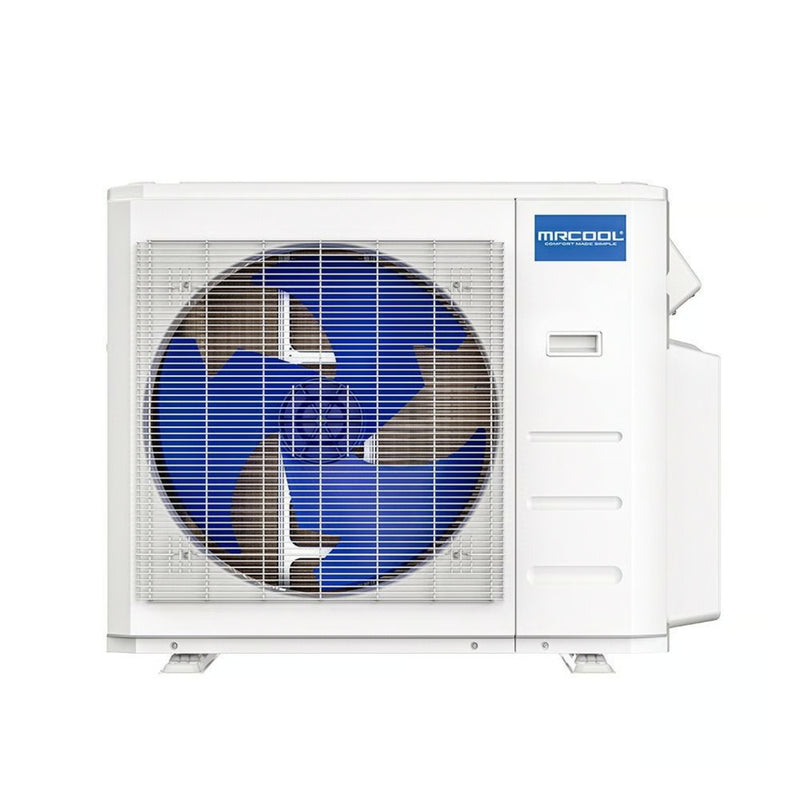

MRCOOL 48K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-48HP230D-O

The MRCOOL DIY 5th Generation 48,000 BTU Multi Zone Mini Split Heat Pump Condenser is a powerful and efficient solution designed to heat and cool up to six separate spaces, covering approximately 2,000 square feet. Built for true DIY installation, this system allows homeowners to install without the need for an HVAC professional, helping save both time and installation costs while delivering reliable whole-home comfort.

This condenser achieves impressive efficiency ratings of up to 21.8 SEER2 and 10 HSPF2-4, ensuring dependable year-round performance with controlled energy usage. It supports up to six indoor air handlers, providing customized comfort across multiple zones. Installation is simplified using patented Quick Connect line sets pre-charged with environmentally friendly R-454B refrigerant. These line sets are sold separately and eliminate the need for vacuum pumps or specialized HVAC tools.

Advanced comfort control is available through the SmartHVAC app, allowing users to set temperatures, schedules, and operating modes while monitoring energy usage directly from a mobile device. Voice control compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Designed for long-term durability, this condenser includes the DIYPRO cable to eliminate the need for electrical conduit and is Intertek listed for safety and performance. Backed by one of the strongest warranties in the HVAC industry, this system delivers confidence and peace of mind.

Key Features

DIY Installation: Designed for easy installation without professional HVAC assistance
Multi Zone Capability: Supports up to six indoor air handlers
High Efficiency: Up to 21.8 SEER2 and 10 HSPF2-4 ratings
R-454B Refrigerant: Eco-friendly and more efficient than previous refrigerants
Quick Connect Line Sets: Pre-charged for fast installation (sold separately)
Smart Control: SmartHVAC app with Amazon Alexa and Google Assistant support
DIYPRO Cable Included: Eliminates the need for electrical conduit
Follow Me Function: Remote tracks temperature around you for enhanced comfort
Certified Quality: Intertek listed for tested safety and performance

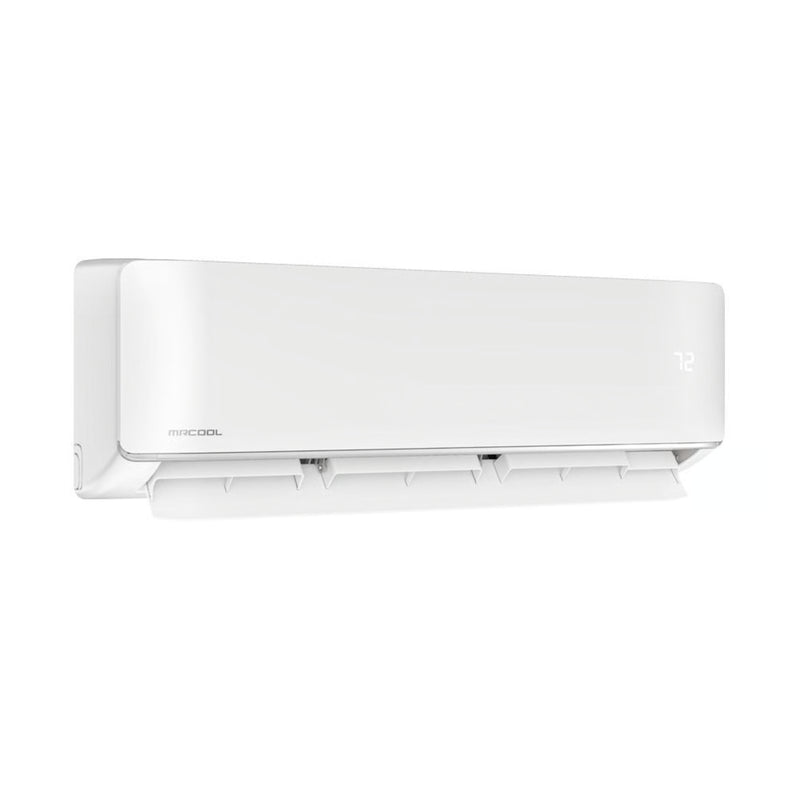

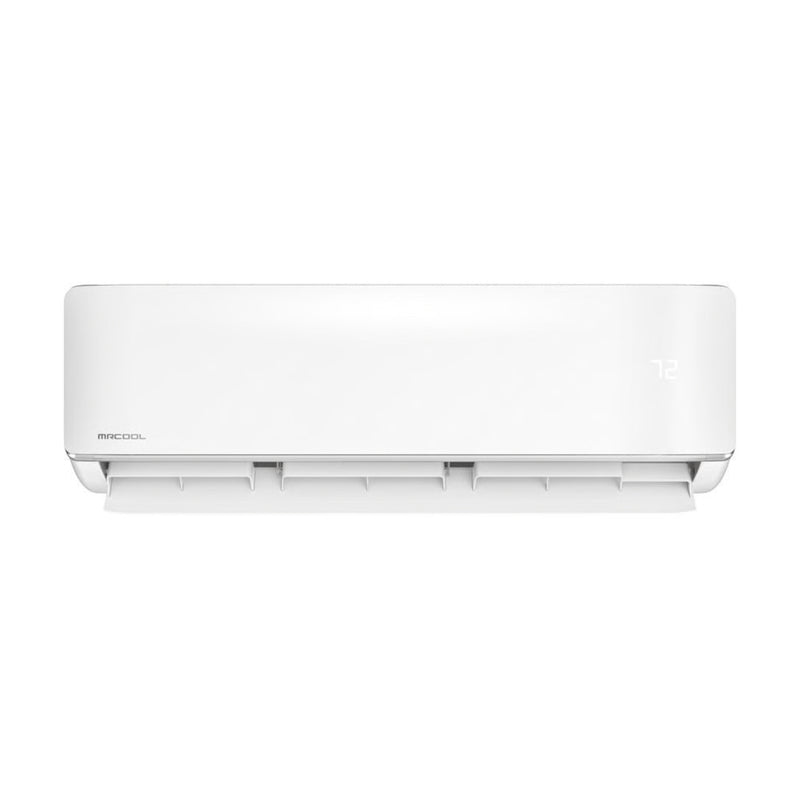

MRCOOL 6K BTU DIY 5th Gen Wall Mount Air Handler Mini Split Multi-Zone DIY-06-HP-WMAH-230D25-O

The MRCOOL DIY 5th Generation 6K BTU Ductless Heat Pump Mini Split Air Handler is designed for effortless installation and reliable year-round comfort. Perfect for spaces up to 200 sq. ft., this system requires no special tools or HVAC experience. Featuring MRCOOL’s innovative DIY QuickConnect technology and eco-friendly R-454B refrigerant, it delivers efficient heating and cooling with minimal installation time. Control your comfort easily using the wireless remote, SmartHVAC app, or hands-free voice commands via Amazon Alexa and Google Assistant.

Key Features:

6,000 BTU Capacity: Ideal for heating and cooling areas up to 200 sq. ft.
DIY QuickConnect Technology: Pre-charged line sets eliminate vacuuming for faster installation (line set sold separately).
R-454B Refrigerant: Environmentally friendly refrigerant for improved efficiency.
DIYPRO Cable Included: No electrical conduit required for added durability.
Smart Control Options: Wireless remote, SmartHVAC app, and voice control.
Follow Me Function: Remote sensor adjusts airflow temperature for consistent comfort.
Dry Mode: Helps reduce indoor humidity.
Gold Fin Protection: Enhanced corrosion resistance.
Intertek Listed: Certified for safety and performance (5031495).

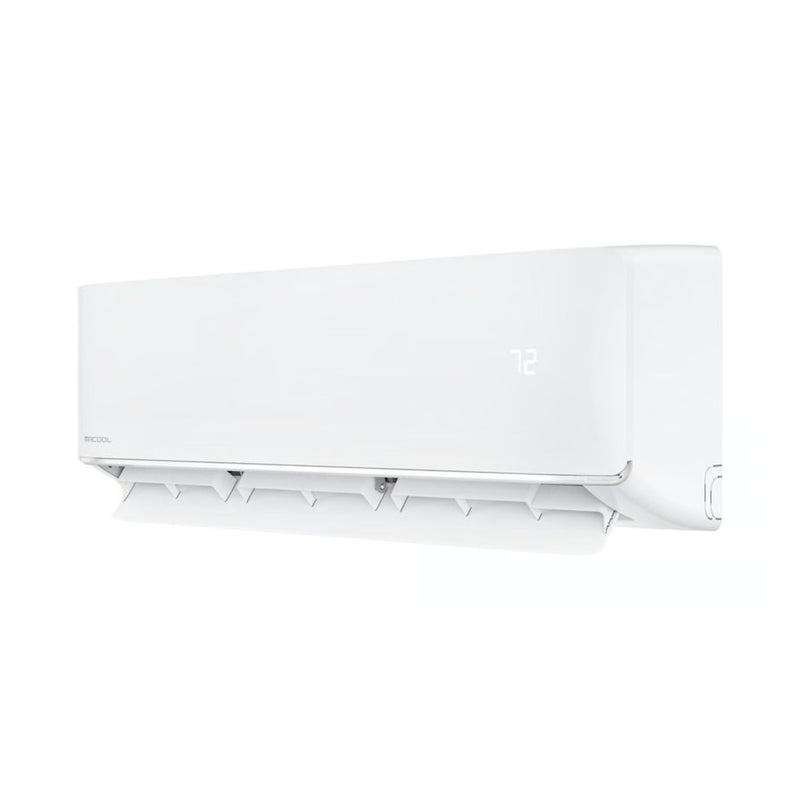

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

The MRCOOL DIY-24-HP-WMAH-230D25-O is a 24,000 BTU wall-mounted air handler designed for MRCOOL DIY® 5th Generation ductless mini-split systems. This indoor unit delivers efficient heating and cooling for small residential and light commercial spaces while supporting true DIY installation when paired with a compatible MRCOOL condenser.

Key Features

24,000 BTU wall-mounted air handler for ductless mini-split systems
Compatible with MRCOOL DIY® 5th Generation single-zone systems
208/230V power supply for standard residential electrical connections
DIY-friendly installation with QuickConnect® line set compatibility
Wi-Fi enabled for SmartHVAC app remote control
Works with Amazon Alexa and Google Assistant
Quiet operation with multiple fan speed settings
Energy-efficient heating and cooling performance
Washable and reusable air filter for easy maintenance

View More 2 Zone Mini Splits

Specifications

MRCOOL 48K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-48HP230D-O

Brand	MRCOOL	SKU	DIY-MULTI6-48HP230D-O
Cooling Capacity	43,000 BTU/h	Heating Capacity	48,000 BTU/h
Tonnage	4 Ton	Zone Capacity	Up to 6 Zones
SEER2	21.8	EER2	12
HSPF2-4	10	HSPF2-5	7.8
Refrigerant Type	R-454B	Refrigerant Volume	148.15 oz
Voltage	208/230V	Phase	1
Cycle	60 Hz	Inverter Type	DC Inverter
Max Fuse Breaker	45 A	Min Circuit Ampacity	40 A
Decibel Rating	64 dBA	Color	White
Line Set Length	25 ft	Max Line Set Length	221.4 ft
Liquid Line Size	1/4 in	Suction Line Size	(3/8 x 4) & (1/2 x 2)
Compressor Motor Type	Rotary	Net Weight	223.77 lbs
Net Dimensions (WxHxD)	37.48 x 52.48 x 16.34 in	Gross Weight	256 lbs
Replaces	00840255587471	UPC	840255587471

MRCOOL 6K BTU DIY 5th Gen Wall Mount Air Handler Mini Split Multi-Zone DIY-06-HP-WMAH-230D25-O

Brand	MRCOOL	SKU	DIY-06-HP-WMAH-230D25-O
Cooling / Heating BTU	6,000 BTU	Refrigerant	R454B
Voltage	208/230V	Phase	1
Cycle	60 Hz	Mount Type	Wall
Color	White	Max Coverage Area	200 sq. ft.
Oscillation	Yes	Filter Type	Reusable
Net Dimensions (WxHxD)	31.57" x 11.69" x 7.44"	Net Weight	24.47 lbs
Gross Dimensions (WxHxD)	36.02" x 14.37" x 16.34"	Gross Weight	35.05 lbs

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

Brand	MRCOOL	SKU	DIY-24-HP-WMAH-230D25-O
Tonnage	2	Weight (lbs)	35.93
Voltage (V)	208/230	Phase	1
Cycle	60	Max Fuse Breaker (A)	15
Min Circuit Ampacity (A)	3	Mount Type	Wall
Replaces	DIY-24-HP-WMAH-230C25	Max Coverage Area	1050 sqft
Decibel Rating Low (dBA)	20	Decibel Rating High (dBA)	54
Number of Speeds	5	Oscillation	Yes
Liquid Line Size	3/8	Suction Line Size	5/8
Filter Type	Reusable	Fan Only Option	Yes
Quiet Mode	Yes	WiFi Compatibility	Yes
Remote Control Included	Yes	Energy Star Certified	Yes
AHRI Certified	Yes	UL Listed	Yes
ETL Listed	Yes	Net Dimensions (W×H×D)	42.52 × 13.19 × 8.9 in
Gross Dimensions (W×H×D)	46.73 × 14.29 × 17.68 in	Gross Weight (lbs)	49.82
Warranty	5-Years Parts, 7-Years Compressor	Proposition 65 Warning	Yes

Warranty

MRCOOL 48K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-48HP230D-O

Warranty	Coverage
Parts	5 Years
Compressor	7 Years

MRCOOL 6K BTU DIY 5th Gen Wall Mount Air Handler Mini Split Multi-Zone DIY-06-HP-WMAH-230D25-O

Warranty	Coverage
Parts	5 Years
Compressor	7 Years

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years

Documents

MRCOOL 48K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-48HP230D-O

Brochure

Installation Manual

Remote Manual

Service Manual

Warranty Document

MRCOOL 6K BTU DIY 5th Gen Wall Mount Air Handler Mini Split Multi-Zone DIY-06-HP-WMAH-230D25-O

Brochure

Product Catalog

Installation Manual

Remote Manual

Warranty Document

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

DIY 5th Gen Air Handler Brochure

DIY 5th Gen Air Handler Install Manual

DIY 5th Gen Air Handler Owner Manual

DIY 5th Gen Air Handler Remote Manual

DIY 5th Gen Air Handler Service Manual

DIY 5th Gen Air Handler Warranty Doc

DIY 5th Gen Air Handler Accessory Manual
