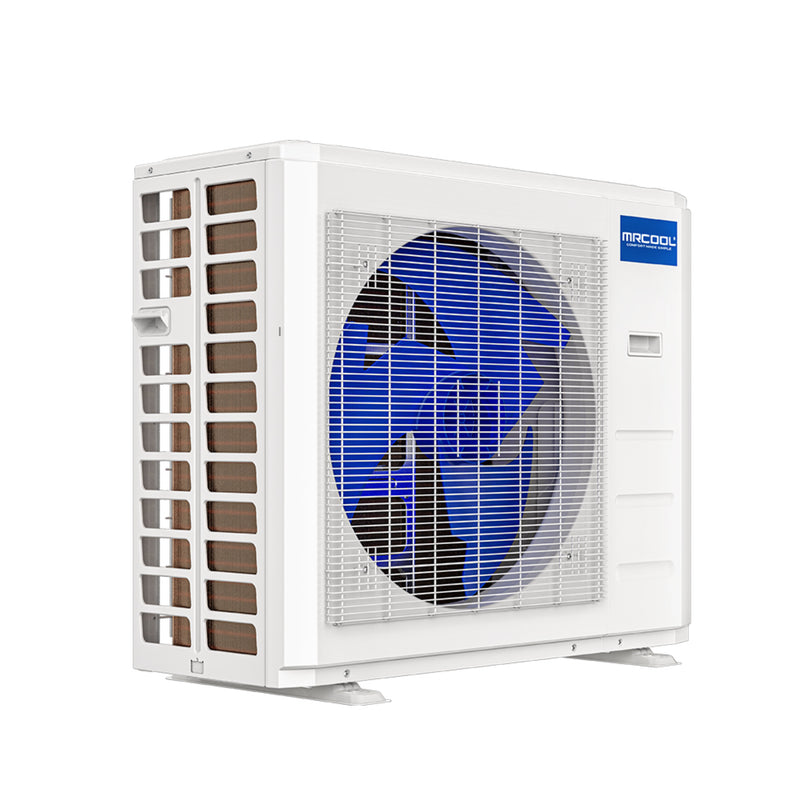

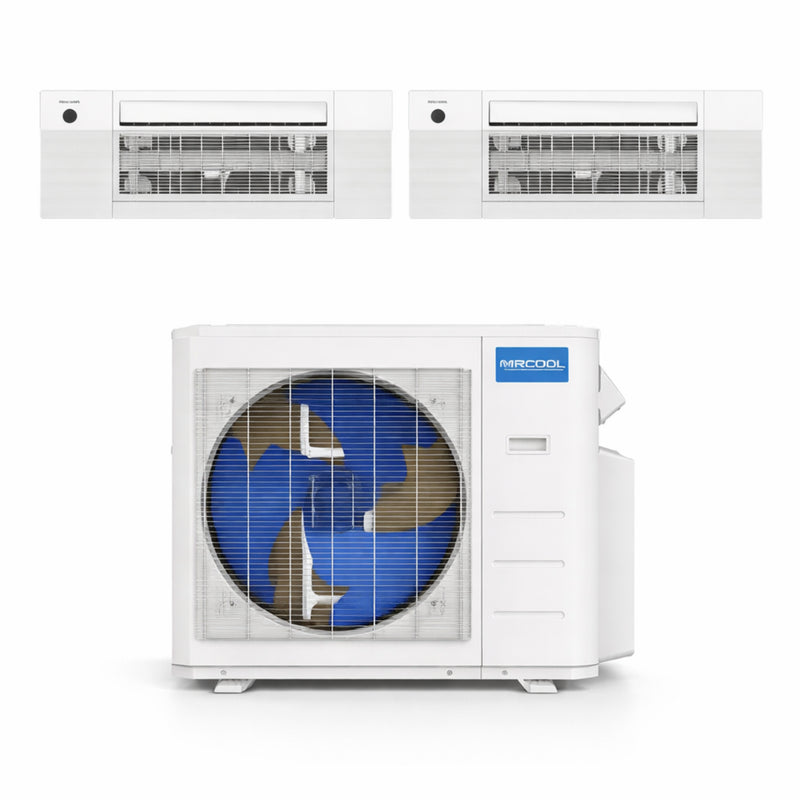

MRCOOL 48K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-48HP230D-O
The MRCOOL DIY 5th Generation 48,000 BTU Multi Zone Mini Split Heat Pump Condenser is a powerful and efficient solution designed to heat and cool up to six separate spaces, covering approximately 2,000 square feet. Built for true DIY installation, this system allows homeowners to install without the need for an HVAC professional, helping save both time and installation costs while delivering reliable whole-home comfort.
This condenser achieves impressive efficiency ratings of up to 21.8 SEER2 and 10 HSPF2-4, ensuring dependable year-round performance with controlled energy usage. It supports up to six indoor air handlers, providing customized comfort across multiple zones. Installation is simplified using patented Quick Connect line sets pre-charged with environmentally friendly R-454B refrigerant. These line sets are sold separately and eliminate the need for vacuum pumps or specialized HVAC tools.
Advanced comfort control is available through the SmartHVAC app, allowing users to set temperatures, schedules, and operating modes while monitoring energy usage directly from a mobile device. Voice control compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Designed for long-term durability, this condenser includes the DIYPRO cable to eliminate the need for electrical conduit and is Intertek listed for safety and performance. Backed by one of the strongest warranties in the HVAC industry, this system delivers confidence and peace of mind.
Key Features
-
DIY Installation: Designed for easy installation without professional HVAC assistance
-
Multi Zone Capability: Supports up to six indoor air handlers
-
High Efficiency: Up to 21.8 SEER2 and 10 HSPF2-4 ratings
-
R-454B Refrigerant: Eco-friendly and more efficient than previous refrigerants
-
Quick Connect Line Sets: Pre-charged for fast installation (sold separately)
-
Smart Control: SmartHVAC app with Amazon Alexa and Google Assistant support
-
DIYPRO Cable Included: Eliminates the need for electrical conduit
-
Follow Me Function: Remote tracks temperature around you for enhanced comfort
-
Certified Quality: Intertek listed for tested safety and performance

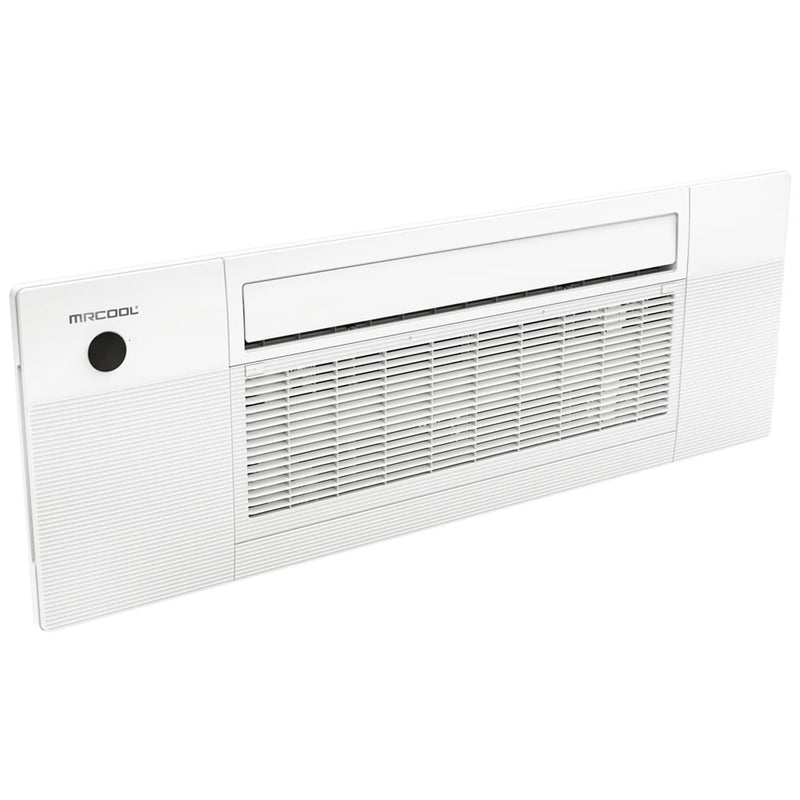

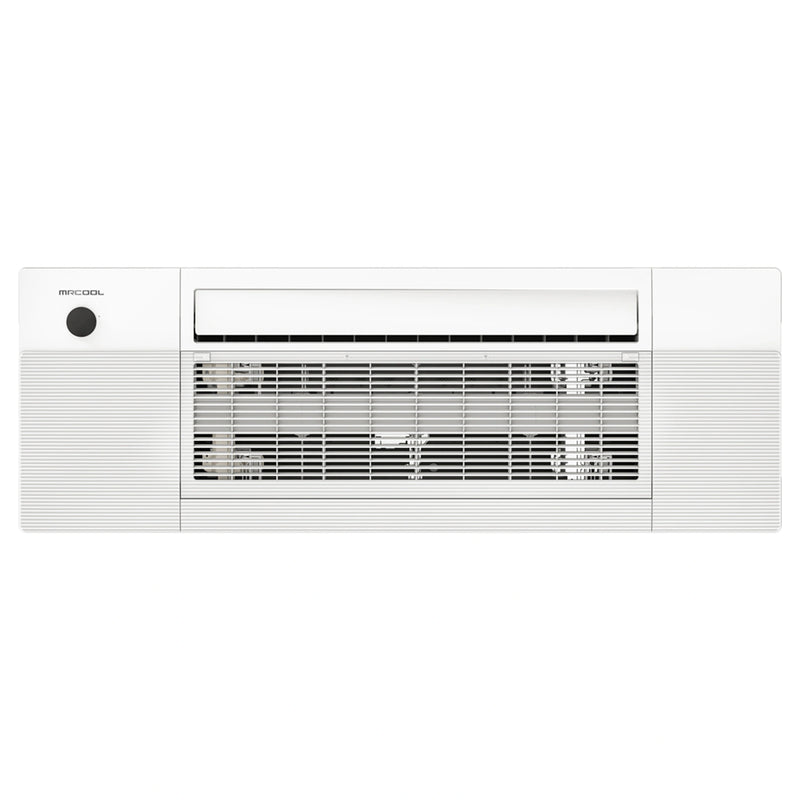

MRCOOL 18,000 BTU OuttaSight Ceiling Cassette Air Handler Mini Split 230V DIYCASSETTE18HP-230D25-O x2
The MRCOOL® DIY® Series 5th Generation OuttaSight® 18,000 BTU One-Way Ceiling Cassette delivers powerful and energy-efficient heating and cooling for areas up to 800 square feet. Designed for hassle-free installation, this ceiling-mounted mini split cassette eliminates the need for specialized HVAC tools, offering a cost-effective and straightforward setup for both residential and light commercial spaces.
Ideal for single-zone and multi-zone mini split systems, this unit installs flush between standard 16-inch ceiling joists, including pre-manufactured I-joists. Its low-profile, modern design provides a sleek and discreet appearance, making it perfect for both new construction and retrofit projects without taking up valuable wall or floor space.
The MRCOOL® OuttaSight® 18K Cassette connects easily to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant, removing the need for vacuuming and simplifying installation. Advanced filtration technology enhances indoor air quality, while the Elevation™ filter access system allows the panel to lower for easy maintenance and cleaning.
With whisper-quiet operation, multiple operating modes, and smart connectivity options, this cassette can be controlled via wireless remote, SmartHVAC app, Amazon Alexa, or Google Assistant, providing complete convenience and customizable comfort. Backed by an industry-leading warranty, the MRCOOL® OuttaSight® 18K Ceiling Cassette ensures reliable performance and year-round climate control.
Product Features & Benefits
- 18,000 BTU ceiling cassette mini split for heating and cooling up to 800 sq. ft.
- Low-profile, flush-mounted design for a sleek, modern appearance
- Fits between standard 16-inch ceiling joists, including engineered I-joists
- Compatible with MRCOOL® DIY® single-zone and multi-zone mini split systems
- DIY-friendly installation with no ductwork or wall space required
- Works with MRCOOL® DIY® Quick Connect® pre-charged line sets
- Pre-charged with eco-friendly R-454B refrigerant, no vacuuming needed
- Two-stage DC motor for efficient and consistent airflow
- Advanced filtration system to improve indoor air quality
- Elevation™ function lowers the filter panel for easy maintenance
- Swing airflow technology for uniform air distribution throughout the room
- Multiple operating modes for customized comfort
- Ultra-quiet operation for bedrooms, offices, and living spaces
- Wireless remote included for easy control
- Smart control via SmartHVAC app, Amazon Alexa, and Google Assistant
- Energy-efficient design helps reduce utility costs
- Backed by MRCOOL® warranty: limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty
