MRCOOL 5 Ton Ducted Central Split Heat Pump System 15.3 SEER Hyper Heat

Name: MRCOOL 5 Ton Ducted Central Split Heat Pump System 15.3 SEER Hyper Heat
Brand: MRCOOL
SKU: CENTRAL-60-HP-230A00
Price: 4086.0 USD
Availability: InStock
Rating: 5 (6 reviews)

By MRCOOL | SKU: CENTRAL-60-HP-230A00 | ID: 40024

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$4,086.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

5 Ton 15.3 SEER MRCOOL Central Ducted Hyper Heat Split System CENTRAL-60-HP-230A00

The 5 Ton 15.3 SEER MRCOOL Central Ducted Hyper Heat Split System (Model: CENTRAL-60-HP-MUAH230A00 / CENTRAL-60-HP-C-230A00) is a high-capacity, energy-efficient solution designed for cooling and heating larger spaces. This advanced system features a cooling capacity of 5 tons and a SEER rating of 15.3, providing powerful cooling performance while optimizing energy consumption. The system’s Hyper Heat technology ensures reliable heating even in extremely cold conditions, making it ideal for climates with harsh winters.

Product Features:

Up to 17.4 SEER2 and 10 HSPF2: With exceptional energy efficiency, this system helps reduce utility costs while maintaining a comfortable indoor climate year-round.
Variable Speed: The variable speed technology ensures precise temperature control and increases efficiency by adjusting the system’s operation to meet your needs.
Enhanced Heating Capacity: With Hyper Heat technology, this system can provide efficient heating even in the most extreme cold weather, making it perfect for winter climates.
R-410A Refrigerant: Uses environmentally-friendly R-410A refrigerant to provide superior cooling and heating performance while minimizing environmental impact.
Painted Galvanized Steel: The system's outdoor condenser is constructed with durable painted galvanized steel to withstand the elements and provide long-lasting performance.
Quiet Operation: This system operates quietly, allowing you to enjoy a comfortable indoor climate without distracting noise.
Compact, Side Discharge Design: The space-saving, side discharge design makes it easy to install in tight spaces and provides flexible placement options.
Multi-Position Installation: The system can be installed in multiple positions, making it versatile and adaptable to your space's needs.
Slide-Out Blower: The slide-out blower makes routine maintenance and cleaning simple, ensuring your system runs efficiently for years to come.

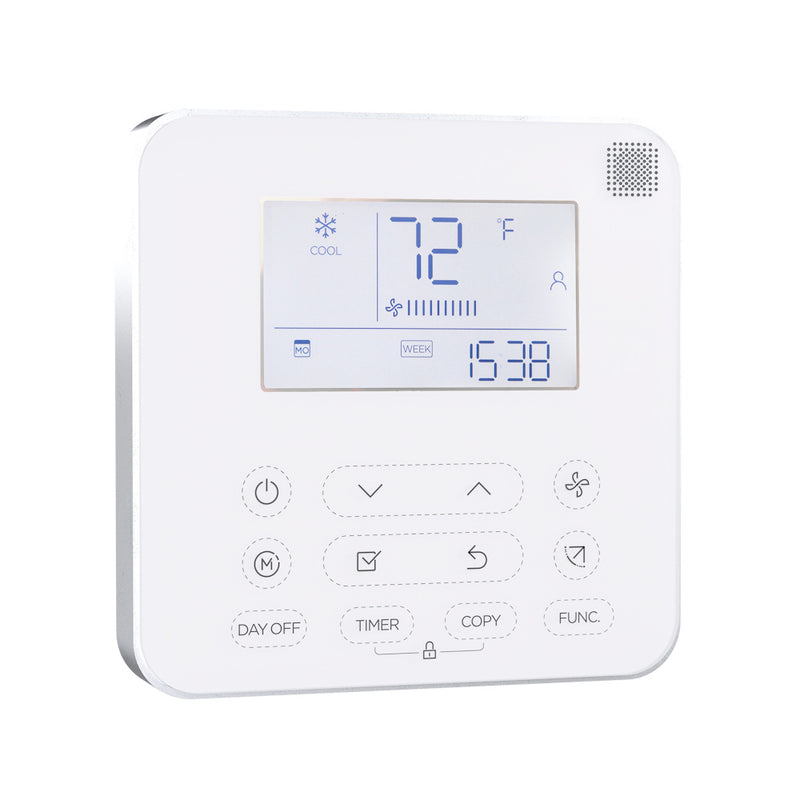

Wired Thermostat Included: Comes with a wired thermostat for easy temperature management, allowing you to adjust the system to meet your comfort needs.
Follow Me Function: This feature adjusts the temperature based on your location, optimizing comfort throughout your space.
Easy-Access Removable Filter: The system includes an easy-access, removable filter for quick maintenance and cleaner indoor air.
Modular Design: The system’s modular design makes installation and maintenance easy, allowing for quick servicing and flexibility in system configuration.
Self-Diagnostics: Built-in self-diagnostics quickly identifies and troubleshoots system issues, helping to maintain smooth operation.
Easy Maintenance: Designed for hassle-free upkeep, this system features easy-access components and user-friendly functions for long-lasting performance.

Key Benefits:

Energy-Efficient Performance: With a SEER rating of 15.3 and up to 17.4 SEER2, this system provides efficient cooling while reducing energy consumption.
Reliable Heating in Extreme Cold: The system’s Hyper Heat technology ensures that your home stays warm, even during freezing temperatures.
Eco-Friendly Refrigerant: The use of R-410A refrigerant helps minimize your environmental impact while providing efficient heating and cooling performance.
Quiet Operation: Operates quietly, providing a peaceful indoor environment for work, sleep, or relaxation.
Versatile Installation Options: The system’s multi-position installation and space-saving design make it adaptable to a wide variety of spaces, from residential to commercial settings.

Perfect For:

Residential Homes: Ideal for homeowners who need reliable heating and cooling for larger spaces, especially in regions with extreme seasonal temperatures.
Commercial Spaces: Provides optimal comfort in business and commercial environments, ensuring a pleasant atmosphere for customers and employees year-round.
Energy-Conscious Consumers: Designed for those who want to reduce their energy consumption without sacrificing comfort, offering a high SEER rating for efficient performance.

The 5 Ton 15.3 SEER MRCOOL Central Ducted Hyper Heat Split System is the ideal choice for those seeking an energy-efficient, reliable, and powerful heating and cooling system for large spaces. Whether you're upgrading your home or business, this system delivers outstanding performance, superior comfort, and long-lasting durability.

Upgrade to the MRCOOL CENTRAL-60-HP-MUAH230A00 / CENTRAL-60-HP-C-230A00 for exceptional comfort, energy savings, and a reliable climate control solution today!

View More Heat Pump Split Systems

Specifications

MRCOOL Hyper Heat 5 Ton 15.3 SEER Central Ducted Heat Pump Split System CENTRAL-60-HP-230A00

Brand	MRCOOL	SKU	CENTRAL-60-HP-230A00
Refrigerant Charge	25'	AHRI Certificate Number	210279124
Manufacturer	MRCOOL	Product Features	High Efficiency, Inverter, Low Ambient Heating, Quick Connect, Variable Speed Condenser
HSPF	9.4	HSPF2	7.6
Cooling BTU	55,000	Heating BTU	59,000
Maximum CFM	4500	Decibel Level (dBA)	51
Refrigerant	R410A	SEER2	15.3
EER	8.8	Liquid Line	1/4"
Suction Line	3/8"	Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	60	Min. Breaker Size	44
Tonnage Bundle	5 Ton	BTU/Tonnage	60,000 BTU/5 Ton
Height	Indoor 52.99" \| Outdoor: 52.48"	Width	Indoor 21.02" \| Outdoor: 37.48"
Depth	Indoor 24.49" \| Outdoor: 16.34"	Warranty	10-year Warranty on Parts, Labor, and Compressor

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser CENTRAL-60-HP-C-230A00

Brand	MRCOOL	SKU	CENTRAL-60-HP-C-230A00
Weight	272	Manufacturer	MRCOOL
Product Features	High Efficiency, Low Ambient Heating, Quick Connect, Variable Speed Condenser	HSPF2	9.4
Cooling BTU	55,000 BTU	Heating BTU	59,000 BTU
Maximum CFM	4500	Refrigerant	R410A
SEER2	15.3	Liquid Line	3/8"
Suction Line	7/8"	Electrical	208/230 V. 1 Phase 60 Hz
Max Breaker Size	60	BTU/Tonnage	60,000 BTU/5 Ton
Height	57.48"	Width	43.11"
Depth	19.49"	Warranty	10-year Warranty on Parts, Labor, and Compressor

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler CENTRAL-60-HP-MUAH230A00

Brand	MRCOOL	SKU	CENTRAL-60-HP-MUAH230A00
Weight	190	Manufacturer	MRCOOL
Product Features	Low Profile	Cooling BTU	55,000 BTU
Heating BTU	59,000 BTU	Refrigerant	R410A
Liquid Line	3/8"	Suction Line	7/4"
Electrical	208/230 V. 1 Phase 60 Hz	Max Breaker Size	15
Height	56.60"	Width	27.76"
Depth	27.36"	Warranty	10-year Warranty on Parts, Labor, and Compressor

Warranty

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser CENTRAL-60-HP-C-230A00

Warranty Type	Parts	Compressor
Registered Warranty	10 Years	10 Years

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler CENTRAL-60-HP-MUAH230A00

Warranty Type	Parts
Registered Warranty	10 Years

Documents

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser CENTRAL-60-HP-C-230A00

Brochure
Installation & Owner's Manual
Service Manual
Warranty Information
AHRI Certificate

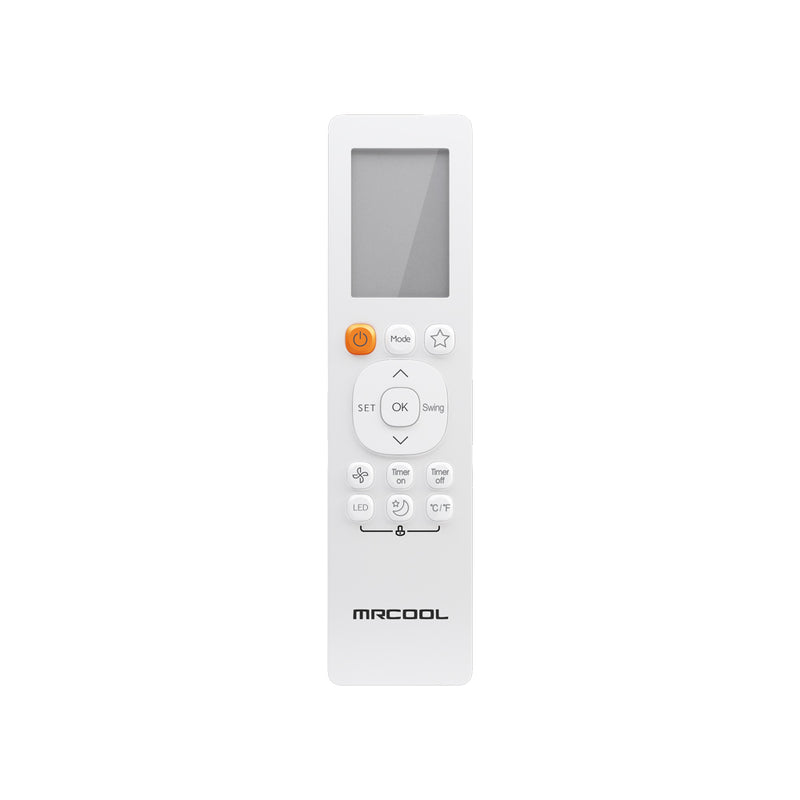

AHU Remote Control User Manual
Wired Thermostat Installation & Owner's Manual

MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler CENTRAL-60-HP-MUAH230A00

Brochure
Installation & Owner's Manual
Service Manual
Warranty Information
AHRI Certificate
AHU Remote Control User Manual
Wired Thermostat Installation & Owner's Manual
