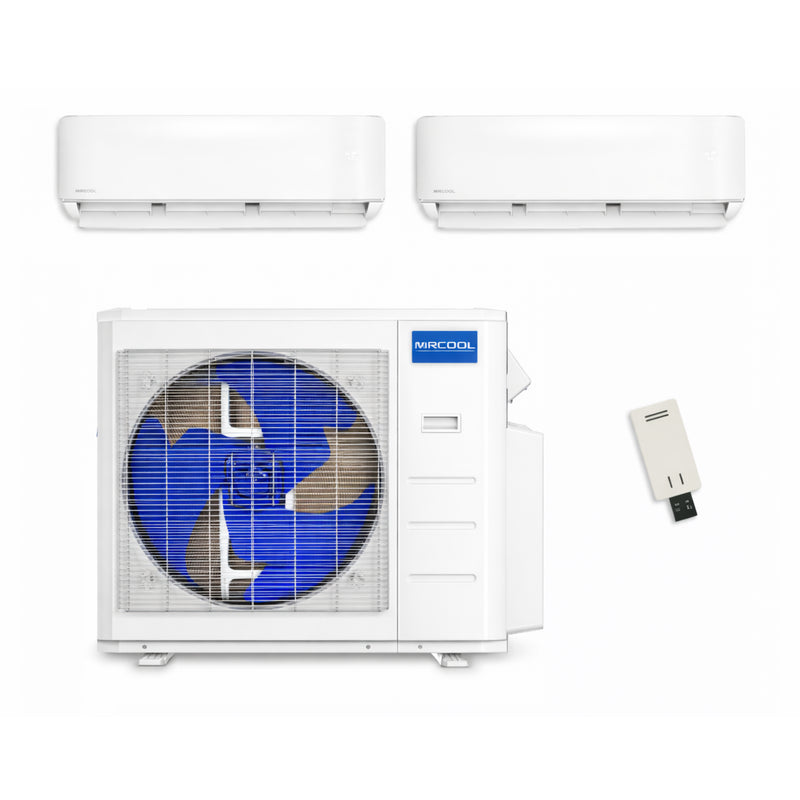

MRCOOL 55K BTU 22 SEER2 Wall Mount Mini Split System 5th Gen 2-Zone 24+36

Name: MRCOOL 55K BTU 22 SEER2 Wall Mount Mini Split System 5th Gen 2-Zone 24+36
Brand: MRCOOL
SKU: DIY-MULTI6-55HP230D-O
Price: 6055.0 USD
Availability: InStock
Rating: 4.95 (12 reviews)

By MRCOOL | Model: DIY-MULTI6-55HP230D-O / DIY-24-HP-WMAH-230D25-O / DIY-36-HP-WMAH-230D25-O | ID: 50359

✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Satisfaction Guarantee - or return within 30 Days
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability

$6,055.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Quantity

Product Details

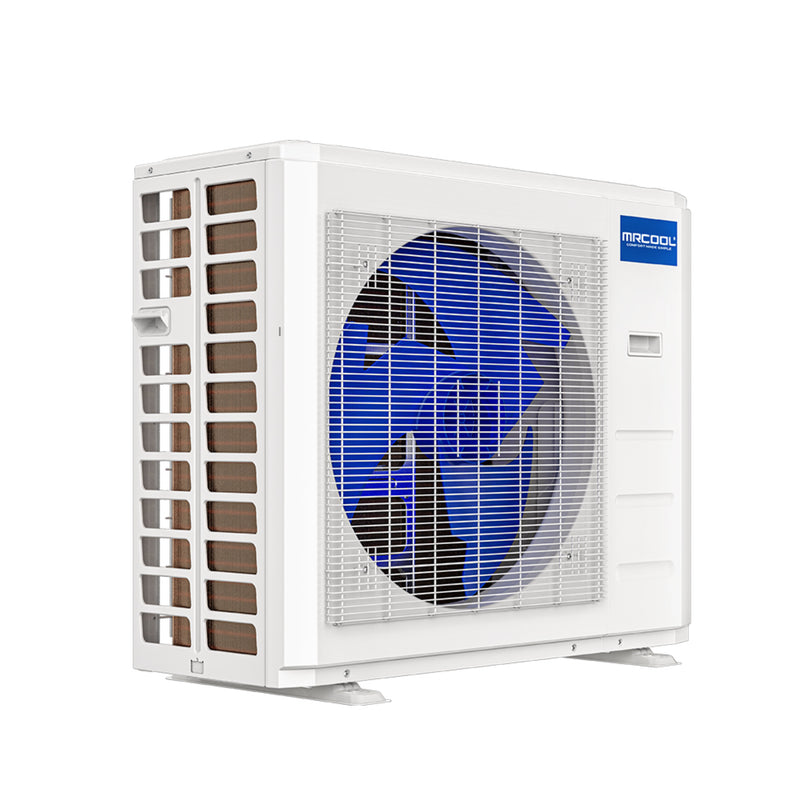

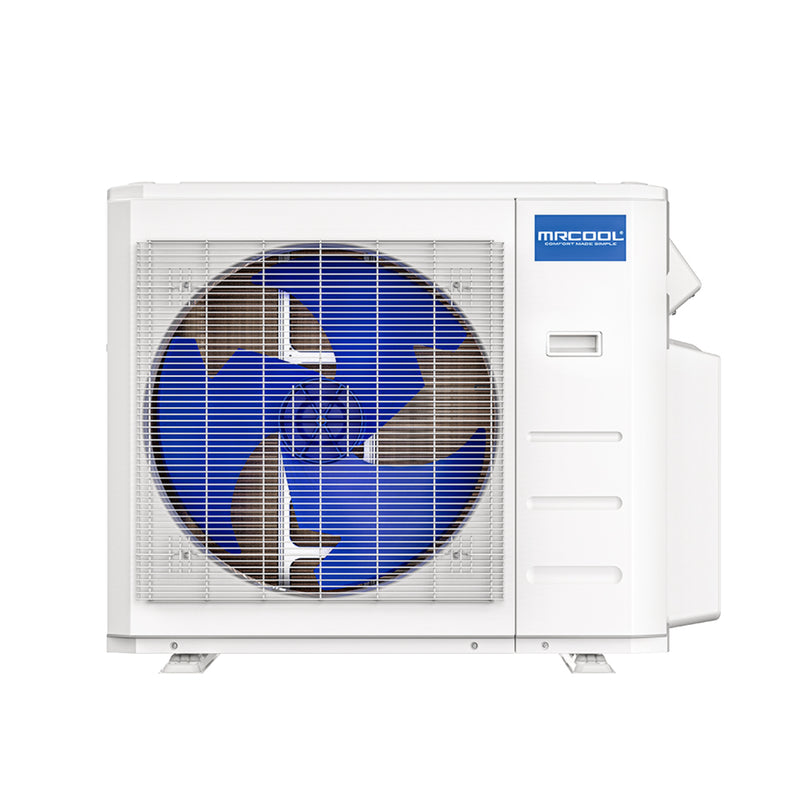

MRCOOL 55K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-55HP230D-O

The MRCOOL DIY 5th Generation 55,000 BTU Multi Zone Mini Split Heat Pump Condenser is one of the most advanced and efficient comfort solutions available today. Designed for true DIY installation, this system allows homeowners to heat and cool up to six separate spaces covering approximately 2,290 square feet, making it possible to condition an entire home using a single outdoor unit.

This condenser utilizes patented Quick Connect line sets pre-charged with environmentally friendly R-454B refrigerant, allowing installers to skip evacuation and charging steps for a faster, simpler installation. These line sets are sold separately. With impressive efficiency ratings of up to 22 SEER2 and 10.6 HSPF2-4, this system delivers reliable year-round comfort while helping reduce long-term energy costs. It supports up to six indoor air handlers, providing precise temperature control in every zone.

Comfort customization is easy with the SmartHVAC app, available for Apple and Android devices, enabling users to adjust settings, create schedules, manage operating modes, and monitor energy usage directly from their phone. Voice control compatibility with Amazon Alexa and Google Assistant offers hands-free convenience. Built for durability and safety, this condenser includes the DIYPRO cable to eliminate the need for electrical conduit and is Intertek listed for tested performance. Backed by an industry-leading warranty, this system delivers both confidence and peace of mind.

Key Features

DIY Installation: Designed for installation without professional HVAC assistance
Multi Zone Capability: Supports up to six indoor air handlers
High Efficiency: Up to 22 SEER2 and 10.6 HSPF2-4 ratings
R-454B Refrigerant: Eco-friendly and energy-efficient refrigerant
Quick Connect Line Sets: Pre-charged for fast installation (sold separately)
Smart Control: SmartHVAC app with Amazon Alexa and Google Assistant support
DIYPRO Cable Included: Eliminates the need for electrical conduit
Follow Me Function: Remote tracks temperature around you for enhanced comfort
Certified Quality: Intertek listed for safety and performance

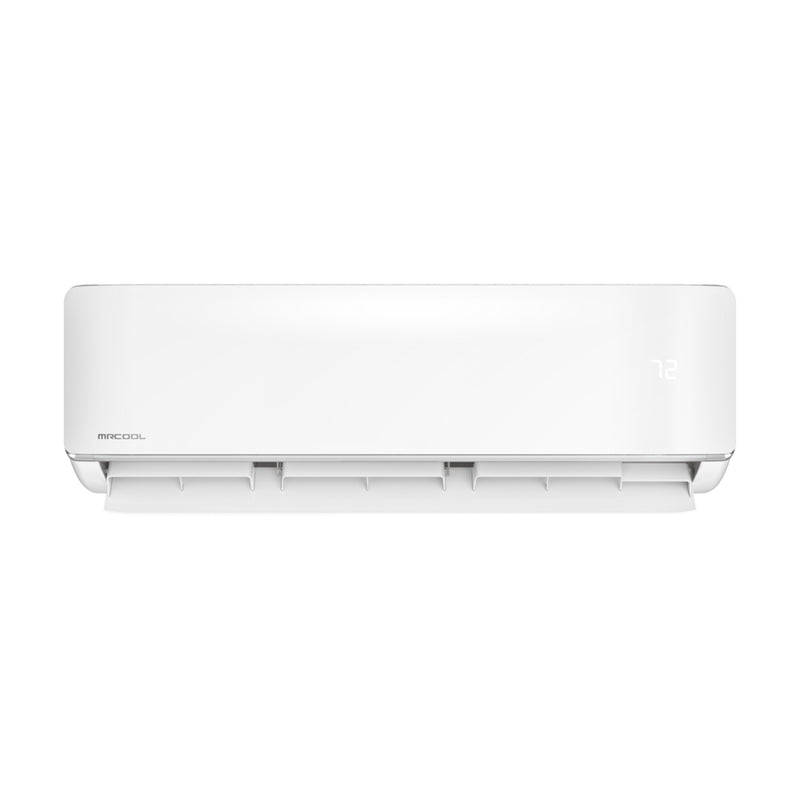

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

The MRCOOL DIY-24-HP-WMAH-230D25-O is a 24,000 BTU wall-mounted air handler designed for MRCOOL DIY® 5th Generation ductless mini-split systems. This indoor unit delivers efficient heating and cooling for small residential and light commercial spaces while supporting true DIY installation when paired with a compatible MRCOOL condenser.

Key Features

24,000 BTU wall-mounted air handler for ductless mini-split systems
Compatible with MRCOOL DIY® 5th Generation single-zone systems
208/230V power supply for standard residential electrical connections
DIY-friendly installation with QuickConnect® line set compatibility
Wi-Fi enabled for SmartHVAC app remote control
Works with Amazon Alexa and Google Assistant
Quiet operation with multiple fan speed settings
Energy-efficient heating and cooling performance
Washable and reusable air filter for easy maintenance

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

The MRCOOL DIY-36-HP-WMAH-230D25-O is a 36,000 BTU wall-mounted air handler designed for MRCOOL DIY® 5th Generation ductless mini-split systems. This indoor unit delivers efficient heating and cooling for small residential and light commercial spaces while supporting true DIY installation when paired with a compatible MRCOOL condenser.

Key Features

36,000 BTU wall-mounted air handler for ductless mini-split systems
Compatible with MRCOOL DIY® 5th Generation single-zone systems
208/230V power supply for standard residential electrical connections
DIY-friendly installation with QuickConnect® line set compatibility
Wi-Fi enabled for SmartHVAC app remote control
Works with Amazon Alexa and Google Assistant
Quiet operation with multiple fan speed settings
Energy-efficient heating and cooling performance
Washable and reusable air filter for easy maintenance

View More 2 Zone Mini Splits

Specifications

MRCOOL 55K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-55HP230D-O

Brand	MRCOOL	SKU	DIY-MULTI6-55HP230D-O
Cooling Capacity	47,000 BTU/h	Heating Capacity	55,000 BTU/h
Tonnage	4.6 Ton	Zone Capacity	Up to 6 Zones
SEER2	22	EER2	12
HSPF2-4	10.6	HSPF2-5	8.5
Refrigerant Type	R-454B	Refrigerant Volume	151.68 oz
Voltage	208/230V	Phase	1
Cycle	60 Hz	Inverter Type	DC Inverter
Max Fuse Breaker	45 A	Min Circuit Ampacity	43 A
Decibel Rating	64 dBA	Color	White
Line Set Length	25 ft	Max Line Set Length	221.4 ft
Liquid Line Size	1/4 in	Suction Line Size	(3/8 x 4) & (1/2 x 2)
Compressor Motor Type	Rotary	Net Weight	245.81 lbs
Net Dimensions (WxHxD)	37.48 x 52.48 x 16.34 in	Gross Weight	267.46 lbs
GTIN	00840255587488	UPC	840255587488

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

Brand	MRCOOL	SKU	DIY-24-HP-WMAH-230D25-O
Tonnage	2	Weight (lbs)	35.93
Voltage (V)	208/230	Phase	1
Cycle	60	Max Fuse Breaker (A)	15
Min Circuit Ampacity (A)	3	Mount Type	Wall
Color	White	Max Coverage Area	1050 sqft
Decibel Rating Low (dBA)	20	Decibel Rating High (dBA)	54
Number of Speeds	5	Oscillation	Yes
Liquid Line Size	3/8	Suction Line Size	5/8
Filter Type	Reusable	Fan Only Option	Yes
Quiet Mode	Yes	WiFi Compatibility	Yes
Remote Control Included	Yes	Energy Star Certified	Yes
AHRI Certified	Yes	UL Listed	Yes
ETL Listed	Yes	Net Dimensions (W×H×D)	42.52 × 13.19 × 8.9 in
Gross Dimensions (W×H×D)	46.73 × 14.29 × 17.68 in	Gross Weight (lbs)	49.82
Warranty	5-Years Parts, 7-Years Compressor	Proposition 65 Warning	Yes

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

Brand	MRCOOL	SKU	DIY-36-HP-WMAH-230D25-O
Tonnage	3	Weight (lbs)	48.72
Voltage (V)	208/230	Phase	1
Cycle	60	Max Fuse Breaker (A)	15
Min Circuit Ampacity (A)	3	Mount Type	Wall
Color	White	Max Coverage Area	1550 sqft
Decibel Rating Low (dBA)	27.5	Decibel Rating High (dBA)	55.5
Number of Speeds	5	Oscillation	Yes
Liquid Line Size	3/8	Suction Line Size	5/8
Filter Type	Reusable	Fan Only Option	Yes
Quiet Mode	Yes	WiFi Compatibility	Yes
Remote Control Included	Yes	Energy Star Certified	Yes
AHRI Certified	Yes	UL Listed	Yes
ETL Listed	Yes	Net Dimensions (W×H×D)	49.57 × 14.25 × 11.1 in
Gross Dimensions (W×H×D)	53.94 × 16.57 × 18.74 in	Gross Weight (lbs)	67.9
Warranty	5-Years Parts, 7-Years Compressor	Proposition 65 Warning	Yes

Warranty

MRCOOL 55K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-55HP230D-O

Warranty	Coverage
Parts	5 Years
Compressor	7 Years

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

Warranty Type	Parts	Compressor
Standard Warranty	5 years	7 years

Documents

MRCOOL 55K BTU Mini Split Heat Pump Condenser DIY 5th Gen 6 Zone R454B 230V DIY-MULTI6-55HP230D-O

Brochure

Installation Manual

Remote Manual

Service Manual

Warranty Document

MRCOOL 24K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-24-HP-WMAH-230D25-O

DIY 5th Gen Air Handler Brochure

DIY 5th Gen Air Handler Install Manual

DIY 5th Gen Air Handler Owner Manual

DIY 5th Gen Air Handler Remote Manual

DIY 5th Gen Air Handler Service Manual

DIY 5th Gen Air Handler Warranty Doc

DIY 5th Gen Air Handler Accessory Manual

MRCOOL 36K BTU Mini Split Air Handler DIY 5th Generation Wall Mount 230V DIY-36-HP-WMAH-230D25-O

DIY 5th Gen Air Handler Brochure

DIY 5th Gen Air Handler Install Manual

DIY 5th Gen Air Handler Owner Manual

DIY 5th Gen Air Handler Remote Manual

DIY 5th Gen Air Handler Service Manual

DIY 5th Gen Air Handler Warranty Doc

DIY 5th Gen Air Handler Accessory Manual
