Rinnai 21,500 BTU Natural Gas Direct Vent Wall Furnace White 162.7 CFM 120V

By Rinnai | Model: EX22DTWN | ID: 60214
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$2,325.40 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Product Details

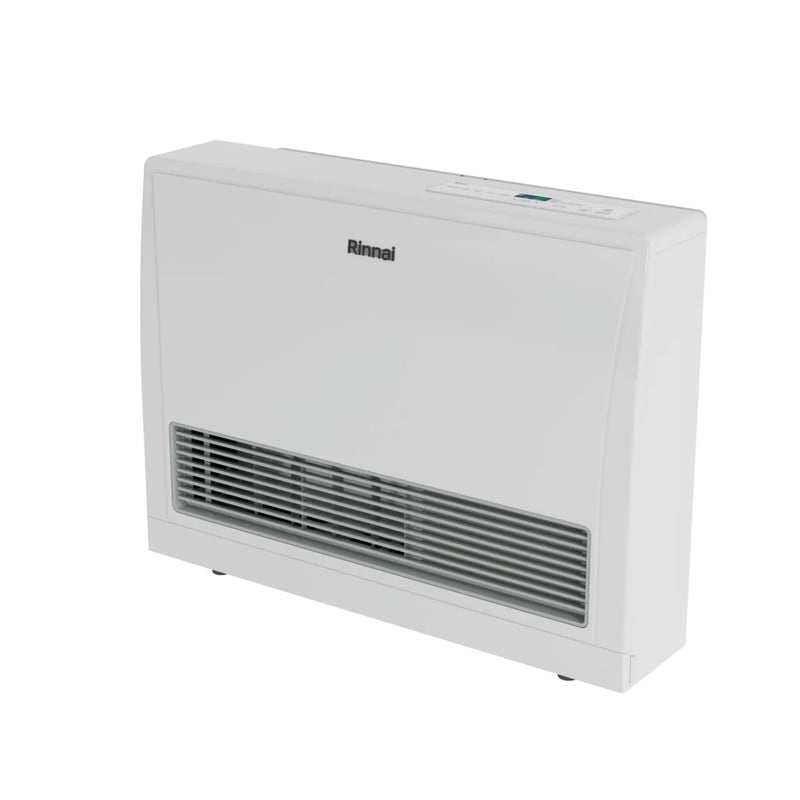

Rinnai 21,500 BTU Natural Gas Direct Vent Wall Furnace White 162.7 CFM 120V EX22DTWN

This direct vent wall furnace is engineered to provide dependable supplemental heating for homes, apartments, condominiums, and commercial settings. Approved for modular and mobile homes, it utilizes forced combustion and forced convection technology to deliver consistent, efficient warmth while maintaining quiet operation and safety.

Equipped with advanced monitoring systems, the furnace automatically restarts if ignition or combustion fails, delivers precise multi-stage gas flow, and alerts users for maintenance needs. Its quiet fan design, temperature accuracy, and safety features ensure comfort and reliability for a variety of indoor environments.

Key Features

  • Automatic Restart: Restarts safely in the event of ignition or combustion failure
  • Timer-Controlled Operation: Starts and shuts off the heater at two programmable timer settings
  • Multi-Stage Gas Flow: Operates from one to seven stages for precise heating control
  • Temperature Accuracy: Detects temperature changes as small as 0.5°F
  • Wind Resistance: Monitors and controls combustion fan to operate in winds up to 40 mph
  • Continuous Function Monitoring: Provides auto shutdown codes for enhanced safety
  • Maintenance Alerts: Indicates when air filter cleaning is required
  • Quiet Operation: Swept convection fan blades and controlled part expansion reduce noise
  • Flexible Installation: Suitable for residential, commercial, and modular/mobile homes

View More Direct Vent Wall Furnaces

Specifications

Rinnai 21,500 BTU Natural Gas Direct Vent Wall Furnace White 162.7 CFM 120V EX22DTWN

Brand Rinnai SKU EX22DTWN
BTU 21,500 BTU Weight 51 lb / (23 kg)
Cascading (Y/N) No Central Heating Capacity 21,500 BTU / (6.3 kW)
Central Heating Heat Exchanger Material STAINLESS STEEL Central Heating Input (Btu&kW) - Maximum 21,500 BTU / (6.3 kW)
Color White Fan Output - High (CFM) 162.7
Fan Output - Low (CFM) 110.5 Gas Supply Connection 1/2" FNPT / (13mm)
Heated Area (Sq. Ft.) 835 Heating - Fuel Gauge Available No
Heating - Remote Control Available No Heating - Timer Available Yes
Heating Input Natural Gas - Maximum 21,500 BTU / (6.30 kW) Heating Input Natural Gas - Minimum 8,200 BTU / (2.4 kW)
Heating Technology Type Convection Heating Temperature Range (Commercial) (°F/°C) 60-80°F
Heating Temperature Range (Residential) (°F/°C) 60-80°F Ignition System Direct Electronic Ignition
Number of Heat Settings Variable Product Depth 10.1 in / (257 mm)
Product Height 22.9 in / (589 mm) Product Width 29.9 in / (760 mm)
Product Weight 51 lb / (23 kg) Warranty 2 Years on Labor / 5 Years on Parts / 10 Years on Heat Exchanger
Warranty

Rinnai 21,500 BTU Natural Gas Direct Vent Wall Furnace White 162.7 CFM 120V EX22DTWN

Warranty Type Heat Exchanger Parts Labor
Standard For Residential 10 years 5 years 2 years
Documents

Rinnai 21,500 BTU Natural Gas Direct Vent Wall Furnace White 162.7 CFM 120V EX22DTWN

Brochure

Specification Sheet

Warranty

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
