Rinnai Plumbing Kit For M Series Boilers

By Rinnai | Model: 803000023 | ID: 60361
No Sales Tax - in most states excluding California
Free Shipping - on items over $1000
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$317.00 + SHIPPING
Product Details

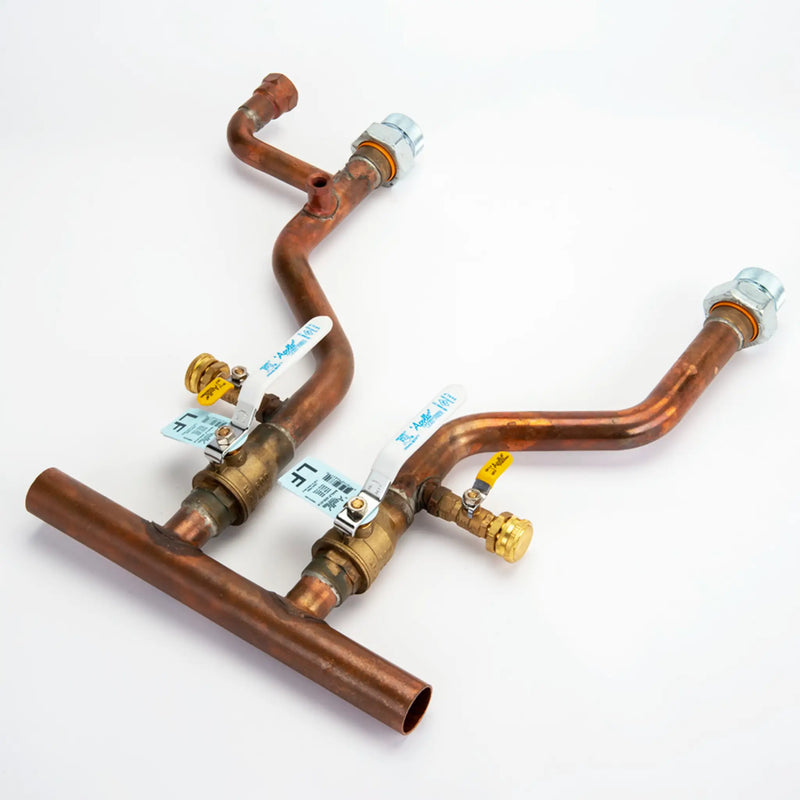

Rinnai Plumbing Kit for M Series Boiler 803000023

The Rinnai 803000023 Plumbing Kit is designed for use with Rinnai M Series boilers and includes a closely spaced tee that functions as a hydraulic separator. This component separates the boiler loop from the central heating loop, allowing both systems to operate independently for improved system balance and efficiency.

Hydraulic separation helps eliminate the need for pump curve matching or complex flow calculations, making it an ideal solution for multi-zone and multi-temperature hydronic heating systems. This plumbing kit supports stable system performance while simplifying installation and system design for residential and commercial boiler applications.

Product Features

  • Plumbing kit designed for Rinnai M Series boiler installations
  • Includes closely spaced tee acting as a hydraulic separator
  • Separates boiler loop from central heating loop for improved system balance
  • Eliminates the need for pump curve matching in hydronic systems
  • Reduces complexity of flow calculations during system design
  • Ideal for multi-zone and multi-temperature hydronic heating systems
  • Helps maintain stable flow and pressure between connected loops
  • Improves overall efficiency and performance of boiler heating systems
  • Designed for professional installation in residential and commercial applications
  • Official Rinnai accessory for M Series boiler system configurations

View More Rinnai Parts

Specifications

Rinnai Plumbing Kit for M Series Boiler 803000023

Brand Rinnai SKU 803000023
Product Type Plumbing Kit Material Copper

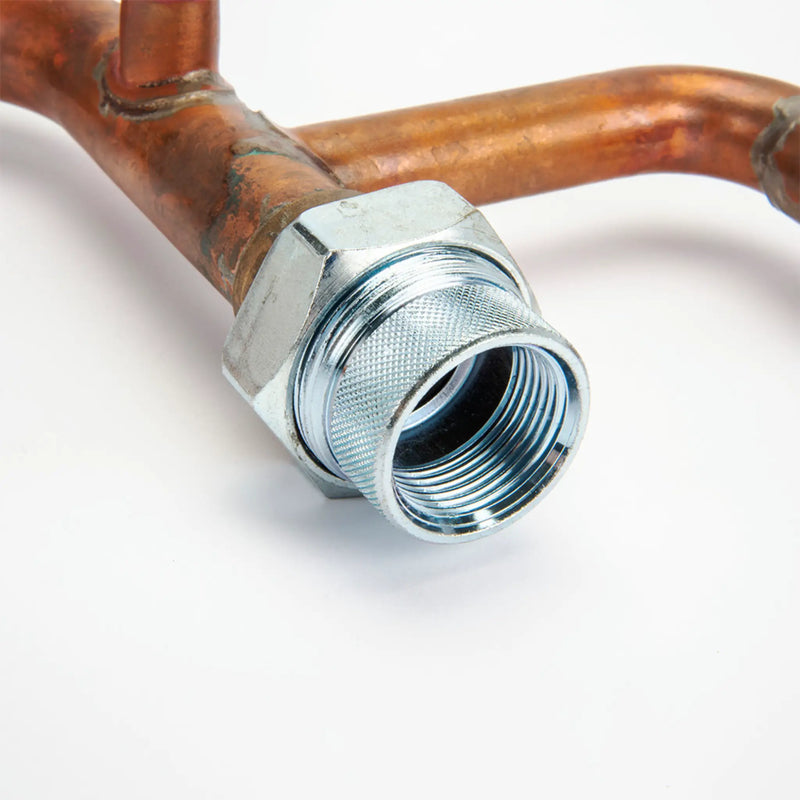

Finish Bronze / Copper Metallic Supply Connection Size 1-1/4"
Connection Type Manifold Compatible Models M060C, M090C, M120C, M160C, M060S, M090S, M120S, M160S
Product Width 19 in Product Height 10 in
Product Depth 10 in Product Weight 9.5 lb
Application Factory plumbing kit designed for hydraulic separation and installation of Rinnai M-Series condensing boilers
