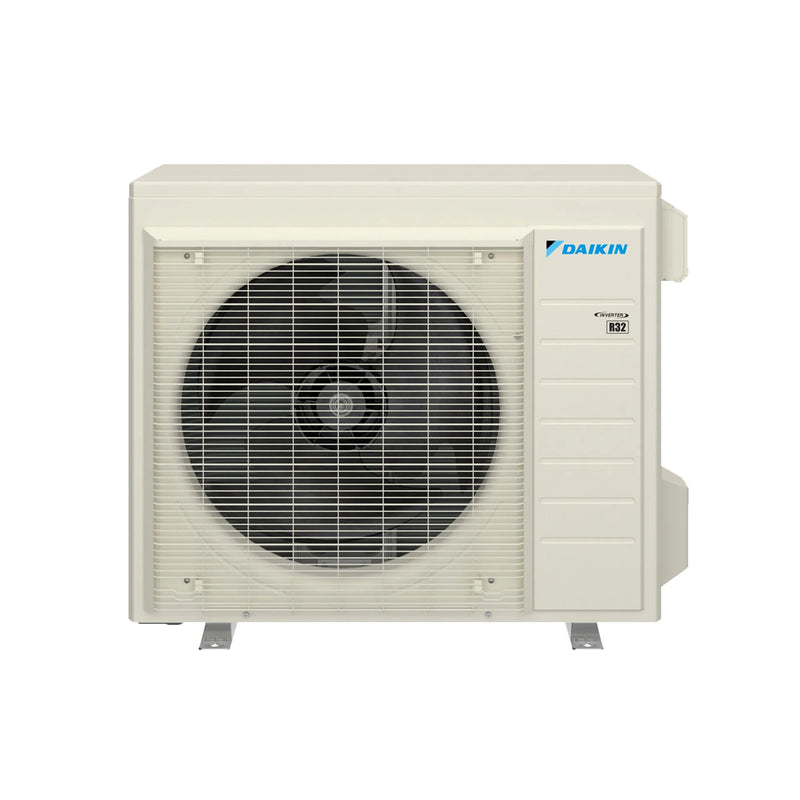

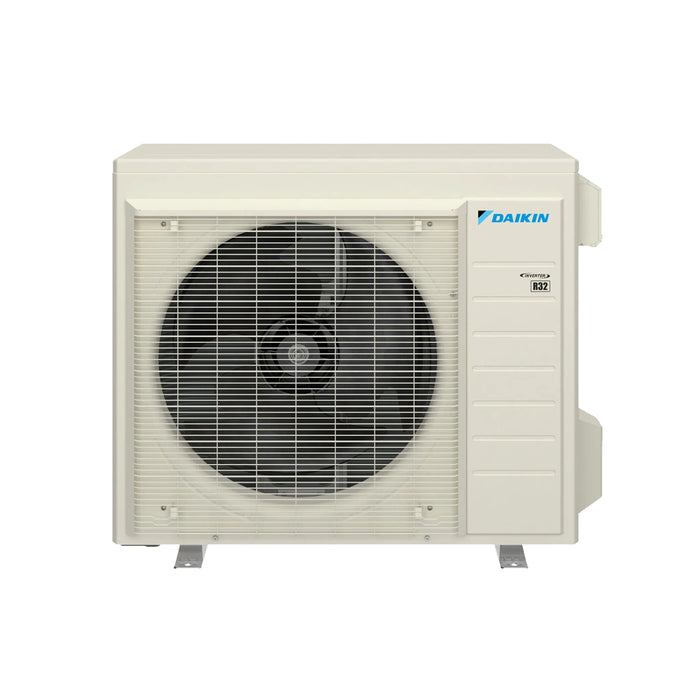

Daikin 4MXM36AVJU9

Daikin 36,000 BTU MXM Mini Split Heat Pump Condenser Multi-Zone 230V R32

By Daikin | Model: 4MXM36AVJU9 | ID: 660765
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,436.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Daikin 36,000 BTU MXM Mini Split Heat Pump Condenser Multi-Zone 230V R32 4MXM36AVJU9

The 36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is a powerful and energy-efficient solution for multi-zone climate control. Designed to support 2, 3, 4, and 5-zone multi-port configurations, this unit provides exceptional heating and cooling performance for both residential and commercial applications. Featuring R32 refrigerant and an inverter-driven compressor, it ensures long-term efficiency, reliability, and comfort in any environment.

Key Features

  • Supports up to a 4 Ton Heat Pump System - Delivers high-performance multi-zone climate control
  • Exceptional Efficiency - Provides up to 20.6 SEER2, 12 EER2, and 9.7 HSPF2 for superior energy savings
  • Reliable Heating & Cooling Capacity - 100% heating capacity at 5°F (MXT Enhanced Capacity only); 100% cooling capacity at 104°F (MXT Capacity only)
  • Wide Temperature Operating Range - MXM Heating: 5°F to 60°F; MXT Heating: -13°F to 60°F; Cooling: 14°F to 115°F
  • Multi-Zone Compatibility - Supports 2, 3, 4, and 5-zone systems for flexible indoor comfort solutions
  • Precharged Refrigerant - Precharged for up to 131 ft of liquid line to streamline installation
  • Auto Changeover - Automatically switches between heating and cooling as needed
  • Quiet Operation - Outdoor sound pressure as low as 52 dB(A); Indoor sound pressure as low as 24 dB(A)
  • Self Diagnostics - Integrated digital display for quick maintenance and troubleshooting
  • Auto Restart Function - Automatically resumes operation after power failures
  • Anti-Corrosion Protection - Heat exchanger treated for enhanced durability and long service life
  • 12-Year Limited Parts Warranty - Manufacturer-backed performance assurance
  • 12-Year Extended Labor Warranty - Comprehensive protection for long-term peace of mind

The 36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser is an ideal choice for homeowners and businesses looking for an advanced, energy-efficient multi-zone climate control solution. With smart inverter technology, ultra-quiet operation, and outstanding durability, this unit ensures reliable comfort and efficiency throughout the year.

View More Mini Split Condensers

Specifications

Daikin 36,000 BTU MXM Mini Split Heat Pump Condenser Multi-Zone 230V R32 4MXM36AVJU9

Brand Daikin SKU 4MXM36AVJU9
SEER2 Rating 20 Tonnage 3 Ton
Weight 142 lbs Manufacturer Daikin
Replaces 4MXS36WMVJU9 Cooling BTU 36,000
Decibel Level (dBA) 60 Refrigerant R32
Compressor Type Swing Liquid Line 1/4" (4)
Suction Line 3/8" (1), 1/2" (2), 5/8" (1) Electrical 208-230 V | 60 Hz |1 Phase
Max Breaker Size 25 Amps Min. Breaker Size 24.1 Amps
Min/Max Outdoor Temp for Heating -13°F to 60°F Min/Max Outdoor Temp for Cooling 14°F to 115°F
Zone Compatibility Multi Zone Height 29.5"
Width 34.16" Depth 12.58"
Warranty Limited 12-Year Parts Warranty
Warranty

Daikin 36,000 BTU MXM Mini Split Heat Pump Condenser Multi-Zone 230V R32 4MXM36AVJU9

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 years 5 years 5 years
Registered Warranty 12 years 12 years 5 years
Documents

Daikin 36,000 BTU MXM Mini Split Heat Pump Condenser Multi-Zone 230V R32 4MXM36AVJU9

Installation PDF Guide

Warranty Guide

Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at support@hvacstore.com.

Returns: For returns unrelated to damage, contact us at support@hvacstore.com for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at support@hvacstore.com or call (833) 658-3387.
