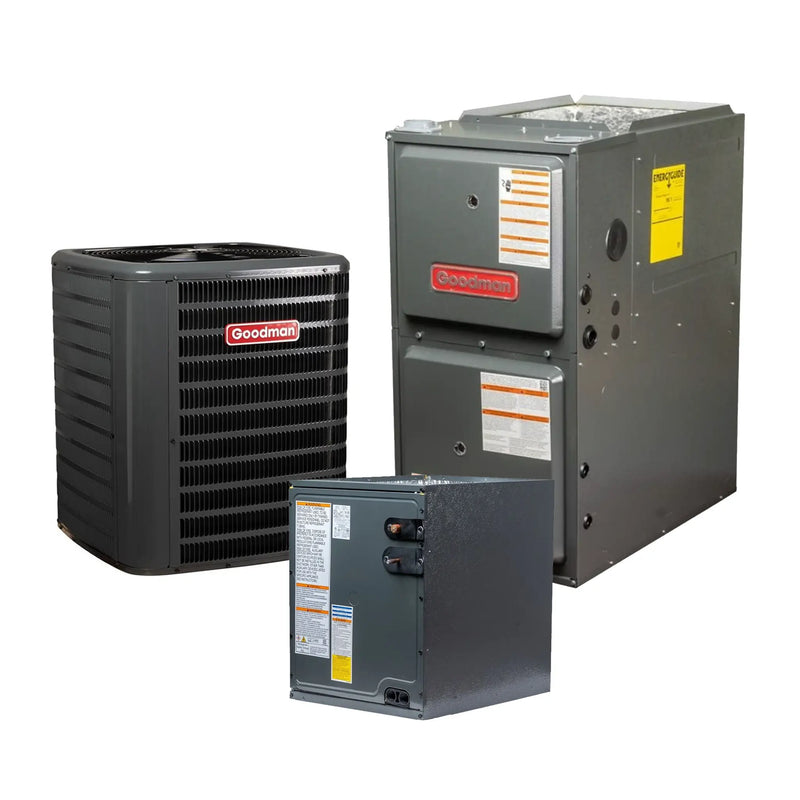

Goodman GLXS4BA1810 GR9T960603BN CAPTA1818B3

Goodman 1.5 Ton 14.3 SEER2 AC Furnace System 96% AFUE 60K BTU Vertical R32

By Goodman | Model: GLXS4BA1810 / GR9T960603BN / CAPTA1818B3 | ID: 100341
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$4,579.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

This HVAC system delivers efficient cooling performance with a high-efficiency scroll compressor and eco-friendly R32 refrigerant. Featuring advanced Copeland CoreSense Technology and a durable cabinet design, this unit offers long-lasting reliability and quieter operation. Pre-charged for simplified installation and equipped with user-friendly service access, it's ideal for both residential and light commercial use. AHRI Certified and ETL Listed, it ensures consistent performance and safety compliance.

Key Features

  • High efficiency scroll compressor – Delivers reliable performance and energy savings for improved cooling efficiency
  • High-density foam compressor sound blanket – Minimizes operational noise for a quieter environment
  • Advanced Copeland CoreSense Technology – Enhances system diagnostics and operational reliability
  • Fully charged for 15' of tubing length – Pre-loaded with refrigerant to reduce installation time and costs
  • Copper tube/enhanced aluminum fin coil (5mm diameter) – Provides efficient heat transfer and long-term durability
  • Factory-installed filter drier – Protects against moisture and contaminants in the refrigerant system
  • Sweat connection service valves – Easy-access gauge ports simplify servicing and maintenance
  • Enclosed contactor with lug connection – Safeguards electrical components from moisture and debris
  • High-pressure switch – Increases safety by monitoring system pressure levels
  • Capacitors with extended life – Built to last for long-term system reliability
  • AHRI Certified – Verifies performance and energy efficiency ratings
  • ETL Listed – Confirms compliance with North American safety standards

Cabinet Features

  • Removable grille-style top design – Compliant with UL 60335-2-40 and allows easy coil access for cleaning
  • Venturi for increased airflow velocity – Enhances system airflow for better performance
  • Architectural Gray powder-coated finish – Approved for 500-hour salt-spray exposure for weather resistance
  • Wire fan discharge grille – Durable and designed for safety
  • Steel louver coil guard – Protects coil from debris and external damage
  • Top and side maintenance access – Simplifies service and diagnostics
  • Single-panel control access – Includes space for field-installed accessories for flexible configurations
  • Florida Building Code compliant (2023) – Meets hurricane-type wind integrity requirements when properly anchored

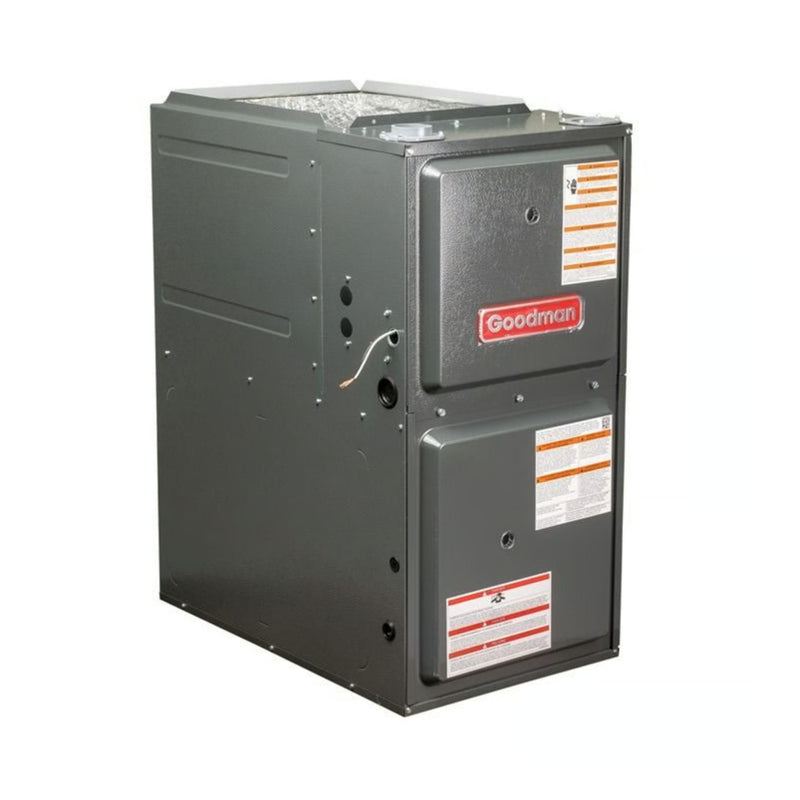

Goodman 96% 60K BTU Gas Furnace 9 Speed Two Stage Upflow/Horizontal R32 GR9T960603BN

Key Features

  • 60,000 BTU Input / 57,600 BTU Output – Ideal for medium-sized homes, providing powerful and efficient heating.
  • 96% AFUE Efficiency – High-efficiency condensing furnace reduces gas waste and lowers energy bills.
  • Two-Stage Burner – Operates at partial capacity for mild weather and full capacity for colder days, improving comfort and energy use.
  • 9-Speed ECM Blower Motor – Offers precise, quiet airflow and improved efficiency over traditional motors.
  • Heavy-Gauge Insulated Steel Cabinet – Minimizes heat loss and reduces operating noise for quieter performance.
  • Durable Hot Surface Ignitor – Reliable and maintenance-friendly ignition system outperforms pilot lights.
  • Self-Diagnostic Control Board – Continuously monitors system performance and simplifies troubleshooting.
  • Natural Gas Ready – Easily convertible to propane with an optional LP conversion kit (sold separately).
  • Plastic/PVC Flue Venting Required – Supports condensing operation with safe and efficient exhaust.
  • Flexible Installation Options – Supports upflow and horizontal applications for different home configurations.
  • 10-Year Parts Warranty & Lifetime Heat Exchanger Warranty – With proper registration, provides long-term peace of mind.

Performance Highlights

  • High-Efficiency Heating – With 96% of fuel converted into heat, only 4% is lost through exhaust, maximizing cost savings.
  • Two-Stage Operation – Runs longer at lower speeds to maintain temperature more evenly and efficiently.
  • Advanced Blower Motor – The ECM motor enhances airflow control, reduces electricity usage, and provides quieter operation.

Durability & Reliability

  • Heavy-Duty Steel Cabinet – Built to last, with internal insulation to retain heat and reduce noise.
  • Hot Surface Ignitor – Eliminates the need for a standing pilot, improving reliability and reducing service needs.
  • Aluminized Steel Heat Exchanger – Corrosion-resistant and engineered for long-term durability.

Installation & Compatibility

  • Upflow & Horizontal Compatible – Designed for basements, attics, or closets with horizontal or vertical setups.
  • Color-Coded Low-Voltage Terminals – Simplifies electrical connections and speeds up installation.
  • Optional LP Kit – Convert to propane fuel with an additional kit (sold separately).
  • Drain Kit Required for Horizontal Installation – Ensures proper condensate management during horizontal setup.

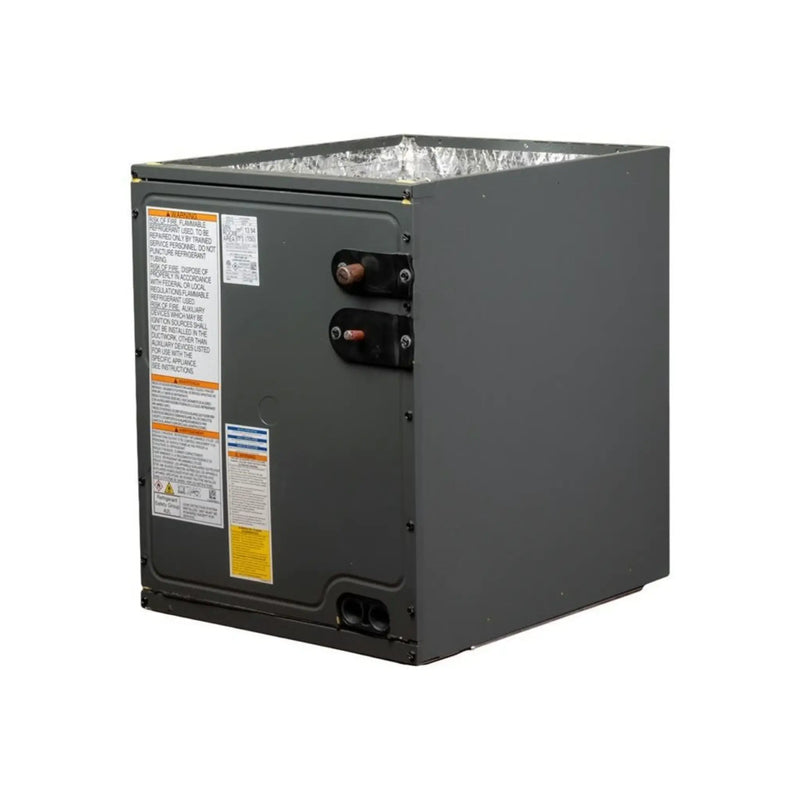

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Key Features

  • Optimized for R-32 Refrigerant – Specifically designed with circuits and manifolds to support R-32 performance and efficiency
  • Integrated R-32 Sensor – Built to align with the coil's expected service life for reliable operation
  • Factory-Installed TXV – CAPTA and CHPTA models include pre-installed thermal expansion valves for both cooling and heat pump compatibility
  • Standard Copper Suction Tube Stub Length – Simplifies installation and service across a range of system setups
  • Single Front Access Panel – Offers easy accessibility for maintenance on CAPTA and CHPTA models
  • Foil-Faced Insulation – Reduces cabinet condensation and improves indoor air quality
  • Galvanized Leather Grain-Embossed Finish – Enhances durability and resists corrosion for long-lasting performance
  • UV-Resistant Drain Pan – Rust-resistant and low water-retention thermoplastic design for extended life
  • Secondary Drain Connections – Built into the DecaBDE-free drain pan for better moisture control
  • Drain Pan Rails – Make coil removal and repositioning easy during installation or service
  • AHRI Certified & ETL Listed – Verifies the unit meets performance and safety standards

View More Air Conditioner & Furnace Systems

Specifications

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

Brand Goodman SKU GLXS4BA1810
Tonnage 1.5 Tons Weight 132 lbs
Manufacturer Goodman Replaces GSXN401810, GSXM401810 & GSX140181
SEER2 (Efficiency) 14.3 Cooling BTU 18,000
Product Features New Refrigerant Compliant Decibel Level (dBA) 74
Refrigerant R32 Condenser Stages Single Stage
Compressor Type Rotary Liquid Line 3/8"
Suction Line 3/4" Liquid Valve Size 3/8"
Suction Valve Size 3/4" Electrical 208/230v 1 Phase 60Hz
Max Breaker Size 15 Amps Min. Breaker Size 10.9 Amps
Connection Sweat Height 27"
Width 26" Warranty 10-Limited Years

Goodman 96% 60K BTU Gas Furnace 9 Speed Two Stage Upflow/Horizontal R32 GR9T960603BN

Brand Goodman SKU GR9T960603BN
Manufacturer Goodman Replaces GM9C960603BN
Type Gas Heat Category Gas Furnaces
Refrigerant R-32 AHRI Certificate Number 215225026
Airflow Direction Upflow/Horizontal Configuration Upflow/Horizontal
Product Features New Refrigerant Compliant Energy Star Yes
Furnace Efficiency / AFUE 96% Heating BTU Input 60,000
High Fire Output 57,600 Blower Motor 9 Speed - ECM
Maximum CFM 1200 Horsepower 1/2 HP
Electrical 115 V. 1 Phase 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 7.8 Amps Burner Stages Two
Fuel Type Propane, Natural Gas No. of Burners 3
Vent Diameter 2" - 3" Exhaust Flue Requirement Plastic / PVC
Filter Size (1) 16 x 25 (side) or (bottom) UPC 633190210593
Height 34.5" Width 17.5"
Depth 28.75" Warranty Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration



Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Brand Goodman SKU CAPTA1818B3
Tonnage 1.5 Tons Manufacturer Goodman
Replaces CAPTA1818B4 Type Evaporator Coils
Refrigerant R-32 Liquid Line 3/8''
Suction Line 3/4'' Height 18''
Width 17.5'' Depth 21''
Application Vertical Warranty Parts Warranty 10-Limited Years
Warranty

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts

Goodman 96% 60K BTU Gas Furnace 9 Speed Two Stage Upflow/Horizontal R32 GR9T960603BN

Warranty Type Heat Exchanger Parts Unit
Standard Warranty 5 years 5 years 5 years
Registered Warranty Lifetime 10 years 10 years

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

GLXS4B Installation Manual

GLXS4B Specifications Sheet

GLXS4B Service Manual

Goodman Condenser Warranty

Goodman 96% 60K BTU Gas Furnace 9 Speed Two Stage Upflow/Horizontal R32 GR9T960603BN

GD9T96 GR9T96 Installation Manual

GD9T96 GR9T96 Specification Sheets

GD9T96 GR9T96 Parts Manual

GD9T96 GR9T96 Warranty Information

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Installation Manual

Specification Sheets

Service Manual

Warranty Information
