Goodman 1.5 Ton R32 Split Air Conditioner Condenser 13.4 SEER2 Single Stage GLXS3BN1810
This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.
Key Features
- New R32 Freon
- Removable grille-style top design, compliant with UL 60335-2-40
- Venturi for increased airflow velocity
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds when properly anchored

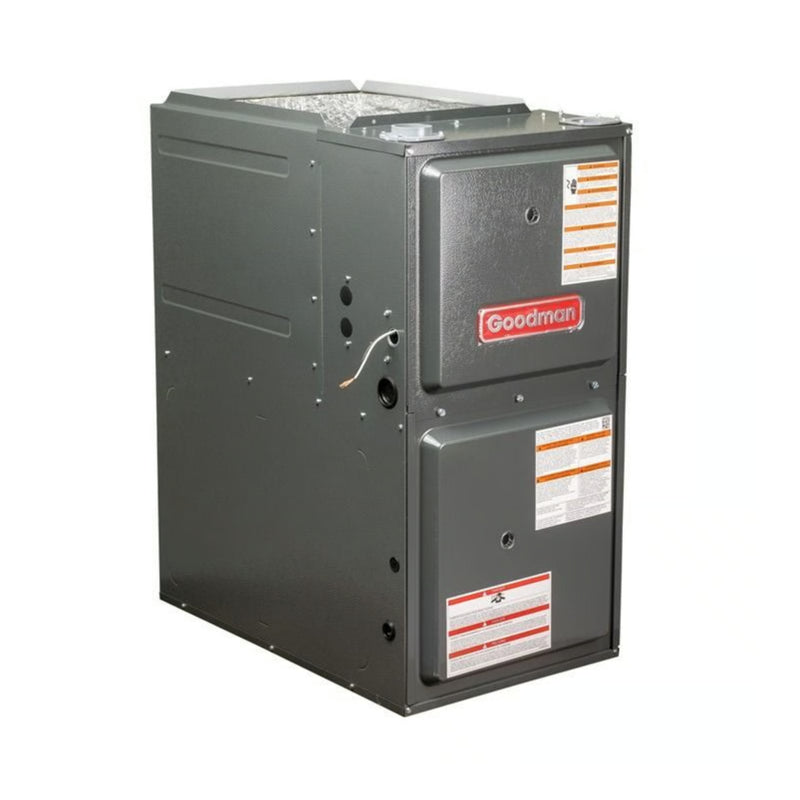

Goodman 96% AFUE 80K BTU Gas Furnace Two Stage 17.5"W R32 Upflow/Horizontal GR9T960803BN
Key Features
-
80,000 BTU Input / 76,800 BTU Output – Ideal for medium-sized homes in most climates.
-
96% AFUE Efficiency – Reduces fuel waste and lowers heating bills.
-
Two-Stage Burner – Adjusts heating output for better comfort and efficiency.
-
9-Speed ECM Blower Motor – Offers quieter, energy-efficient, and consistent airflow.
-
Heavy-Gauge Insulated Steel Cabinet – Minimizes heat loss and reduces sound levels.
-
Durable Hot Surface Ignitor – Reliable ignition without the need for a standing pilot light.
-
Self-Diagnostic Control Board – Enables quick troubleshooting and system monitoring.
-
Natural Gas Ready – Convertible to propane with optional LP kit (sold separately).
-
Plastic/PVC Flue Venting Required – Proper venting for high-efficiency condensing operation.
-
Flexible Installation – Supports both upflow and horizontal configurations.
-
Warranty Protection – 10-year parts and lifetime heat exchanger warranty (with online registration).
Efficient 96% AFUE Performance
The GR9T960803BN provides high-efficiency heating with a 96% AFUE rating, converting nearly all fuel into usable heat. Only 4% is lost through venting, delivering superior performance while helping reduce utility costs over time.
Advanced Two-Stage Heating
With a two-stage burner, the furnace runs at a lower setting during milder weather and ramps up to full capacity when needed. Combined with a 9-speed ECM blower motor, it ensures more even temperatures, reduced energy consumption, and quiet operation.
Durability You Can Trust
Built with a heavy-gauge steel cabinet and aluminized steel heat exchanger, the GR9T960803BN is engineered for long-term reliability. Its insulated cabinet helps contain heat and suppress operational noise, while the hot surface ignitor enhances efficiency and dependability.
Installation & Maintenance
-
Installation Options: Supports both upflow and horizontal orientations to fit various layouts.
-
Wiring: Color-coded low-voltage terminals simplify the wiring process.
-
Fuel Type: Factory-configured for natural gas; convertible to propane with an LP conversion kit.
-
Drainage: Horizontal installations require a drain kit (sold separately); upflow configurations do not.
Warranty Information
Backed by a 10-year parts warranty and a lifetime heat exchanger warranty (registration required), this furnace offers long-term protection and value when installed per manufacturer and local code requirements.
Goodman 2 Ton Evaporator Coil Cased With TXV 17.5" Height Horizontal CHPTA2426B3
The Goodman CHPTA2426B3 horizontal evaporator coil is engineered to provide efficient cooling and heating system performance when paired with a compatible condenser and furnace or air handler. Designed for horizontal installations, this coil features a factory-installed TXV valve, a mold-resistant drain pan, and durable aluminum construction. Its R32 refrigerant compatibility makes it a future-ready, environmentally responsible choice that complies with the Clean Air Act requirements.
Key Features
- 2-ton horizontal evaporator A-coil for AC or heat pump systems
- Factory-installed TXV for improved efficiency and refrigerant flow control
- R32 refrigerant compliant for enhanced environmental sustainability
- Durable galvanized, embossed cabinet with foil-faced insulation
- Thermoplastic, corrosion-resistant drain pan with antimicrobial protection
- Aluminum tube and fin coil for long-lasting performance
- Front-access split-seam panel for easier service and maintenance
- ETL Listed and AHRI Certified for quality and performance
