Goodman 1.5 Ton 14.3 SEER2 Central Air Conditioner Condenser Single Stage GLXS4BA1810
This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.
Product Benefits:
- High efficiency scroll compressor
- High-density foam compressor sound blanket
- Advanced Copeland CoreSense Technology
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor with lug connection
- High-pressure switch
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds
Goodman 80% 80,000 BTU Gas Furnace Two Stage 17.5"W Upflow/Horizontal R32 GR9T800803BN
The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers efficient, reliable, and quiet home heating. With an 80,000 BTU capacity, a durable SureStart® Silicon Nitride igniter, and a two-stage gas valve, this furnace is designed to provide enhanced comfort, reduced noise, and consistent performance. The multi-speed ECM blower motor improves energy efficiency and airflow throughout your home, while the self-diagnostic control board streamlines maintenance and system checks.
This model complies with California Low NOx emissions standards and is AHRI Certified and ETL Listed for quality assurance. It also offers flexible installation options and a fully insulated, heavy-duty cabinet for quieter operation and increased energy retention. Whether you’re upgrading or installing new, this Goodman furnace is built for dependable comfort in a variety of home configurations.
Key Features
-
80,000 BTU Heating Capacity – Suitable for medium-sized homes, delivering reliable and even heating
-
80% AFUE Efficiency Rating – Converts 80% of fuel into usable heat, reducing energy waste
-
Two-Stage Gas Valve – Offers quiet and economical operation with two heating outputs
-
Nine-Speed ECM Circulator Motor – Enhances energy efficiency and comfort through advanced airflow control
-
SureStart® Silicon Nitride Igniter – Designed for long life and reliable ignition performance
-
Self-Diagnostic Control Board – Monitors system performance and simplifies troubleshooting
-
Low Constant Fan Speed – Improves air circulation and comfort between heating cycles
-
Quiet Two-Speed Induced Draft Blower – Reduces system noise for a more peaceful home environment
-
California Low NOx Emissions Compliant – Meets emissions standards for environmentally responsible operation
-
Not for Use in SCAQMD or SJVAPCD – Not approved for installation in certain California air quality districts
-
AHRI Certified and ETL Listed – Independently verified for safety, performance, and compliance
Cabinet Features
-
Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and noise with a durable baked-enamel finish
-
Multi-Position Installation Options – GR9T80: upflow or horizontal (left/right); GD9T80: downflow or horizontal (left/right)
-
Removable Bottom Panel – Supports side- or bottom-return air configurations
-
Convenient Service Access – Left or right side gas and electrical connections simplify setup and maintenance
-
Coil and Furnace Flush Mounting – Allows for a clean, professional installation
-
Cabinet Air Leakage ≤ 2% – Enhances efficiency and indoor air quality by minimizing conditioned air loss

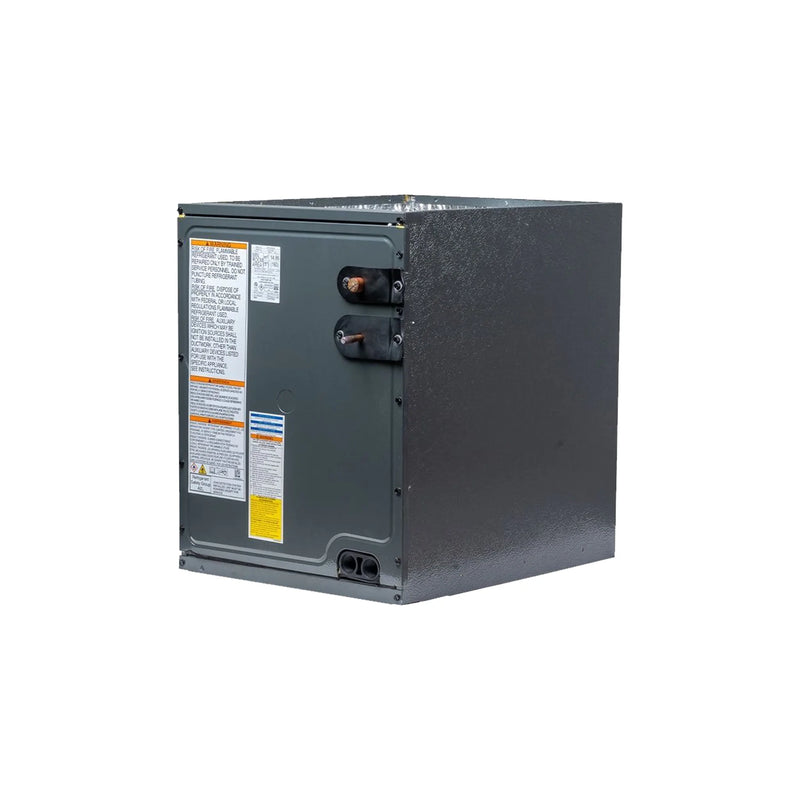

Goodman 2 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 With TXV CAPTA2422B3
The Goodman CAPTA2422B3 2 Ton Cased Evaporator Coil is engineered for long-lasting performance and optimal energy efficiency. Designed for both air conditioners and heat pump systems, this coil features an all-aluminum construction, factory-installed TXV, and a durable galvanized steel cabinet. Its compatibility with R-32 refrigerant and dual upflow/downflow orientation make it an ideal choice for residential and light commercial HVAC installations.
Built with reliability and efficiency in mind, the CAPTA Series coils are rigorously tested and backed by Goodman’s industry-leading warranty. Whether you're replacing an aging coil or designing a new system, the CAPTA2422B3 provides the flexibility, compatibility, and quality you can depend on.
Key Features
-
All-Aluminum Coil Design – Uses sine fins and grooved tubing to enhance heat transfer, reduce corrosion risk, and improve long-term durability
-
Factory-Installed Internal TXV – Provides precise refrigerant control and consistent performance in high-efficiency and variable-speed systems
-
Upflow/Downflow Installation Compatibility – Suitable for both upflow and downflow applications, simplifying system design and installation
-
Durable Galvanized Steel Cabinet – Embossed and insulated cabinet reduces air leakage and protects internal components
-
Advanced Condensate Management – Equipped with a UV-resistant, DecaBDE-free thermoplastic drain pan and foil-faced insulation to reduce moisture buildup
-
Double Pressure Tested at Factory – Each unit is pressure tested twice for maximum reliability and to prevent refrigerant leaks
-
R32 Refrigerant Compatible – Compliant with new Clean Air Act requirements and supports the transition to environmentally friendly cooling
-
10-Year Limited Parts Warranty – Backed by Goodman’s strong warranty coverage with registration and professional installation
Why Choose Goodman?
Goodman is a trusted leader in residential and light commercial HVAC systems across North America. Known for manufacturing high-performance products at an affordable price, Goodman is committed to delivering reliability, energy efficiency, and long-term value. When you choose a CAPTA Series evaporator coil, you're investing in quality components built to last.
