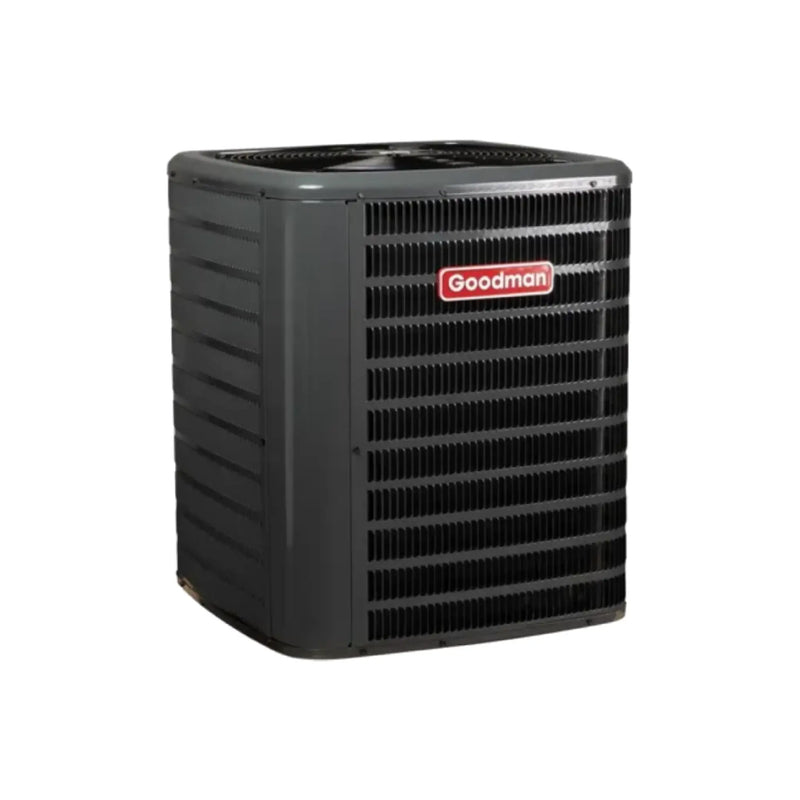

Goodman 3 Ton 14.3 SEER2 Split Air Conditioner Condenser Single-Stage R32 GLXS4BA3610
This high-performance HVAC condenser unit is designed for energy-efficient cooling, advanced diagnostics, and long-term reliability. Featuring a high-efficiency scroll compressor, Copeland CoreSense Technology, and new R32 refrigerant, it meets 2025 refrigerant standards and offers quiet, dependable operation for residential and light commercial applications.
Key Features
-
R32 Refrigerant – Environmentally responsible refrigerant that meets 2025 EPA guidelines
-
High-Efficiency Scroll Compressor – Delivers reliable performance with lower energy consumption
-
Copeland CoreSense Technology – Provides advanced protection, diagnostics, and system monitoring
-
High-Density Foam Sound Blanket – Reduces compressor noise for quieter operation
-
Pre-Charged for 15' Line Set – Factory-charged with refrigerant to simplify installation
-
Copper Tube / Enhanced Aluminum Fin Coil (5mm) – Maximizes heat transfer for improved cooling efficiency
-
Factory-Installed Filter Drier – Protects the system from moisture and contaminants
-
Sweat Connection Service Valves – Easy access to gauge ports for faster maintenance
-
Enclosed Contactor – Protects electrical components from debris and moisture
-
High-Pressure Switch – Ensures safety by shutting the system down under abnormal pressure
-
Extended-Life Capacitors – Durable components built for long-term operation
-
AHRI Certified & ETL Listed – Meets industry standards for performance and safety
Cabinet Features
-
Removable Grille-Style Top – UL 60335-2-40 compliant for safe access to internal components
-
Architectural Gray Powder-Coat Finish – Tested with 500-hour salt spray approval for weather resistance
-
Wire Fan Grille – Provides safety and durability during operation
-
Steel Coil Guard – Protects the coil from debris and potential damage

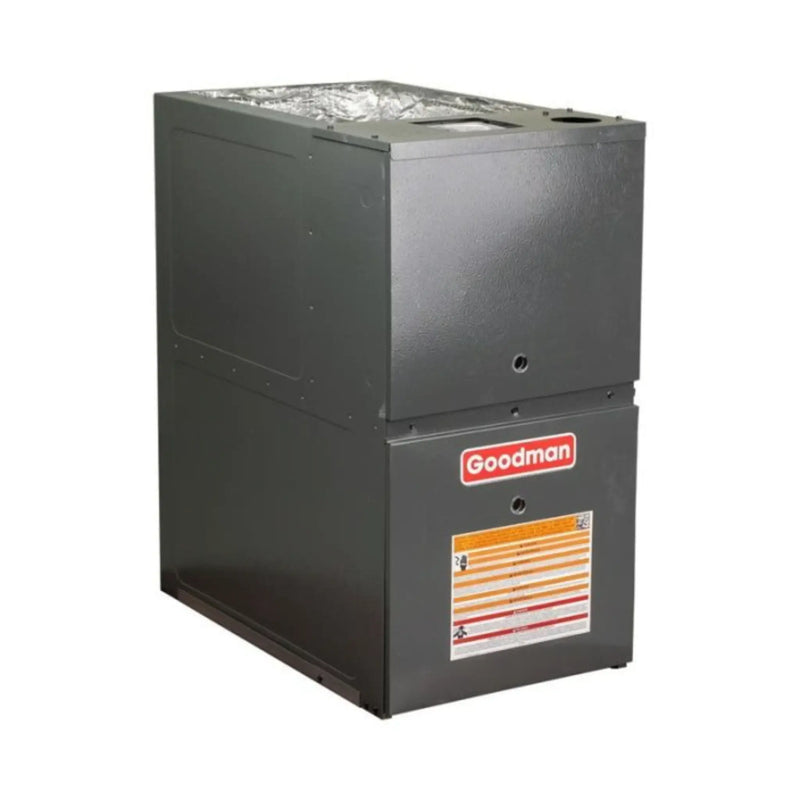

Goodman 80% 60,000 BTU Gas Furnace Low NOx 17.5"W Upflow/Horizontal GR9T800603BX
The Goodman GR9T800603BX is a two-stage, energy-efficient gas furnace designed for reliable performance and quiet operation. Rated at 60,000 BTU with 80% AFUE, this Low NOx model is ideal for small to medium homes and meets California's strict emission requirements. Equipped with a 9-speed ECM blower motor, it provides superior airflow while reducing energy consumption. Supporting both upflow and horizontal installations, the furnace can also be converted to propane with an optional LP conversion kit, offering flexible home heating solutions.
Key Features
-
Heating Capacity - 60,000 BTU input / 48,000 BTU output, ideal for small to medium homes
-
Energy Efficiency - 80% AFUE rating for lower energy bills and eco-friendly heating
-
Two-Stage Gas Valve - Enhances comfort and ensures quieter operation
-
Low NOx Compliance - Meets California emission standards for reduced environmental impact
-
ECM Blower Motor - 9-speed motor for improved airflow and energy savings
-
Hot Surface Igniter - Durable, reliable startup and lower maintenance requirements
-
Self-Diagnostic Control Board - Simplifies troubleshooting and maintenance
-
Installation Flexibility - Supports upflow or horizontal configurations
-
Fuel Options - Operates on natural gas and convertible to propane with optional kit
Goodman 3 Ton Cased Evaporator Coil 17.5" Height Horizontal R32 With TXV CHPTA3630B3
The Goodman CHPTA3630B3 3 Ton Horizontal Evaporator Coil is built for energy-efficient performance and reliability in residential HVAC systems. Designed for horizontal installations, this evaporator coil is compatible with both AC-only and heat pump condensers and comes with a factory-installed TXV kit to enhance system precision and overall performance. Engineered to support the latest R32 refrigerant requirements, this coil delivers comfort, compliance, and value.
Whether you're upgrading an older system or building a new HVAC configuration, the CHPTA3630B3 provides long-term reliability and efficient cooling performance.
Key Features
-
3 Ton Cooling Capacity – Ideal for larger residential homes needing consistent and reliable temperature control.
-
Horizontal Application Ready – Suitable for installations in horizontal furnace systems, attics, and crawlspaces.
-
R32 Refrigerant Compliant – Meets the latest environmental standards under the Clean Air Act.
-
Factory-Installed TXV Kit – Improves refrigerant metering, system efficiency, and temperature stability.
-
Aluminum Tube and Fin Coil – Lightweight and corrosion-resistant for long-lasting performance.
-
Galvanized Steel Cabinet – Embossed and insulated to prevent air leakage and protect internal coil components.
-
Antimicrobial Thermoplastic Drain Pan – Resists mold growth and helps maintain clean indoor air.
-
Split-Seam Cabinet Access – Allows for fast and easy maintenance access during service.
-
Compatible with R32 HVAC Systems – Designed for use with R32 condensers and a compatible furnace or blower (sold separately).
-
10-Year Limited Warranty – Backed by Goodman’s industry-standard warranty with proper installation and registration.
System Compatibility and Use
The Goodman CHPTA3630B3 is designed for 3-ton cooling systems and should be installed in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a blower or furnace for operation. This coil is not compatible with packaged HVAC units or as a direct replacement in one-piece air handlers.
Easy Installation and Durable Build
Featuring aluminum coil construction and a pre-installed TXV valve, this model reduces installation time and improves reliability. The insulated galvanized cabinet protects against environmental wear and energy loss, while the split-seam front panel allows technicians to quickly access the coil for service or cleaning.
Reliable Comfort and Energy Efficiency
Engineered for optimal performance, the Goodman CHPTA3630B3 ensures better refrigerant control, lower energy consumption, and consistent indoor comfort. The built-in TXV kit fine-tunes refrigerant flow, and the mold-resistant drain pan helps prevent buildup of harmful particulates—making it an excellent choice for both comfort and air quality.
