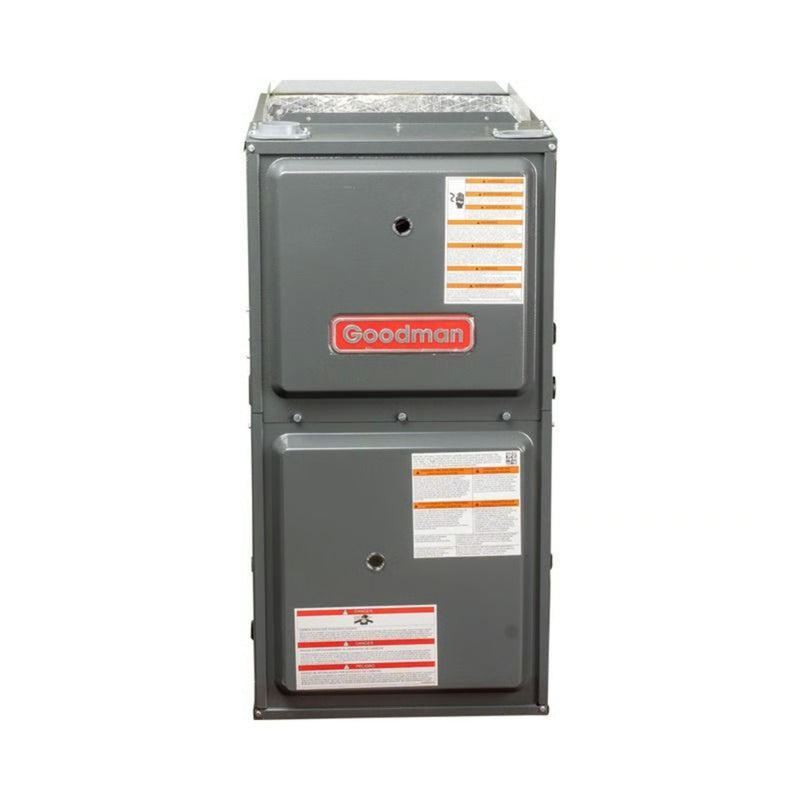

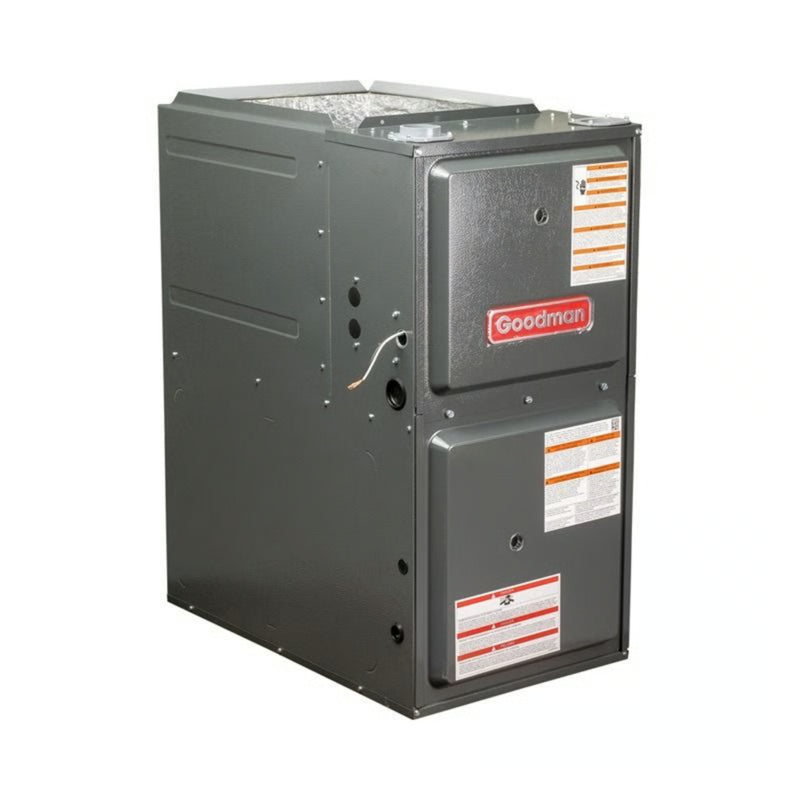

Goodman GR9S800804BX

Goodman 80% 80K BTU Gas Furnace Low NOx 17.5" Width Upflow/Horizontal R32

By Goodman | Model: GR9S800804BX | ID: 100942
✓ Manufactured in the USA
✓ No Sales Tax - in most states excluding California
✓ Manufacturer Warranty Included
✓ Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,377.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE
Product Details

Goodman 80% 80K BTU Gas Furnace Low NOx 17.5" Width Upflow/Horizontal GR9S800804BX

The Goodman GR9S800804BX Low NOx Gas Furnace offers reliable and energy-efficient heating in a compact and durable design. With an 80,000 BTU input and 80% AFUE, this single-stage furnace efficiently delivers consistent warmth while reducing energy waste. It features a 9-speed ECM blower motor for improved air circulation and quieter operation. Designed for upflow or horizontal installations, this unit provides installation flexibility and electrical efficiency. The GR9S800804BX is compliant with California Low NOx standards, helping to minimize harmful emissions while maintaining superior performance. Built with a rugged steel cabinet and a durable hot surface igniter, this Goodman furnace is engineered for long-lasting comfort and cost-saving operation.

Key Features

  • 80,000 BTU Heating Capacity – Ideal for medium-sized homes
  • 80% AFUE Efficiency – Standard efficiency rating for cost-effective heating
  • Low NOx Compliant – Meets California emission standards (excluding specific counties)
  • 9-Speed ECM Blower Motor – Enhanced airflow and reduced energy consumption
  • Single-Stage Operation – Simple on/off heating with consistent performance
  • Upflow/Horizontal Configuration – Flexible installation options
  • Durable Hot Surface Igniter – Reliable ignition with reduced maintenance
  • Heavy-Gauge Steel Cabinet – Improved durability and sound reduction
  • Convertible to LP – Compatible with propane conversion kit (sold separately)
  • Self-Diagnostic Control Board – Simplified troubleshooting and safety

This model is best suited for homes requiring a dependable, budget-friendly heating solution that meets emissions standards. Installation is quick and flexible with color-coded terminals and multiple configuration options.

View More Furnaces

Specifications

Goodman 80% 80K BTU Gas Furnace Low NOx 17.5" Width Upflow/Horizontal GR9S800804BX

Brand Goodman SKU GR9S800804BX
Weight (in lbs) 120 AHRI Certificate Number 215358056
Airflow Direction Upflow/Horizontal Exhaust Flue Requirement Metal
Product Features Low NOx, New Refrigerant Compliant Furnace Efficiency / AFUE 80%
Heating BTU 80,000 Blower Motor 9-Speed - ECM
Maximum CFM 1760 Horsepower 3/4 HP
Configuration Upflow/Horizontal Electrical 115 V. 1 Phase 60 Hz
Max Breaker Size 15 Amps Min. Breaker Size 11.3 Amps
Low NOx Low NOx Burner Stages Single
Fuel Type Propane, Natural Gas Height 33 3/8"
Width 17 1/2" Depth 28"
Warranty Lifetime Heat Exchanger and 10 Years Parts with Online Registration
Warranty

Goodman 80% 80K BTU Gas Furnace Low NOx 17.5" Width Upflow/Horizontal GR9S800804BX

Warranty Type Residential Multi-Family Commercial
Standard Warranty 5 year parts 5 year parts 5 year parts
Registered Warranty 10 year parts 10 year parts 5 year parts
Documents

Goodman 80% 80K BTU Gas Furnace Low NOx 17.5" Width Upflow/Horizontal GR9S800804BX

GR9S80 Installation Manual

GR9S80 Specifications Sheet

Goodman Furnace Warranty
