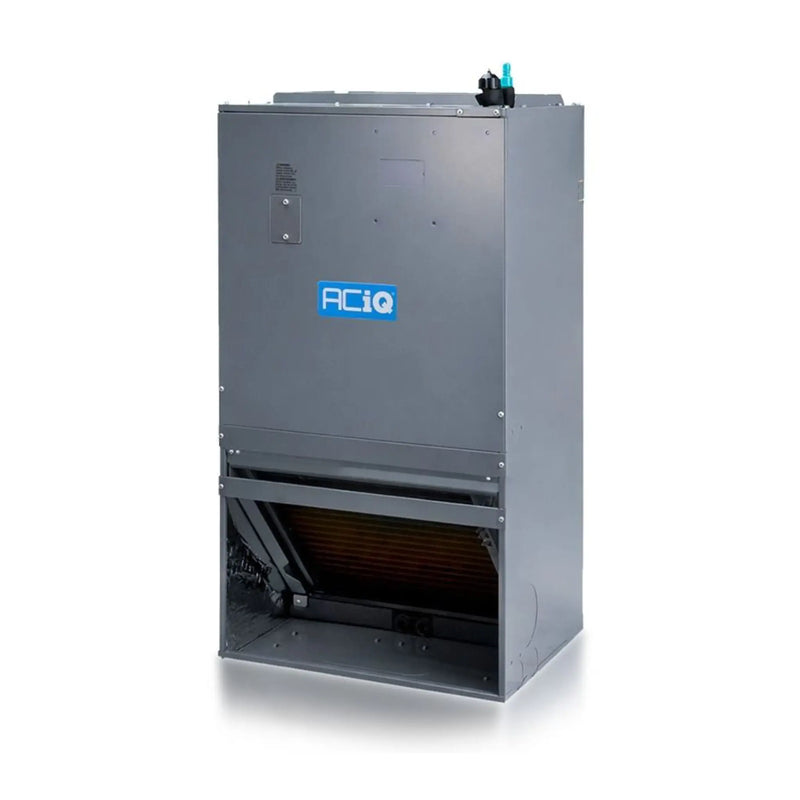

ACiQ 2.5 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow

By ACiQ | Model: ACIQ-30W-WMB | ID: 91837
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,250.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 2.5 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-30W-WMB

The ACiQ Wall Mount Ducted Air Handler is built for vertical wall or stud mounting, making it a great fit for installations where floor space is limited. Its fully insulated, galvanized-steel cabinet is designed to hold up to daily use while keeping operation quiet and efficient. Paired with a compatible ACiQ inverter condenser, this 2.5 ton air handler delivers reliable heating and cooling performance for ducted comfort systems using R454B refrigerant.

Key Features

  • Wall or stud-mountable design connects directly to existing ductwork for flexible installation
  • Compatible with R454B refrigerant for modern, environmentally-conscious system design
  • Fully adjustable TXV metering delivers precise performance in both cooling and heat pump operation
  • Direct-drive, multi-speed blower motor supplies up to 988.8 CFM of adjustable airflow for heating and cooling
  • Quiet operation rated at approximately 50.5 decibels
  • Factory-installed pull-type disconnect simplifies electrical servicing
  • Aluminum tube coil construction included standard
  • Thermoplastic drain pan with primary and secondary bottom drain connections helps prevent water damage
  • Built-in filter rack with included filter supports better indoor air quality
  • Includes a wall-hanging bracket for straightforward mounting
  • Designed to work with ACiQ's high-efficiency inverter condensers

Installation and Durability

Installing the ACiQ Wall Mount Ducted Air Handler follows the same process as installing any replacement air handler. A technician will complete the electrical, refrigerant, thermostat, and communication connections, along with tying into the return and supply ductwork. This unit is designed for vertical wall mounting in an up-flow-only configuration. It can be controlled by any 24V thermostat with two stages of heating, though the compatible ACiQ thermostat is recommended. Electric strip heat can be added for backup heating on the coldest days, and the built-in intelligent control board displays fault codes to help with troubleshooting and maintenance. The fully insulated, galvanized-steel cabinet is built for long-term durability and dependable performance.

View More Multi Tenant Air Handlers

Specifications

ACiQ 2.5 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-30W-WMB

Brand ACiQ Model ACIQ-30W-WMB
Weight 110.23 lbs Blower Motor Multi Speed Direct Drive Motor
Maximum CFM 988.8 Decibel Level 50.5 decibels
Electric Backup Heat Capabilities 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts Refrigerant R454B
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230v 1 Phase 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 6 Amps Tonnage 2.5 Ton
Height 36.5" Width 20 1/4"
Depth 15 3/4" Direction/Configuration Upflow
Warranty 7 year parts with online registration
Warranty

ACiQ 2.5 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-30W-WMB

Warranty Type Parts
Registered Warranty 7 years
Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
