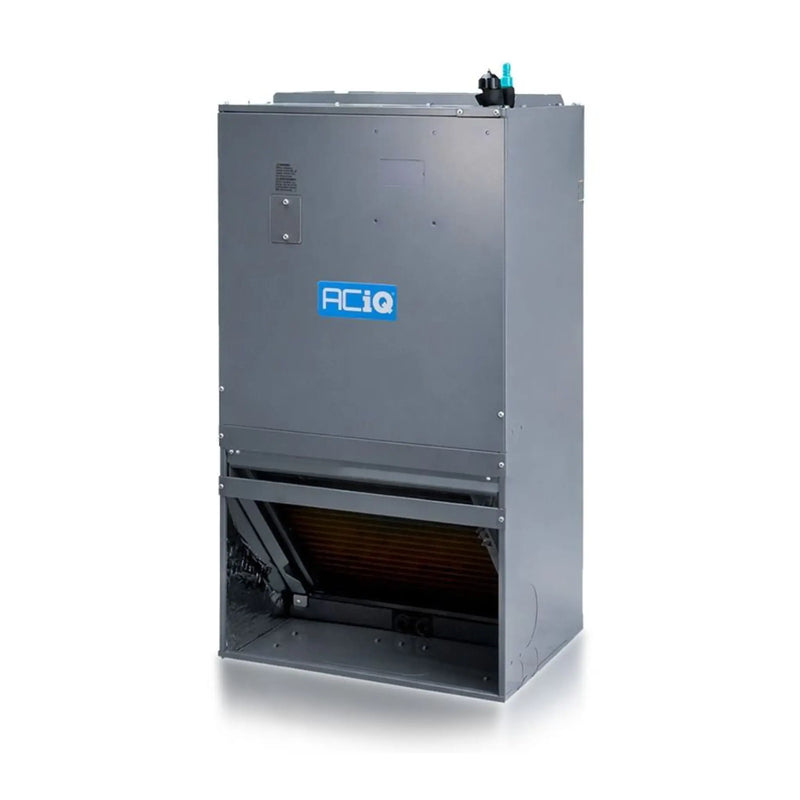

ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow

By ACiQ | Model: ACIQ-24W-WMB | ID: 91836
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,110.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-24W-WMB

The ACiQ Wall Mounted Ducted Air Handler is built for vertical wall or stud mounting, offering flexible installation options wherever ductwork access is available. Its fully insulated, galvanized-steel cabinet delivers dependable performance and long-lasting durability, making it an ideal indoor component to pair with a compatible ACiQ condenser.

Key Features

  • Ducted design connects directly to existing or new ductwork
  • Compatible with R454B refrigerant
  • Fully adjustable TXV supports both cooling and heat pump operation
  • Direct-drive, multi-speed blower motor delivers up to 824 CFM with quiet operation around 53 dBA
  • Factory-installed pull-type disconnect switch for safe, convenient servicing
  • Aluminum tube coil construction for efficient heat transfer
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack with included filter for improved indoor air quality
  • Included wall-hanging bracket simplifies installation
  • Supports optional electric heater coil kits (3, 5, 8, or 10 kW) for backup heat
  • Pairs with ACiQ's high-efficiency inverter condensers

Installation and Durability

Installation follows the same process as any replacement air handler - a qualified technician will complete the electrical, refrigerant, thermostat, and communication connections, along with the return and supply ductwork. This unit is designed for vertical wall mounting in an up-flow-only configuration. It can be controlled by any 24V thermostat with two stages of heating, though the ACiQ thermostat is recommended, and an optional electric heater coil can be added for backup heat on the coldest days. The intelligent control board displays fault codes to simplify troubleshooting and maintenance. Note: to operate as a heat pump, this air handler must be paired with a compatible condenser and related installation components, which are sold separately.

View More Multi Tenant Air Handlers

Specifications

ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-24W-WMB

Brand ACiQ Model ACIQ-24W-WMB
Weight 91.49 lbs Blower Motor Multi Speed Direct Drive Motor
Maximum CFM 824 Decibel Level 53 decibels
Electric Backup Heat Capabilities 3, 5, 8, or 10 Kilowatts (Optional) Refrigerant R454B
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz Configuration Upflow
Max Breaker Size 15 Amps Min Breaker Size 4 Amps
Tonnage 2 Ton Height 36.54"
Width 20.28" Depth 15.71"
Warranty 7 year parts with online registration
Warranty

ACiQ 2 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-24W-WMB

Warranty Type Parts
Registered Warranty 7 years
