ACiQ 3 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow

By ACiQ | Model: ACIQ-36W-WMB | ID: 91839
No Sales Tax - in most states excluding California
Manufacturer Warranty Included
Satisfaction Guarantee - or return within 30 Days
Most Products In Stock - Call or Text (833) 658-3387 for availability
$1,300.00 + FREE SHIPPING

ADD TO CART FOR BEST PRICE

Important Installation Note: This is a professional-grade, non-DIY system (including ACiQ, Goodman, Daikin, and select MrCool systems). It's recommended that installation and configuration is done by a licensed HVAC technician to ensure correct setup, safety compliance, and to maintain your manufacturer warranty coverage.

Product Details

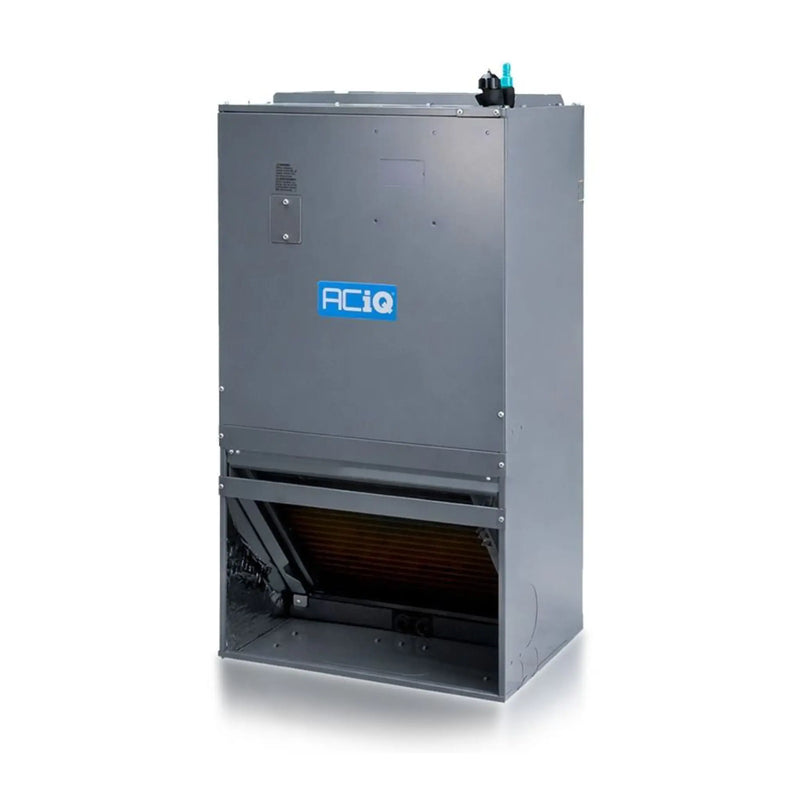

ACiQ 3 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-36W-WMB

The ACiQ 3 Ton Wall Mounted Ducted Air Handler (ACIQ-36W-WMB) is built for vertical wall or stud mounting, giving installers a flexible option for space-constrained applications. Housed in a fully insulated, galvanized-steel cabinet, it delivers dependable performance and long-term durability. This air handler is compatible with R454B refrigerant and is designed to pair with ACiQ's high-efficiency inverter condensers to form a complete ducted heating and cooling system.

Key Features

  • Connects directly to ductwork for whole-home ducted heating and cooling
  • Compatible with R454B refrigerant systems
  • Fully adjustable TXV supports precise cooling and heat pump performance
  • Multi-speed, direct-drive blower motor delivers up to 1,189 CFM with quiet 52 dBA operation
  • Factory-installed pull-type disconnect simplifies electrical servicing
  • Aluminum tube coil construction for efficient heat transfer
  • Thermoplastic drain pan with primary and secondary drain connections
  • Built-in filter rack with included filter supports improved indoor air quality
  • Includes wall-hanging bracket for straightforward wall or stud mounting
  • Optional 3, 5, 8, or 10 kW electric heater coils available for backup heat

Installation and Durability

Installing the ACiQ Wall Mounted Ducted Air Handler is similar to installing any replacement air handler. A qualified technician will handle the electrical, refrigerant, thermostat, and communication connections, along with tying into the return and supply ductwork. This unit is designed for vertical wall mounting in an up-flow-only configuration. It can be controlled by any 24V thermostat with two stages of heating, though the ACiQ-supplied thermostat is recommended. Optional electric strip heat can be added for backup on the coldest days, and the intelligent control board displays fault codes to simplify maintenance. Note: to operate as a heat pump, this air handler must be paired with a compatible condenser and other installation equipment, sold separately; to use straight electric heat, an electric heater coil is also required and available separately.

View More Multi Tenant Air Handlers

Specifications

ACiQ 3 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-36W-WMB

Brand ACiQ Model ACIQ-36W-WMB
Weight 109.57 lbs Blower Motor Multi Speed Direct Drive Motor
Maximum CFM 1189 Decibel Level 52 dBA
Electric Backup Heat Capabilities 3 kW, 5 kW, 8 kW, 10 kW (optional) Refrigerant R454B
Liquid Line 3/8" Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz Max Breaker Size 15 Amps
Min. Breaker Size 6.5 Amps Tonnage 3 Ton
Height 40" Width 22"
Depth 19" Configuration Upflow
Warranty 7 year parts with online registration
Warranty

ACiQ 3 Ton Wall Mounted Ducted Air Handler Multi-Speed 230V R454B Upflow ACIQ-36W-WMB

Warranty Type Parts
Registered Warranty 7 years
Shipping

We ship freight to the 48 contiguous states, excluding Hawaii and Alaska. Some shipping restrictions may apply. Liftgate services may incur an additional fee, which can be added at checkout.

Order Processing: Orders are processed within 1-3 business days (excluding weekends). Orders placed on Fridays will be processed the next business day. Once shipped, you’ll receive an email confirmation with tracking details. Backordered products may have longer processing times, and we will notify you of any delays.

Arrival of Goods: Freight delivery times depend on the carrier's schedule and routing. Estimated delivery times are provided at checkout. The carrier will contact you to arrange delivery, and you must be present to sign for the shipment.

Damages: Upon delivery, inspect your shipment carefully for any damage or discrepancies. Note any issues on the carrier’s delivery receipt and notify us within 24 hours. Claims made after this timeframe may be denied. Photographic proof is required for processing claims. Report damages or discrepancies immediately at [email protected].

Returns: For returns unrelated to damage, contact us at [email protected] for authorization. Return shipping costs are the customer’s responsibility, and a 20% restocking fee applies. Items must be in original packaging and condition for a refund.

Delivery Receipt: Before signing the delivery receipt, inspect the shipment for any damage. Your signature confirms acceptance of the delivery unless issues are noted.

Policy Updates: Our shipping policy may change, and updates will be communicated via our website or other channels. For any questions, contact The HVAC Store at [email protected] or call (833) 658-3387.
